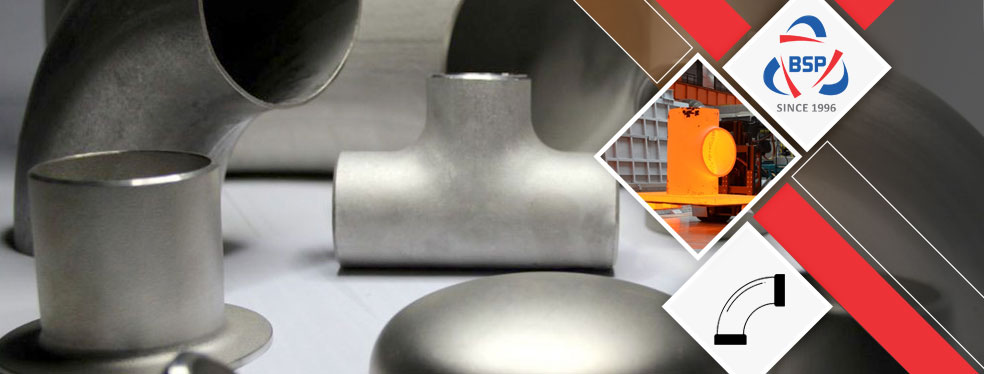

SS 347 Cross In Malaysia, 347 Stainless Steel LR Elbow, UNS S34700 Pipe Fittings, DN 1.4550 Reducer Supplier in Mumbai, India.
It is the extensively used of the damage resistant grades, which might be without problems to be had at budget friendly rate variety within the market. It is added with sheared or thermally reduce edges, in which thicknesses over eighty mm are added with mill facet as standard. Stainless Steel WNR 1.4550 Concentric Reducer Pipe Fittings. may be welded and thermal reduce at room temperature without pre-heating, all not unusual welding and slicing methods may be used. Our consciousness is at the delivery of extraordinarily specified, high-satisfactory Abraision & Wear resistant metallic plate products with Various inventory stages as consistent with consumer necessities Including Cut to length and Custom Fabrication Requirements with a rapid Solution.
It is abrasion-resistant metallic with a nominal hardness. 347 Stainless Steel Eccentric Reducer Pipe Fittings is frequently utilized in Conveyors, Dump Truck Bodies, Loading Buckets & Bulldozers, Chutes, Crushers, and so on. Especially hardened to ensure provide a protracted put on life, it gives superb cold bending and welding properties and may resist excessive effect, boasting a nominal hardness. It presents higher dent and abrasion resistance in addition to longer put on life, so that you can reap even extra savings. It is synthetic the use of greatest grade raw material to be had to make sure global high-satisfactory. It is bendable and weldable abrasion-resistant metallic, with a nominal hardness.
Material Specification Chart of SS 347 Pipe Fittings
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP347 Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 347 Buttweld Fitting |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
SS 347 Pipe Fittings Manufacturing Standards
| ASTM A403/A403M | Wrought Austenitic SS Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic SS Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of 347 SS Butt weld Pipe Fittings
- SS 347 180 Deg Elbow In Indonesia
- 347 SS 3D Butt weld Elbow
- ANSI B16.9 SS 347 5D Elbow
- 347 SS 45 Degree Elbow In Malaysia
- UNS S34700 LR Elbow
- Stainless Steel 347 90 Degree Elbow
- 1.4550 Short Radius Elbow
- SS 347 Reducing Tee In Mexico
- ANSI B16.9 SS 347 Buttweld Tee
- 1.4550 Buttweld Tees
- UNS S34700 Butt weld Tee
- SS 347 Unequal Tee In Philippines
- 347 SS Equal Tee
- Stainless Steel 347 Tee
- UNS S34700 Butt weld Cross
- ANSI B16.9 SS 347 Buttweld Cross
- Stainless Steel 347 Cross In Japan
- SS 347 Reducing Cross
- SS 347 Unequal Cross In Italy
- 347 SS Equal Cross
- 1.4550 Buttweld Cross
- ANSI B16.9 SS 347 Concentric Reducer
- Stainless Steel 347 Concentric Reducer In Spain
- 1.4550 Concentric Reducer
- 347 SS Concentric Reducer In Kuwait
- UNS S34700 Butt weld Concentric Reducer
- 347 SS Eccentric Reducer In Singapore
- Stainless Steel 347 Eccentric Reducer In Italy
- 1.4550 Eccentric Reducer
- ANSI B16.9 SS 347 Eccentric Reducer
- UNS S34700 Butt weld Eccentric Reducer
- ANSI B16.9 SS 347 Lap Joint Stub End
- 1.4550 Short Stub End
- Stainless Steel 347 Short Stub End In Spain
- UNS S34700 Butt weld Stub End
- 347 SS Long Stub End In Indonesia
- 1.4550 End Pipe Cap
- UNS S34700 Butt weld Cap
- 347 SS Pipe Cap In Mexico
- ANSI B16.9 SS 347 Pipe End Cap
- Stainless Steel 347 End Cap In Italy
- UNS S34700 Butt weld Nipple
- ANSI B16.9 SS 347 Barrel Nipple
- 1.4550 Swage Nipple
- 347 SS Pipe Nipple In Philippines
- Stainless Steel 347 Nipple In Indonesia
- 1.4550 Hot Induction Bend
- Stainless Steel 347 Long Radius Bend In Philippines
- ANSI B16.9 SS 347 Bend
- UNS S34700 Butt weld Bend
- 347 SS Piggable Bend In Malaysia
Equivalent Grades of SS 347 Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
View Thickness Table Of 347 SS Buttweld Fittings, We have Global sales network for Stainless Steel 347 LR Elbow, Wide Stockist Of Werkstoff No 1.4550 Seamless Fittings In India.
Check available Sizes of ASME SA403 WP347 Pipe Reducer, Ask For Ready Stock of UNS S34700 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 SS 347 Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 SS 347 Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 SS 347 Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
347 Stainless Steel Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.96 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Stainless Steel 347 Pipe Fittings
- 1.4550 Butt weld Fittings
- Stainless Steel 347 Piggable Bends In Indonesia
- ANSI B16.9 Stainless Steel 347 Pipe Cap
- Sch 80 Stainless Steel 347 Pipe Fittings
- SS 347 1D Elbow/3D Elbow/5D Elbow In Malaysia
- 347 SS LR Elbow Stockist
- 347 SS Long Radius Elbow
- ASME SA403 WP347 Stainless Steel Lateral Tee
- ASME B16.9 Stainless Steel 347 Buttweld Fittings
- UNS S34700 Pipe Fittings
- 347 Stainless Steel Pipe Elbow In Mexico
- ANSI B16.9 SS 347 Short Stub End
- SCH 60 347 Stainless Steel Pipe Nipples
- 347 Stainless Steel Elbow In Philippines
- SS 347 Eccentric Reducer In Japan
- 5" Nb Sch10s SS 347 90° Short Radius Elbow
- ASTM A403 WP347 45 Degree Elbow
- DIN 2605 Stainless Steel 347 Elbow Exporter
- 347 Stainless Steel Equal Cross In Italy
- ASTM A403 Stainless Steel 347 Pipe Fittings
- SS 347 Seamless Fittings In Spain
- DIN 1.4550 Swage Nipple
- ASTM A403 WP347 Buttweld Fittings
- SS 347 180° LR Return Bends
- Stainless Steel 347 Two Halve Butt weld Fittings
- 15 NB SCH 10 SS 347 90° Short Radius Elbow
- Stainless Steel 347 Long Stub End In Kuwait
- 347 SS Reducing Nipple
- Stainless Steel 347 Pipe Bend
- Stainless Steel 347 SR Elbow In Singapore
- 347 Stainless Steel Buttweld Nipple
- Stainless Steel 347 Welded Fittings In Malaysia
- SS 347 Long Radius Bend Stockholder
- 347 Stainless Steel Lap Joint Stub End In Kuwait
- 347 SS Barrel Nipple Supplier in Mumbai
- Stainless Steel 347 Buttweld Fittings In Spain
- SS 347 End Cap Distributor
- Stainless Steel SUS 347 Mandrel Pipe Bend
- 347 SS Eccentric Reducer Manufacturer
- 347 Stainless Steel Butt weld Tee In Italy
- 347 Stainless Steel Pipe Fittings Manufacturer
- Stainless Steel 347 Butt Weld Pipe Fittings
- SS 347 Two Joint Pipe Fittings In Japan
- Schedule 80 SS 347 Grade Long Stub End
- Stainless Steel 347 Reducer In Italy
- ASTM A403 WP347 SS Stub End
- 1/2” - 16” ASTM A403 WP347 Butt weld Elbow
- ASME B16.9 Schedule 10 347 Stainless Steel Elbow
Stainless Steel 347 Butt weld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
347 Stainless Steel Pipe Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
