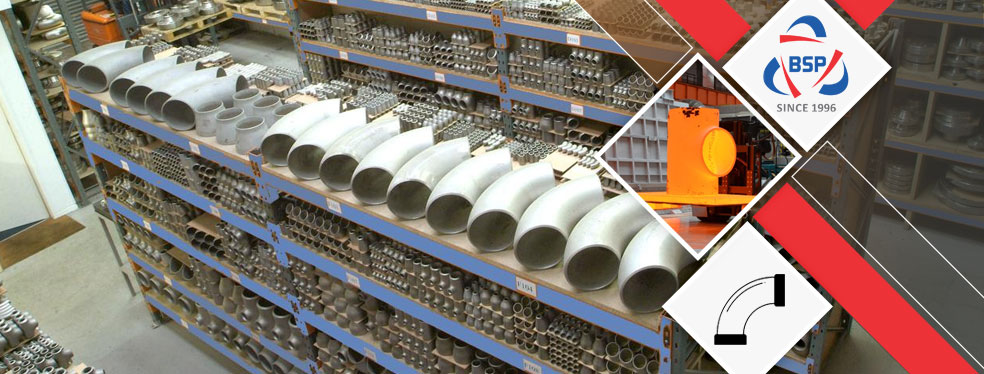

UNS S31008 Pipe Fittings, SS 310S Two Joint Pipe Fittings In Spain, DIN 1.4841 Reducer Supplier in Mumbai, India.
Manganese, silicon, nickel, and copper are introduced in these fittings to increase strength through forming strong answers in ferrite. Superior quality material and modern-day product manner are used within the fabrication of these Stainless Steel WNR 1.4841 Unequal Tee Pipe Fittings, wherein you could avail a huge collection of the identical that is furnished through us to our esteemed customers. They are normally evolved for energy - related applications regarding oil and fueloline drilling and are subjected to stresses in device parts.
We focus on production and supplying these Stainless Steel WNR 1.4845 Lateral Tee Pipe Fittings with the completing of warm rolled, cold drawn, turned, roto - rolled etc. Made up of from advanced quality materials, it's far corrosion and warmth resistant and has excessive tensile strength. Moreover, it's far preferred for traits like: Forging, Free Cutting, Naval Brass, Riveting Brass, and High Tensile Strength. Additionally, presented variety of these fittings is incredibly utilized in industrial complexes.Material Specification Chart of SS 310 / 310S Pipe Fittings
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP310 / 310S Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP310 / 310S Buttweld Fitting |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
SS 310 / 310S Pipe Fittings Manufacturing Standards
| ASTM A403/A403M | Wrought Austenitic SS Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic SS Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of 310 / 310S SS Butt weld Pipe Fittings
- Stainless Steel 310 90 Degree Elbow In Indonesia
- 310 SS 45 Degree Elbow
- SS 310S 180 Deg Elbow In Malaysia
- UNS S31000 LR Elbow
- 1.4841 Short Radius Elbow
- 310S SS 3D Butt weld Elbow
- ANSI B16.9 SS 310S 5D Elbow
- Stainless Steel 310 Tee In Mexico
- 310 SS Equal Tee
- SS 310S Unequal Tee In Philippines
- UNS S31008 Butt weld Tee
- 1.4841 Buttweld Tees
- SS 310S Reducing Tee
- ANSI B16.9 SS 310S Buttweld Tee
- Stainless Steel 310 Cross In Japan
- 310 SS Equal Cross
- SS 310S Unequal Cross In Spain
- UNS S31000 Butt weld Cross
- 1.4841 Buttweld Cross
- SS 310S Reducing Cross
- ANSI B16.9 SS 310S Buttweld Cross
- Stainless Steel 310 Concentric Reducer In Italy
- 310 SS Concentric Reducer In Kuwait
- UNS S31008 Butt weld Concentric Reducer
- 1.4845 Concentric Reducer
- ANSI B16.9 SS 310S Concentric Reducer
- Stainless Steel 310 Eccentric Reducer In Singapore
- 310S SS Eccentric Reducer In Indonesia
- UNS S31000 Butt weld Eccentric Reducer
- 1.4841 Eccentric Reducer
- ANSI B16.9 SS 310S Eccentric Reducer
- Stainless Steel 310 Short Stub End In Singapore
- 310S SS Long Stub End In Indonesia
- UNS S31008 Butt weld Stub End
- 1.4845 Short Stub End
- ANSI B16.9 SS 310S Lap Joint Stub End
- Stainless Steel 310 End Cap In Malaysia
- 310S SS Pipe Cap In Kuwait
- UNS S31000 Butt weld Cap
- 1.4841 End Pipe Cap
- ANSI B16.9 SS 310S Pipe End Cap
- Stainless Steel 310 Nipple In Singapore
- 310S SS Pipe Nipple In Indonesia
- UNS S31008 Butt weld Nipple
- 1.4841 Swage Nipple
- ANSI B16.9 SS 310 Barrel Nipple
- Stainless Steel 310 Long Radius Bend In Kuwait
- 310S SS Piggable Bend In Spain
- UNS S31000 Butt weld Bend
- 1.4841 Hot Induction Bend
- ANSI B16.9 SS 310S Bend
Equivalent Grades of SS 310 / 310S Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
View Thickness Table Of 310 SS Buttweld Fittings, We have Global sales network for Stainless Steel 310S LR Elbow, Wide Stockist Of Werkstoff No 1.4841 Seamless Fittings In India.
Check available Sizes of ASME SA 403 WP310 / 310S Pipe Reducer, Ask For Ready Stock of UNS S31008 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 SS 310 / 310S Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 SS 310S Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 SS 310 / 310S Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
310 / 310S Stainless Steel Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.96 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Stainless Steel 310 / 310S Pipe Fittings
- ASME B16.9 Schedule 10 310 Stainless Steel Elbow
- UNS S31000 Pipe Fittings
- SS 310S Seamless Fittings In Indonesia
- DIN 2605 Stainless Steel 310 Elbow Exporter
- SS 310S Long Radius Bend Stockholder
- Stainless Steel 310 Two Halve Butt weld Fittings In Malaysia
- 310 Stainless Steel Equal Cross In Mexico
- 1/2” - 16” ASTM A403 WP310S Butt weld Elbow
- 310 Stainless Steel Pipe Fittings Manufacturer
- Stainless Steel 310 Pipe Bend In Philippines
- 5" Nb Sch10s SS 310S 90° Short Radius Elbow
- ASTM A403 Stainless Steel 310 Pipe Fittings
- 310 Stainless Steel Lap Joint Stub End In Japan
- SCH 60 310 Stainless Steel Pipe Nipples
- ASME SA403 WP310 Stainless Steel Lateral Tee
- Sch 80 Stainless Steel 310 Pipe Fittings
- Schedule 80 SS 310S Grade Long Stub End
- ANSI B16.9 SS 310S Short Stub End
- Stainless Steel SUS 310 Mandrel Pipe Bend In Spain
- 1.4841 Butt weld Fittings
- DIN 1.4845 Swage Nipple
- SS 310S Eccentric Reducer In Italy
- 310S SS Reducing Nipple In Kuwait
- 310S SS Long Radius Elbow
- SS 310S 180° LR Return Bends
- SS 310S Two Joint Pipe Fittings In Singapore
- Stainless Steel 310 Piggable Bends
- 310 Stainless Steel Elbow
- Stainless Steel 310 SR Elbow
- SS 310S End Cap Distributor
- SS 310S 1D Elbow/3D Elbow/5D Elbow In Indonesia
- 310S SS Barrel Nipple Supplier in Mumbai
- ANSI B16.9 Stainless Steel 310 Pipe Cap
- Stainless Steel 310 Welded Fittings
- 15 NB SCH 10 SS 310S 90° Short Radius Elbow
- Stainless Steel 310 Reducer In Malaysia
- 310 Stainless Steel Pipe Elbow In Singapore
- ASTM A403 WP310S SS Stub End
- 310S SS Eccentric Reducer Manufacturer
- 310 Stainless Steel Buttweld Nipple In Mexico
- Stainless Steel 310 Butt Weld Pipe Fittings In Philippines
- Stainless Steel 310 Long Stub End In Japan
- 310S SS LR Elbow Stockist
- Stainless Steel 310 Buttweld Fittings In Spain
- ASME B16.9 Stainless Steel 310 Buttweld Fittings
- 310 Stainless Steel Butt weld Tee In Italy
- ASTM A403 WP310 45 Degree Elbow
- ASTM A403 WP310S Buttweld Fittings
Stainless Steel 310 Butt weld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| SS 310S | 0.08 max | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.75 max | 19.00 – 21.00 | 53.095 min |
310 / 310S Stainless Steel Pipe Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
