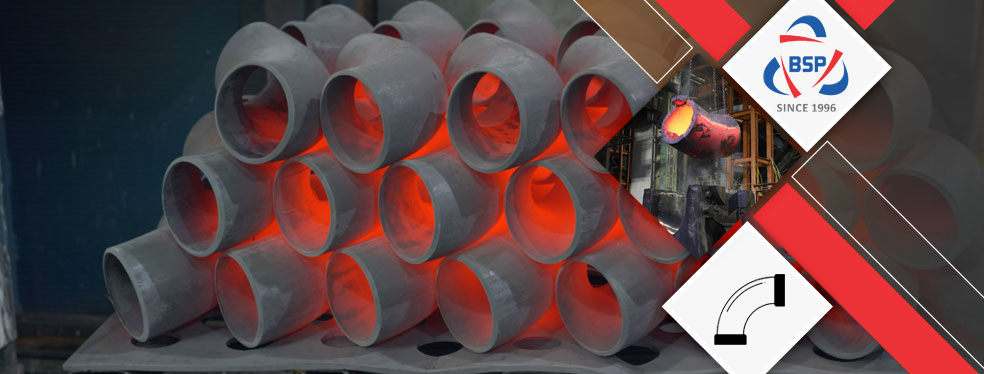

90 Degree Elbow

ANSI B16.9 Buttweld 90 Deg. Elbow, BS1640 90 Degree Elbow, 90 Deg Buttweld Elbow, Duplex Steel Butt weld 90° Elbow, ASTM A403 SS 90 Degree Long Radius Elbow Price in India.

Bagoda Steel is a known manufacturing unit of 90 Degree Elbow Pipe Fittings, which is considered for its corrosion resistance in a huge variety of competitive media. It’s an excessive molybdenum exceptional austenitic by means of having a superb resistance to chloride pitting, crevice corrosion and pressure corrosion cracking. It is appropriate to be used in pulp mill bleach plants, seawater warmness exchangers and chemical procedure equipment. The excessive molybdenum content material in Stainless Steel 90 Degree Elbow Pipe Fittings imparts resistance to localized corrosion together with pitting. The low carbon minimizes carbide precipitation at some stage in welding to hold resistance to intergranular assault in warmness-affected zones of welded joints. It's utilized in chemical processing, pollutants manipulate, pulp and paper production, commercial and municipal waste remedy and the restoration of “sour” herbal fueloline.

Industrial Product
90 Degree Elbow

Stainless Steel 90 Degree Elbow, Alloy Steel Buttweld 90° Elbow, ANSI B16.9 LR 90 Degree Elbow Dealer, Hastelloy 90° Seamless Elbow, Inconel 90 Deg. Buttweld Elbow, Black, Nickel Alloy 90 Degree Elbows, Carbon Steel LR 90 Degree Elbow, SS 90° Seamless Elbow Stockist, SCH 40, A234 WPB 90 Degree Elbow Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Applications in air pollutants manipulate consist of stack liners, ducts, dampers, scrubbers, stack-fueloline re-heaters, lovers and fan housings. In chemical processing, the alloy is used for additives such as warmness exchangers, response vessels, etc. Carbon Steel 90 Degree Elbow Pipe Fittings has splendid resistance to a huge kind of chemical procedure environments, such as: Strong oxidizers (together with ferric and cupric chlorides), Hot infected media (natural and inorganic), Chlorine, Formic and acetic acids, Acetic anhydride, Seawater and brine solutions. Moreover, it is utilized in flue fueloline desulfurization structures due to its splendid resistance to sulfur compounds and chloride ions encountered in maximum scrubbers.

The product additionally has splendid resistance to pitting and to pressure-corrosion cracking. It's one of the few materials that withstands the corrosive results of moist chlorine fueloline, hypochlorite, and chlorine dioxide. Super Duplex Steel 90 Degree Elbow Pipe Fittings is a completely austenitic superior corrosion-resistant alloy that gives resistance to each aqueous corrosion and assault at extended temperatures. It gives splendid resistance to pressure corrosion cracking and advanced resistance to localized corrosion. This alloy offers terrific resistance to fashionable corrosion, pitting, crevice corrosion, intergranular assault, and pressure corrosion cracking. It has observed numerous applications within the chemical/petrochemical processing, pollutants manipulate (flue fueloline desulfurization), power, marine, pulp and paper processing, and waste disposal industries.

Specification Chart of 90 Deg Elbow

Dimensions ASME B16.25, B16.28, MSS-SP-43, ANSI/ASME B16.9
Fabricated 90 Deg Elbow Size 1/2" (15 NB) to 48" (1200NB)
Seamless 90 Deg Elbow Size 1/2"~24"
Thickness 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Schedule SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form 90 Deg Short Radius Elbow, 90 Deg Long Radius Elbow
Type Welded, Seamless, Fabricated

Material Grades of 90 Degree Buttweld Elbow

Stainless Steel 90 Deg Elbow ASTM A403 WP316, 316L, WP304, 304L, ASTM A182 F316L, 304L, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel 90 Deg Elbow ASTM A234, ASME SA234 WP1, WP5, WP9, WP11, WP22, WP91
Super Duplex 90 Deg Elbow ASTM A815 / ASME SA815 UNS No S32750, S32950
Duplex Steel 90 Deg Elbow ASTM A815 / ASME SA815 UNS No S31803, S32205
Nickel Alloy 90 Deg Elbow ASTM B336, ASME SB336, Nickel 200 (UNS N02200), Nickel 201 (UNS N02201), Monel 400 (UNS N04400), Monel 500 (UNS N05500), Inconel 800 (UNS N08800), Inconel 825 (UNS N08825), Inconel 600 (UNS N06600), Inconel 625 (UNS N06625), Inconel 601 (UNS N06601), Hastelloy C 276 (UNS N10276), Titanium (Grade I & II), Alloy 20 (UNS N08020), Cupro Nickel 70/30, CuNi30Mn1Fe, CuNi10Fe1Mn.
Carbon Steel 90 Deg Elbow ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel 90 Deg Elbow ASTM A420 WPL3, A420 WPL6
90 Degree Elbow Dimensions

View Thickness Table Of 1/2 to 48 Inch Short Radius 90 Deg. Elbow, We have Global sales network for Sch 10 SR 90 Degree Elbow, Wide Stockist Of MSS SP43 90 Degree Elbow In India.

ASME B16.9 90 Degree Short Radius Elbow Dimensional Tolerance

NPS O.D.
D		 Center-to-End
A
1 33.4 25
1¼ 42.2 32
1½ 48.3 38
2 60.3 51
2½ 73 64
3 88.9 76
3½ 101.6 89
4 114.3 102
5 141.3 127
6 168.3 152
8 219.1 203
10 273 254
12 323.8 305
14 355.6 356
16 406.4 406
18 457 457
20 508 508
22 559 559
24 610 610

ASME B16.9 90° Long Radius Elbow Dimensional Tolerance

90 DEG LONG RADIUS ELBOWS (R = 1,5 ND) ANSI B 16.9 dimensions
inches ND mm Center to center Radius Center to end Back to face
D O A B K
1/2 15 21,34 76,20 38,10 15,87 47,62
3/4 20 26,67 57,15 28,57 11,11 42,86
1 25 33,40 76,20 38,10 22,22 55,56
1 1/4 32 42,16 95,25 47,60 25,40 69,85
1 1/2 40 48,26 114,30 57,15 28,57 82,55
2 50 60,32 152,40 76,20 34,92 106,40
2 1/2 65 73,02 190,50 95,25 44,45 131,80
3 80 88,90 228,60 114,30 50,80 158,75
3 1/2 90 101,60 266,70 133,35 57,15 184,15
4 100 114,30 304,80 152,40 63,50 209,55
5 125 141,30 381,00 190,50 79,38 261,90
6 150 168,27 457,20 228,60 95,25 312,70
8 200 219,07 609,60 304,80 127,00 414,30
10 250 273,05 762,00 381,00 158,75 517,50
12 300 323,85 914,40 457,20 190,50 619,10
14 350 355,60 1066,80 533,40 222,25 711,20
16 400 406,40 1219,20 609,60 254,00 812,80
18 450 457,20 1371,60 685,80 285,74 914,40
20 500 508,00 1524,00 762,00 317,50 1016,00
22 550 558,80 1676,40 838,20 342,90 1117,60
24 600 609,60 1828,80 914,40 381,00 1219,20
28 700 711,20 2133,60 1066,80 441,90 1422,40
Dimensions in mm.

Check available Sizes of 90 Deg Elbow, Ask For Ready Stock of 90 Degree LR Elbow, Sch 80 90 Deg. Buttweld Elbow in Mumbai, India.
