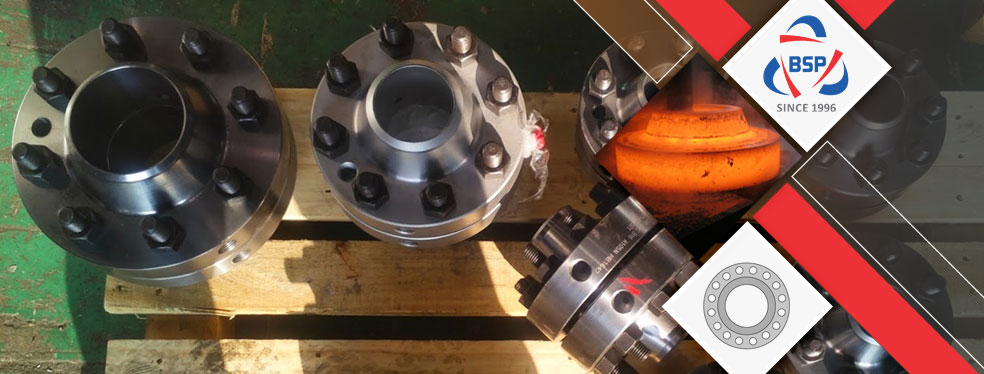

Orifice Flanges

Duplex Steel Raised Face Orifice Flange, DIN-PN16 Steel Orifice Flanges, ANSI B16.36 Orifice Flange, Orifice Raised Face Flanges, Orifice Flanges, API 6A Orifice Flange Price in India.

Bagoda Steel is a recognised supplier and distributor of Orifice Flanges, whichis a nonmagnetic, corrosion - and oxidation-resistant, nickel-primarily based totally alloy. It additionally has excessive mechanical properties at increased temperatures. Used for business furnaces; warmness-treating device which include baskets, muffles, and retorts; petrochemical and different technique device; and fueloline-turbine components.Monel Alloy Orifice Flangesis a stable-solution alloy with an exquisite mixture of excessive-temperature strength and oxidation resistance. The alloy additionally has superb resistance to an extensive variety of corrosive environment, and its miles readily formed and welded with the aid of using traditional techniques. The excessive nickel and chromium contents make the alloy proof against quite a few each decreasing and oxidizing media. The aluminum, alongside the chromium, offers oxidation resistance at excessive temperatures. Solid-answer strengthening is imparted with the aid of using the cobalt and molybdenum.

Industrial Product
Orifice Flanges

Class 150 Alloy Steel Orifice Flanges, Stainless Steel Orifice Flange, Carbon Steel Orifice Flanges, Nickel Alloy Orifice Plate Flanges, Inconel Raised Face Orifice Flange, Alloy Steel Orifice Flange, ANSI B16.36 Orifice Flanges Dealer, SS Orifice Stockist, JIS 5K Orifice Flanges, Hastelloy Orifice Raised Face Flanges Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

The mixture of excessive strength and oxidation resistance at temperatures over 1800 Degee F makes alloy an attractive material for such additives as ducting, combustion cans, and transition liner in each aircraft, and land primarily based totally fueloline turbines. Because of its resistance to excessive-temperature corrosion, the alloy is used for catalyst-grid helps within the manufacturing of nitric acid, for warmness-treating baskets, and for discount boats within the refining of molybdenum. Titanium Alloy Orifice Flanges additionally gives attractive properties for additives of power-producing plants, each fossil-fueled and nuclear. They are used mainly for shaft sleeves, bushings, valve elements, pump plungers, health practitioner blades, feed screws, knives, put on plates, and bearings.

Its outstanding strength and sturdiness within the temperature variety cryogenic to 2000 Degree F (1093 Degree C) are derived generally from the stable answer results of the refractory metals, columbium and molybdenum, in a nickel-chromium matrix. The alloy has superb fatigue strength and stress-corrosion cracking resistance to chloride ions. Some typical applications of Alloy 20 Orifice Flanges have blanketed warmness shields, furnace hardware, fueloline turbine engine ducting, combustion liners and spray bars, chemical plant hardware, and unique seawater applications.They had been used efficaciously for decades in applications concerning excessive situations of damage or put on mixed with corrosion and/or excessive temperature.

Specification Chart of Orifice Flanges

Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards ANSI/ASME B16.36, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ASME Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ASME B16.36/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most Common Types Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove
Special design

As per your drawing
AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of

ASME DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
ANSI B16.36 Class 150 Forged Flanges: -BS Flange, EN Flange, API 6A Flanges, ASME Flanges, ASME Flanges, DIN Flanges, EN1092-1 Flanges, UNI Flanges, JIS/ KS Flanges, BS4504 Flanges, GB Flanges, AWWA C207 Flanges, GOST Flanges, PSI Flangse

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ASME B16.36, ASME B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ASME : ASME B16.36, ASME B16.47(API605), MSS SP44, ASME B16.36, ASME B16.48
  • ASME B16.36, ASME B16.47, MSS SP44, ASME B16.36, ASME B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ANSI B16.36 Class 150 Forged Flanges
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Uses & Application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.

Material Grades of Orifice Flanges

Stainless Steel Orifice Flanges ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel Orifice Flanges ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Alloy Steel Orifice Flanges ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium Orifice Flanges ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5
Copper Orifice Flanges T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Orifice Flanges ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel Orifice Flanges ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.36 Class 150 Orifice Flanges
Hastelloy Orifice Flanges ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel Orifice Flanges ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 Orifice Flanges ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium Orifice Flanges 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Alloy Orifice Flanges ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex Steel Orifice Flanges S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Orifice Flanges S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Orifice Flanges ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 SMO Orifice Flanges ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic Orifice Flanges Nimonic 75, Nimonic 80A, Nimonic 90
Brass Orifice Flanges 3602 / 2604 / H59 / H62 / etc.
Other Orifice Flanges material Tin bronze, Alumunum bronze, Lead bronze
Orifice Flanges Dimensions

View Thickness Table Of ASME B16.36 Class 150, Class 300 And Class 600 Orifice Flange, We have Global sales network for Orifice Flanges, Wide Stockist Of Orifice Raised Face Flanges In India.


Dimensions of Orifice Flanges

ANSI/ASME/ASA B16.36 150lb/sq.in. Flanges SO-RF
ø D b g m J h k Holes l Kg.
1/2" 88,9 11,1 34,9 30,2 22,3 15,9 60,3 4 15,9 0,400
3/4" 98,4 12,7 42,9 38,1 27,7 15,9 69,8 4 15,9 0,700
1" 107,9 14,3 50,8 49,2 34,5 17,5 79,4 4 15,9 0,800
1 1/4" 117,5 15,9 63,5 58,8 43,2 20,6 88,9 4 15,9 1,100
1 1/2" 127,0 17,5 73,0 65,1 49,5 22,2 98,4 4 15,9 1,400
2" 152,4 19,0 92,1 77,8 62,0 25,4 120,6 4 19,0 2,200
2 1/2" 177,8 22,2 104,8 90,5 74,7 28,6 139,7 4 19,0 3,600
3" 190,5 23,8 127,0 107,9 90,7 30,2 152,4 4 19,0 4,100
3 1/2" 215,9 23,8 139,7 122,2 103,4 31,7 177,8 8 19,0 5,200
4" 228,6 23,8 157,2 134,9 116,1 33,3 190,5 8 19,0 5,600
5" 254,0 23,8 185,7 163,6 143,8 36,5 215,9 8 22,2 6,300
6" 279,4 25,4 215,9 192,1 170,7 39,7 241,3 8 22,2 7,500
8" 342,9 28,6 269,9 246,1 221,5 44,4 298,4 8 22,2 12,600
10" 406,4 30,2 323,8 304,8 276,3 49,2 361,9 12 25,4 18,500
12" 482,6 31,7 381,0 365,1 327,1 55,6 431,8 12 25,5 28,000
14" 533,4 34,9 412,7 400,0 359,1 57,1 476,2 12 28,6 36,000
16" 596,9 36,5 469,9 457,2 410,5 63,5 539,7 16 28,6 46,000
18" 635,0 39,7 533,4 504,8 461,8 68,3 577,8 16 31,7 50,000
20" 698,5 42,9 584,2 558,8 513,1 73,0 635,0 20 31,7 64,000
22" 749,3 46,0 641,2 609,6 564,4 79,4 692,1 20 34,9 72,000
24" 812,8 47,6 692,1 663,6 615,9 82,5 749,3 20 34,9 89,000
ANSI/ASME/ASA B16.36 600lb/sq.in. Flanges WN-RF
ø D b g m J h k Holes l Kg.
1/2" 95,2 14,3 34,9 38,1 22,3 22,2 66,7 4 15,9 0,800
3/4" 117,5 15,9 42,9 47,6 27,7 25,4 82,5 4 19,0 1,400
1" 123,8 17,5 50,8 54,0 34,5 27,0 88,9 4 19,0 1,600
1 1/4" 133,3 20,6 63,5 63,5 43,2 28,6 98,4 4 19,0 2,100
1 1/2" 155,6 22,2 73,0 69,8 49,5 31,7 114,3 4 22,2 3,100
2" 165,1 25,4 92,1 84,1 62,0 36,5 127,0 8 19,0 3,700
2 1/2" 190,5 28,6 104,8 100,0 74,7 41,3 149,2 8 22,2 5,400
3" 209,5 31,7 127,0 117,5 90,7 46,0 168,3 8 22,2 7,300
3 1/2" 228,6 34,9 139,7 133,3 103,4 49,2 184,1 8 25,4 8,900
4" 273,0 38,1 157,2 152,4 116,1 54,0 215,9 8 25,4 11,800
5" 330,2 44,4 185,7 188,9 143,8 60,3 266,7 8 28,6 24,500
6" 355,6 47,6 215,9 222,2 170,7 66,7 292,1 12 28,6 29,500
8" 419,1 55,6 269,9 273,0 221,5 76,2 349,2 12 31,7 43,000
10" 508,0 63,5 323,8 342,8 276,3 85,7 431,8 16 34,9 70,000
12" 558,8 66,7 381,0 400,0 327,1 92,1 488,9 20 34,9 86,000
14" 603,2 69,8 412,7 431,8 359,1 93,7 527,0 20 38,1 100,000
16" 685,8 76,2 469,9 495,3 410,5 106,4 603,2 20 41,3 142,000
18" 742,9 82,5 533,4 546,1 461,8 117,5 654,0 20 44,4 175,000
20" 812,8 88,9 584,2 609,6 513,1 127,0 723,9 24 44,4 232,000
22" 869,9 95,2 641,2 666,7 564,4 133,3 777,9 24 47,6 292,000
24" 939,8 101,6 692,1 717,5 615,9 139,7 838,2 24 50,8 330,000

ASME B16.36 Orifice Flange Weight Chart

Rated Diameter O.D. of Pipe Flange Parameter Neck Size Size of R.F. Bolts Approx. Weight
DN d1 D d5 b k h d3 r d4 f No. of
holes		 d2 KG
10 17.2 90 17.7 14 60 20 30 4 40 2 4 14 0.56
15 21.3 95 22 14 65 20 35 4 45 2 4 14 0.62
20 26.9 105 27.6 16 75 24 45 4 58 2 4 14 0.91
25 33.7 115 34.4 16 85 24 52 5 68 2 4 14 1.09
32 42.4 140 43.1 16 100 26 60 5 78 2 4 18 1.58
40 48.3 150 49 16 110 26 70 5 88 3 4 18 1.76
50 60.3 165 61.1 18 125 28 85 5 102 3 4 18 2.39
65 76.1 185 77.1 18 145 32 105 5 122 3 4 18 3.1
80 88.9 200 90.3 20 160 34 118 5 138 3 8 18 3.77
100 114.3 220 115.9 20 180 38 140 5 158 3 8 18 4.29
125 139.7 250 141.6 22 210 40 168 5 188 3 8 18 5.86
150 168.3 285 170.5 22 240 44 196 5 212 3 8 22 7.22
175 193.7 315 196.1 24 270 44 224 6 242 3 8 22 9.18
200 219.4 340 222 24 295 44 247 6 268 3 8 22 9.95
250 273 395 276 26 350 46 300 6 320 3 12 22 12.69
300 323.9 445 327 26 400 46 352 6 370 4 12 22 14.4
350 355.6 505 359 26 460 53 398 10 430 4 16 22 22.36
400 406.4 565 410 26 515 57 448 10 482 4 16 26 26.85
450 457 615 461 28 565 62 502 10 532 4 20 26 32.53
500 508 670 512 28 620 67 552 10 585 4 20 26 37.84
600 610 780 614 28 725 75 658 10 685 5 20 30 49.32
700 711 895 716 30 840 77 760 10 800 5 24 30 63.86
800 813 1015 818 32 950 84 864 10 905 5 24 33 85.19
900 914 1115 920 34 1050 88 969 10 1005 5 28 33 101.4
1000 1016 1230 1022 34 1160 92 1071 10 1110 5 28 36 119.7

Check available Sizes of Orifice Raised Face Flanges, Ask For Ready Stock of Orifice Flange, ASME/ ANSI B16.36 Orifice Flanges in Mumbai, India.
