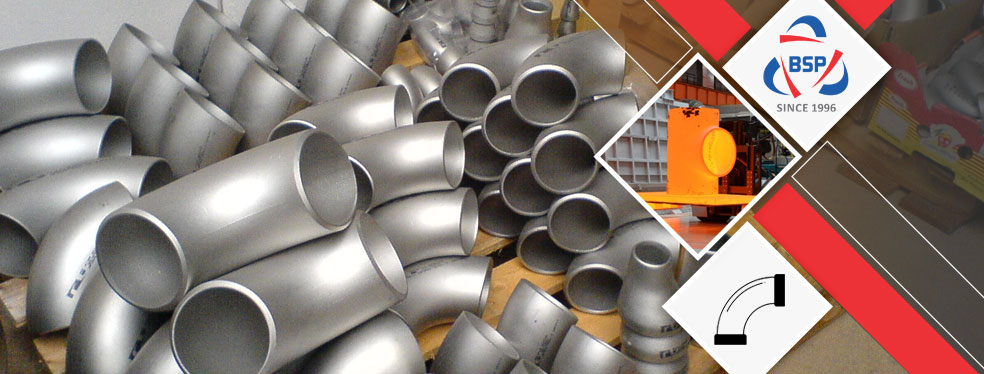

Stainless Steel 304L Pipe Fittings

ANSI B16.9 SS 304L Short Radius Elbow, ASTM A403 WP304L 90 Deg. Elbow Price in India.

Bagoda Steel is a known exporter of SS 304L Pipe Fittings, which are well matched in nature and are provided in numerous configurations.The excessive content material of chromium that is so useful to the moist corrosion resistance of these fittings is as nicely distinctly useful to their excessive temperature strength and resistance to scaling at expanded temperatures. Alloy 304L Short Radius Elbow Pipe Fittings are usually utilized in condensers, coolers and warmth exchangers in which resistance to corrosion and erosion are necessary. It has very excessive weld ability, clean for set up and excessive antifouling properties towards sea microorganisms. Hardened via way of means of heating these fittings is as much as 980 Degree C – 1065 Degree C, keeping for approximately half of hour then quenching in air or oil.

Industrial Product
Stainless Steel 304L Pipe Fittings

DIN 1.4306 Reducer, SS 304L Two Joint Pipe Fittings In Japan, UNS S30403 Pipe Fittings Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Pre – heating of these fittings at 760 Degree C – 790 Degree C can be beneficial for complicated components or the ones already hardened. We provide an in depth array of these Stainless Steel UNS S30403 Long Radius Elbow Pipe Fittings that is robust in creation and is obtainable with numerous completing standards. The welding method and post - weld warmth remedy can be taken, in which these fittings have to be pre - warmth at Two Hundred Degree C – three hundred Degree C and hold an excessive warmth enter all through welding. It is frequently used for Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, etc.

It is likewise utilized in Evaporator Tubes, Pressure Vessels, Distiller Tubes, and Pump Impellers for Oil Refining, Ferrules, and Evaporators. Stainless Steel WNR 1.4306 Elbow Pipe Fittings is being utilized in extreme corrosive situations wherein carrier lives longer than the ones of different copper alloys are desired. Like different austenitic steels in which carbon isn't controlled, it's miles vulnerable to inter - granular corrosion within the weld warmth affected zone. The chromium and nickel contents in these fittings are reduced to boom the cold work - hardening rate. This generates better tensile strengths in our fittings when cold rolled by means of having a decrease lack of ductility.

Material Specification Chart of SS 304L Pipe Fittings

Specifications ASTM A403/ ASME SA403
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP304 / 304L Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 304 / 304L Buttweld Fitting
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

SS 304L Pipe Fittings Manufacturing Standards

ASTM A403/A403M Wrought Austenitic SS Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic SS Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of 304L SS Butt weld Pipe Fittings

SS 304L Butt weld Elbow
SS 304L Butt weld Elbow
  • 304L SS 3D Butt weld Elbow
  • SS 304L 180 Deg Elbow In Italy
  • Stainless Steel 304L 90 Degree Elbow In Spain
  • 1.4306 Short Radius Elbow
  • ANSI B16.9 SS 304L 5D Elbow
  • 304L SS 45 Degree Elbow
  • UNS S30403 LR Elbow
SS 304L Butt weld Tee
SS 304L Butt weld Tee
  • 304L SS Equal Tee
  • UNS S30403 Butt weld Tee
  • Stainless Steel 304L Tee In Singapore
  • SS 304L Reducing Tee In Kuwait
  • 1.4306 Buttweld Tees
  • ANSI B16.9 SS 304L Buttweld Tee
  • SS 304L Unequal Tee
SS 304L Butt weld Cross
SS 304L Butt weld Cross
  • 1.4306 Buttweld Cross
  • UNS S30403 Butt weld Cross
  • SS 304L Unequal Cross In Indonesia
  • ANSI B16.9 SS 304L Buttweld Cross
  • SS 304L Reducing Cross
  • 304L SS Equal Cross
  • Stainless Steel 304L Cross In Singapore
SS 304L Concentric Reducer
SS 304L Concentric Reducer
  • UNS S30403 Butt weld Concentric Reducer
  • ANSI B16.9 SS 304L Concentric Reducer
  • 1.4306 Concentric Reducer
  • Stainless Steel 304L Concentric Reducer In Malaysia
  • 304L SS Concentric Reducer In Kuwait
SS 304L Eccentric Reducer
SS 304L Eccentric Reducer
  • ANSI B16.9 SS 304L Eccentric Reducer
  • 304L SS Eccentric Reducer In Mexico
  • UNS S30403 Butt weld Eccentric Reducer
  • Stainless Steel 304L Eccentric Reducer In Italy
  • 1.4306 Eccentric Reducer
SS 304L Stub End
SS 304L Stub End
  • ANSI B16.9 SS 304L Lap Joint Stub End
  • 304L SS Long Stub End In Philippines
  • UNS S30403 Butt weld Stub End
  • 1.4306 Short Stub End
  • Stainless Steel 304L Short Stub End In Spain
SS 304L Pipe End Cap
SS 304L Pipe End Cap
  • ANSI B16.9 SS 304L Pipe End Cap
  • 304L SS Pipe Cap
  • 1.4306 End Pipe Cap
  • Stainless Steel 304L End Cap In Japan
  • UNS S30403 Butt weld Cap
SS 304L Pipe Nipple
SS 304L Pipe Nipple
  • ANSI B16.9 SS 304L Barrel Nipple
  • Stainless Steel 304L Nipple In Singapore
  • 1.4306 Swage Nipple
  • 304L SS Pipe Nipple In Japan
  • UNS S30403 Butt weld Nipple
SS 304L Pipe Bend
SS 304L Pipe Bend
  • 304L SS Piggable Bend In Mexico
  • UNS S30403 Butt weld Bend
  • 1.4306 Hot Induction Bend
  • Stainless Steel 304L Long Radius Bend In Spain
  • ANSI B16.9 SS 304L Bend

Equivalent Grades of SS 304L Buttweld Fittings

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
Pipe Fittings Dimensions

View Thickness Table Of 304L SS Buttweld Fittings, We have Global sales network for Stainless Steel 304L LR Elbow, Wide Stockist Of Werkstoff No 1.4306 Seamless Fittings In India.

Check available Sizes of ASME SA 403 WP304L Pipe Reducer, Ask For Ready Stock of UNS S30403 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 SS 304L Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 SS 304L Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 SS 304L Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

304L Stainless Steel Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Stainless Steel 304L Pipe Fittings

  • SS 304L Long Radius Bend Stockholder
  • 304L SS Long Radius Elbow In Singapore
  • SS 304L Two Joint Pipe Fittings
  • ASME SA403 WP304L Stainless Steel Lateral Tee
  • Schedule 80 SS 304L Grade Long Stub End
  • 304L Stainless Steel Buttweld Nipple In Kuwait
  • 304L SS Reducing Nipple In Italy
  • 304L Stainless Steel Lap Joint Stub End In Spain
  • ASTM A403 WP304L SS Stub End
  • ANSI B16.9 Stainless Steel 304L Pipe Cap
  • Stainless Steel 304L SR Elbow In Japan
  • ASME B16.9 Stainless Steel 304L Buttweld Fittings
  • 304L SS Eccentric Reducer Manufacturer
  • DIN 2605 Stainless Steel 304L Elbow Exporter
  • ASTM A403 Stainless Steel 304L Pipe Fittings
  • Stainless Steel 304L Long Stub End In Philippines
  • Stainless Steel SUS 304L Mandrel Pipe Bend
  • SCH 60 304L Stainless Steel Pipe Nipples
  • Stainless Steel 304L Pipe Bend In Mexico
  • 304L Stainless Steel Pipe Fittings Manufacturer
  • 1/2” - 16” ASTM A403 WP304L Butt weld Elbow
  • Stainless Steel 304L Butt Weld Pipe Fittings In Malaysia
  • DIN 1.4306 Swage Nipple
  • Stainless Steel 304L Two Halve Butt weld Fittings In Philippines
  • SS 304L Eccentric Reducer In Indonesia
  • 304L Stainless Steel Pipe Elbow
  • SS 304L 180° LR Return Bends
  • Sch 80 Stainless Steel 304L Pipe Fittings
  • 304L Stainless Steel Elbow In Spain
  • 5" Nb Sch10s SS 304L 90° Short Radius Elbow
  • 1.4306 Butt weld Fittings
  • SS 304L End Cap Distributor
  • ASME B16.9 Schedule 10 304L Stainless Steel Elbow
  • Stainless Steel 304L Buttweld Fittings In Indonesia
  • SS 304L 1D Elbow/3D Elbow/5D Elbow
  • ANSI B16.9 SS 304L Short Stub End
  • Stainless Steel 304L Reducer In Malaysia
  • 304L SS Barrel Nipple Supplier in Mumbai
  • 304L Stainless Steel Butt weld Tee In Mexico
  • Stainless Steel 304L Piggable Bends In Philippines
  • SS 304L Seamless Fittings
  • 304L SS LR Elbow Stockist
  • ASTM A403 WP304L 45 Degree Elbow
  • Stainless Steel 304L Welded Fittings In Japan
  • 304L Stainless Steel Equal Cross
  • 15 NB SCH 10 SS 304L 90° Short Radius Elbow
  • UNS S30403 Pipe Fittings
  • ASTM A403 WP304L Buttweld Fittings

Stainless Steel 304L Butt weld Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 304L 0.035 max 2 max 1.0 max 0.045 max 0.03 max 18 – 20 – 8 – 13 –

304L Stainless Steel Pipe Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000, MPa – 515 Psi – 30000, MPa – 205 35 %

Export Destinations For 304L SS Butt weld Pipe Fittings

industry
