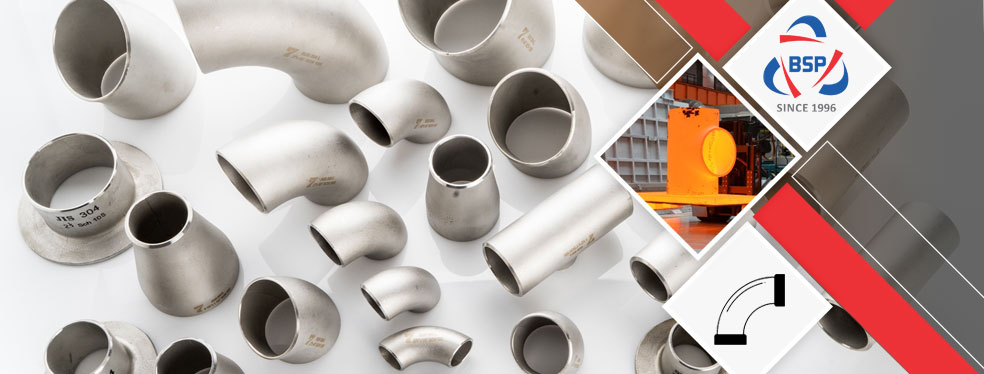

SS 317L Two Joint Pipe Fittings In Kuwait, UNS S31703 Pipe Fittings, DIN 1.4438 Reducer Supplier in Mumbai, India.
It has strength / modulus of elasticity ratios nearly two times the ones of 18-8 austenitic chrome steel, large elastic deflections in springs, and decreased pressure in line with unit displacement under the ones of chrome steel appliances. The oxide scale of these fittings needs to be eliminated automatically or chemically after treatment; consequently portions ought to be designed accordingly. Conditions below which these Stainless Steel UNS S31703 Dish Cap Pipe Fittings are vulnerable to corrosion are strongly lowering acids, alkaline peroxide solutions, and molten chloride salts. These fittings we deliver include complete traceability, proper from raw material check certificates to very last dimensional report.
It makes a specialty of disorder evolutions of commercially natural grade below ion irradiation thinking about the impact of dose and temperature (three hundred Degree C and 430 Degree C). We are one of the maximum reputed Importers and Exporters in all sorts of Metals in India, wherein we offer these fittings in extraordinary sort of thickness, specification, grades and dimensions. These fittings synthetic within the EBM manner have a microstructure along with first-rate alpha-grains, way to the fast cooling of the soften pool. Stainless Steel WNR 1.4438 Pipe Fittings is automatically and bodily equivalent, besides with the addition of the interstitial detail palladium, making it an alloy.
Material Specification Chart of SS 317L Pipe Fittings
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP317L Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 317L Buttweld Fitting |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
SS 317L Pipe Fittings Manufacturing Standards
| ASTM A403/A403M | Wrought Austenitic SS Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic SS Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of 317L SS Butt weld Pipe Fittings
- ANSI B16.9 SS 317L 5D Elbow
- 317L SS 45 Degree Elbow
- SS 317L 180 Deg Elbow
- UNS S31703 LR Elbow
- 1.4438 Short Radius Elbow
- Stainless Steel 317L 90 Degree Elbow
- 317L SS 3D Butt weld Elbow
- 317L SS Equal Tee
- Stainless Steel 317L Tee
- 1.4438 Buttweld Tees
- SS 317L Reducing Tee
- ANSI B16.9 SS 317L Buttweld Tee
- SS 317L Unequal Tee
- UNS S31703 Butt weld Tee
- ANSI B16.9 SS 317L Buttweld Cross
- Stainless Steel 317L Cross In Indonesia
- SS 317L Reducing Cross In Malaysia
- UNS S31703 Butt weld Cross
- 1.4438 Buttweld Cross
- SS 317L Unequal Cross
- 317L SS Equal Cross
- Stainless Steel 317L Concentric Reducer In Mexico
- ANSI B16.9 SS 317L Concentric Reducer
- UNS S31703 Butt weld Concentric Reducer
- 1.4438 Concentric Reducer
- 317L SS Concentric Reducer In Philippines
- ANSI B16.9 SS 317L Eccentric Reducer
- Stainless Steel 317L Eccentric Reducer In Japan
- UNS S31703 Butt weld Eccentric Reducer
- 317L SS Eccentric Reducer In Italy
- 1.4438 Eccentric Reducer
- Stainless Steel 317L Short Stub End In Spain
- 317L SS Long Stub End In Kuwait
- UNS S31703 Butt weld Stub End
- ANSI B16.9 SS 317L Lap Joint Stub End
- 1.4438 Short Stub End
- ANSI B16.9 SS 317L Pipe End Cap
- UNS S31703 Butt weld Cap
- 317L SS Pipe Cap In Indonesia
- Stainless Steel 317L End Cap In Singapore
- 1.4438 End Pipe Cap
- 1.4438 Swage Nipple
- Stainless Steel 317L Nipple In Malaysia
- UNS S31703 Butt weld Nipple
- ANSI B16.9 SS 317L Barrel Nipple
- 317L SS Pipe Nipple In Kuwait
- ANSI B16.9 SS 317L Bend
- 1.4438 Hot Induction Bend
- Stainless Steel 317L Long Radius Bend In Spain
- UNS S31703 Butt weld Bend
- 317L SS Piggable Bend In Mexico
Equivalent Grades of SS 317L Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
View Thickness Table Of 317L SS Buttweld Fittings, We have Global sales network for Stainless Steel 317L LR Elbow, Wide Stockist Of Werkstoff No 1.4438 Seamless Fittings In India.
Check available Sizes of ASME SA 403 WP317L Pipe Reducer, Ask For Ready Stock of UNS S31703 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 SS 317L Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 SS 317L Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 SS 317L Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
317L Stainless Steel Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.96 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Stainless Steel 317L Pipe Fittings
- Stainless Steel 317L Piggable Bends In Indonesia
- SS 317L Seamless Fittings In Malaysia
- SS 317L Two Joint Pipe Fittings In Mexico
- SS 317L Long Radius Bend Stockholder
- 1.4438 Butt weld Fittings
- ANSI B16.9 Stainless Steel 317L Pipe Cap
- SS 317L 180° LR Return Bends In Philippines
- 317L Stainless Steel Buttweld Nipple In Japan
- 317L SS Eccentric Reducer Manufacturer
- 1/2” - 16” ASTM A403 WP317L Butt weld Elbow
- 317L Stainless Steel Elbow
- Stainless Steel 317L Welded Fittings In Italy
- Stainless Steel 317L Pipe Bend In Spain
- ASTM A403 Stainless Steel 317L Pipe Fittings
- SS 317L Eccentric Reducer In Kuwait
- UNS S31703 Pipe Fittings
- Stainless Steel 317L Buttweld Fittings In Singapore
- 317L Stainless Steel Pipe Elbow In Indonesia
- Stainless Steel 317L SR Elbow In Malaysia
- ASTM A403 WP317L SS Stub End
- 5" Nb Sch10s SS 317L 90° Short Radius Elbow
- 15 NB SCH 10 SS 317L 90° Short Radius Elbow
- SS 317L 1D Elbow/3D Elbow/5D Elbow
- ASME B16.9 Schedule 10 317L Stainless Steel Elbow
- Stainless Steel 317L Long Stub End In Mexico
- ASTM A403 WP317L 45 Degree Elbow
- Schedule 80 SS 317L Grade Long Stub End
- DIN 2605 Stainless Steel 317L Elbow Exporter
- Stainless Steel SUS 317L Mandrel Pipe Bend In Philippines
- Stainless Steel 317L Two Halve Butt weld Fittings In Japan
- ASME B16.9 Stainless Steel 317L Buttweld Fittings
- SCH 60 317L Stainless Steel Pipe Nipples
- ASME SA403 WP317L Stainless Steel Lateral Tee
- DIN 1.4438 Swage Nipple
- 317L Stainless Steel Pipe Fittings Manufacturer
- ANSI B16.9 SS 317L Short Stub End
- 317L Stainless Steel Equal Cross In Italy
- ASTM A403 WP317L Buttweld Fittings
- 317L SS Barrel Nipple Supplier in Mumbai
- 317L SS Reducing Nipple In Spain
- 317L SS Long Radius Elbow
- Stainless Steel 317L Butt Weld Pipe Fittings In Kuwait
- SS 317L End Cap Distributor
- Sch 80 Stainless Steel 317L Pipe Fittings
- Stainless Steel 317L Reducer In Singapore
- 317L Stainless Steel Lap Joint Stub End
- 317L SS LR Elbow Stockist
- 317L Stainless Steel Butt weld Tee
Stainless Steel 317L Butt weld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
317L Stainless Steel Pipe Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
