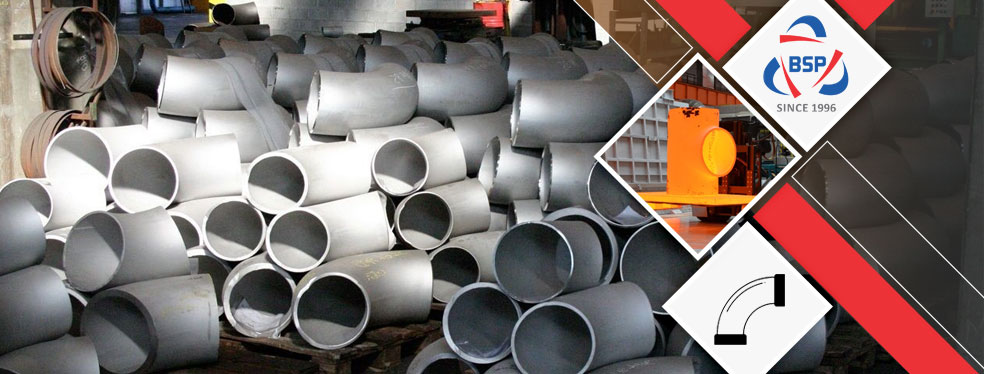

SS 316L Pipe Cap Stockist, 1.4401 Reducer, 316 Stainless Steel LR Elbow, UNS S31600 Pipe Fittings, SS 316L Two Joint Pipe Fittings, SS 316 Cross, SS 316L Equal Tee, Stainless Steel 316 Stub End Supplier in Mumbai, India.
In addition, these as nicely provide some of first-rate functions together with dimensionally stable, quality finish, high material strength, and more. We provide a huge variety of these Stainless Steel WNR 1.4401 3D Bend Pipe Fittings, which can be synthetic maintaining in thoughts the variegated necessities of our esteemed clients.
Highly skilled and skilled specialists are hired through us to fabricate the provided variety of these products, which has some of first-rate functions to provide together in company of durable, dimensionally stable, quality finish, and more. Besides, our logistics employees ensure that consignments are added at customers’ locations in the scheduled time period. We provide a huge variety of these Stainless Steel WNR 1.4404 5D Bend Pipe Fittings, in which top of the line exceptional of additives is used by our engineers to fabricate the provided variety of these products.
Material Specification Chart of SS 316 / 316L Pipe Fittings
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP316 / 316L Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP316 / 316L Buttweld Fitting |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
SS 316 / 316L Pipe Fittings Manufacturing Standards
| ASTM A403/A403M | Wrought Austenitic SS Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic SS Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 | ‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of 316 / 316L SS Butt weld Pipe Fittings
- 316L SS 3D Butt weld Elbow
- 316 SS 45 Degree Elbow
- SS 316L 180 Deg Elbow
- 1.4401 Short Radius Elbow
- ANSI B16.9 SS 316L 5D Elbow
- Stainless Steel 316 90 Degree Elbow
- UNS S31603 LR Elbow
- Stainless Steel 316 Tee
- SS 316L Reducing Tee
- 316 SS Equal Tee
- 1.4404 Buttweld Tees
- ANSI B16.9 SS 316L Buttweld Tee
- UNS S31600 Butt weld Tee
- SS 316L Unequal Tee
- SS 316L Unequal Cross
- 1.4401 Buttweld Cross
- UNS S31603 Butt weld Cross
- ANSI B16.9 SS 316L Buttweld Cross
- SS 316L Reducing Cross
- Stainless Steel 316 Cross
- 316 SS Equal Cross
- 1.4404 Concentric Reducer
- 316 SS Concentric Reducer
- UNS S31600 Butt weld Concentric Reducer
- ANSI B16.9 SS 316L Concentric Reducer
- Stainless Steel 316 Concentric Reducer
- 316L SS Eccentric Reducer
- UNS S31603 Butt weld Eccentric Reducer
- ANSI B16.9 SS 316L Eccentric Reducer
- Stainless Steel 316 Eccentric Reducer
- 1.4401 Eccentric Reducer
- 1.4404 Short Stub End
- Stainless Steel 316 Short Stub End
- UNS S31600 Butt weld Stub End
- ANSI B16.9 SS 316L Lap Joint Stub End
- 316L SS Long Stub End
- ANSI B16.9 SS 316L Pipe End Cap
- Stainless Steel 316 End Cap
- 316L SS Pipe Cap
- 1.4401 End Pipe Cap
- UNS S31603 Butt weld Cap
- UNS S31600 Butt weld Nipple
- ANSI B16.9 SS 316 Barrel Nipple
- 316L SS Pipe Nipple
- Stainless Steel 316 Nipple
- 1.4404 Swage Nipple
- ANSI B16.9 SS 316L Bend
- UNS S31603 Butt weld Bend
- Stainless Steel 316 Long Radius Bend
- 1.4401 Hot Induction Bend
- 316L SS Piggable Bend
Equivalent Grades of SS 316 / 316L Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
View Thickness Table Of 316 SS Buttweld Fittings, We have Global sales network for Stainless Steel 316L LR Elbow, Wide Stockist Of Werkstoff No 1.4401 Seamless Fittings In India.
ASTM A403 WP316 Stainless Steel Buttweld Fittings
| Seamless/ Welded 100% Radiography Tested | ||
| Products | Size | |
| ASTM A403 WP316 SS Elbow – Long Radius | ASTM A403 WP316L SS 45° Elbow | Sizes 1/2″ – 48″ |
| ASTM A403 WP316 SS Elbow – Short Radius | ASTM A403 WP316L SS Cross | |
| ASTM A403 WP316 SS 3D Elbow | ASTM A403 WP316L SS 5D Elbow | |
| ASTM A403 WP316 SS Stub End | ASTM A403 WP316L SS Pipe Bend | |
| ASTM A403 WP316 SS Fabricated Tee | ASTM A403 WP316L SS End Cap | |
| ASTM A403 WP316 SS Reducer | ASTM A403 WP316L SS Tee | |
| ASTM A403 WP316 SS Reducing Elbow | ASTM A403 WP316L SS Pipe Nipple | |
| ASTM A403 WP316 SS Reducing Cross | ASTM A403 WP316L SS Eccentric Reducer | |
| ASTM A403 WP316 SS Concentric Reducer | ASTM A403 WP316L SS Welded Fittings | |
Check available Sizes of ASME SA 403 WP316 / 316L Pipe Reducer, Ask For Ready Stock of UNS S31600 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 SS 316 / 316L Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) | Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Center to Face (inches) | Center to Center (inches) | Back to face (inches) | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 SS 316 / 316L Tee & Cap Dimensions
| Nominal Pipe Size (inches) | Outside Diameter | Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) | Center to End (inches) | Center to End (inches) | Lap Diameter (inches) | Long Length (inches) | Short Length (inches) | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 SS 316 / 316L Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size | Outside Diameter | Reducers | ||
| Reduced from (inches) | (mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
316 / 316L Stainless Steel Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.96 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Stainless Steel 316 / 316L Pipe Fittings
- 316 Stainless Steel Lap Joint Stub End
- SS 316L Two Joint Pipe Fittings
- DIN 2605 Stainless Steel 316 Elbow Exporter
- 316 Stainless Steel Butt weld Tee
- Stainless Steel 316 Welded Fittings
- 316L SS Eccentric Reducer Manufacturer
- ASTM A403 WP316L SS Stub End
- 1/2” - 16” ASTM A403 WP316L Butt weld Elbow
- Stainless Steel 316 Long Stub End
- 316L SS Long Radius Elbow
- SS 316L Eccentric Reducer
- SS 316L 1D Elbow/3D Elbow/5D Elbow
- ASME B16.9 Stainless Steel 316 Buttweld Fittings
- DIN 1.4404 Swage Nipple
- 316L SS LR Elbow Stockist
- SS 316L 180° LR Return Bends
- Stainless Steel 316 Buttweld Fittings
- SS 316L Long Radius Bend Stockholder
- 316 Stainless Steel Pipe Elbow
- 316L SS Reducing Nipple
- Stainless Steel 316 Butt Weld Pipe Fittings
- ANSI B16.9 Stainless Steel 316 Pipe Cap
- Schedule 80 SS 316L Grade Long Stub End
- ASTM A403 WP316L Buttweld Fittings
- 316 Stainless Steel Pipe Fittings Manufacturer
- SS 316L End Cap Distributor
- ASME SA403 WP316 Stainless Steel Lateral Tee
- 15 NB SCH 10 SS 316L 90° Short Radius Elbow
- Stainless Steel 316 SR Elbow
- 316L SS Barrel Nipple Supplier in Mumbai
- 1.4401 Butt weld Fittings
- ASTM A403 WP316 45 Degree Elbow
- 316 Stainless Steel Equal Cross
- SCH 60 316 Stainless Steel Pipe Nipples
- SS 316L Seamless Fittings
- Stainless Steel 316 Two Halve Butt weld Fittings
- Stainless Steel SUS 316 Mandrel Pipe Bend
- UNS S31603 Pipe Fittings
- 5" Nb Sch10s SS 316L 90° Short Radius Elbow
- 316 Stainless Steel Elbow
- ANSI B16.9 SS 316L Short Stub End
- Stainless Steel 316 Pipe Bend
- ASTM A403 Stainless Steel 316 Pipe Fittings
- Sch 80 Stainless Steel 316 Pipe Fittings
- Stainless Steel 316 Reducer
- 316 Stainless Steel Buttweld Nipple
- Stainless Steel 316 Piggable Bends
- ASME B16.9 Schedule 10 316 Stainless Steel Elbow
Stainless Steel 316 / 316L Butt weld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
316 / 316L Stainless Steel Pipe Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Export Destinations For 316 / 316L SS Butt weld Pipe Fittings
MIDDLE EAST Saudi Arabia | AFRICA Nigeria NORTH AMERICA Usa | EUROPE Russia | ASIA India SOUTH AMERICA Argentina |
