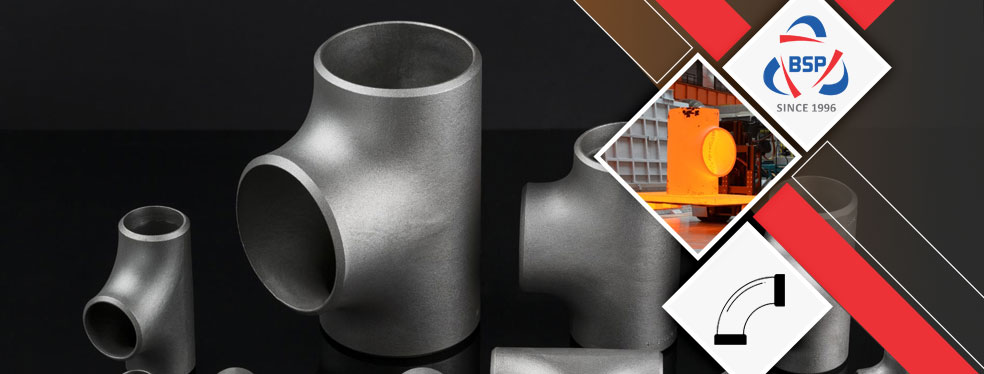

Monel K500 Pipe Fittings

Alloy K500 90 Deg. Elbow In Mexico, Monel K500 Buttweld Fittings In Spain, ANSI B16.9 Monel Alloy K500 Short Radius Elbow, ASTM B366 Monel K500 Buttweld Pipe Fittings, Monel K500 Elbow Price in India.

Bagoda Steel is a well-known supplier and exporter of Monel Alloy K500 Pipe Fittings, which are synthetic with precision the usage of excessive first-rate metals and alloys. In addition, it has a few exceptional functions together with specific dimensions, exceptional finishing, optimum material strength, and more. They are made at our extensive production unit that is ready in company of the state-of-the-art strategies and machines. Complying by means of having the customer particular requirements, they're to be had in host of specs at enterprise main prices. We provide excessive first-rate of our Monel Alloy UNS N05500 Tee Pipe Fittings, which has some of great functions to provide together with strong design, correct dimensions, clean to fit, and more. As a medium – alloy, it has advanced corrosion resistance in maximum media in comparison to the same old austenitic metal and two times the mechanical strength.

Monel K500 Pipe Fittings

Monel® Alloy K500 LR Elbow In Italy, Monel Alloy K500 Pipe Cap Stockist, Monel K500 Two Joint Pipe Fittings, Monel K500 Stub End, Monel K500 Equal Tee, Nickel Alloy K500 Cross In Philippines, 2.4375 Reducer, UNS N05500 Pipe Fittings Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

We are one of the outstanding manufacturers, providers and buyers of these Pipe Fittings, which might be getting used for becoming cause in range of applications. It consists of niobium for stabilization in contradiction of sensitization and resultants inter - granular corrosion. Restricted carbon plus columbium stabilization in our Monel Alloy WNR 2.4375 Cross Pipe Fittings allows welded fabrications for use in corrosive environments, generally without post - weld warmness treatment. For time - crucial orders, the crew are committed to processing and dispatching orders of these Pipe Fittings at the identical day, even for slicing orders on bar and sheet products.

We deliver our Pipe Fittings for a selection of applications and could assist in figuring out the appropriate quantity in your modern project. It is likewise designed for its utilization in sulphuric acid associated industries. It unearths its extensive utilization all of the manner via the chemical processing enterprise. Monel K500 Bends Pipe Fittings is regularly selected to clear up pressure corrosion cracking problems, which can also additionally possibly arise via stainless. Our guide of the power & system enterprise is pondered within the forte grades of our Pipe Fittings that we stock to guide outage & protection requirements.

Material Specification Chart of Monel K500 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

Monel K500 PIPE FITTINGS MANUFACTURING STANDARDS

ASTM B366/B366M Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM B366 – ASME SB366 Standard Specification for Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9
‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of Monel K500 Butt weld Pipe Fittings

Monel K500 Butt weld Elbow
  • Nickel Alloy K500 180 Deg Elbow
  • Monel® Alloy K500 45 Degree Elbow In Indonesia
  • 2.4375 Short Radius Elbow
  • ANSI B16.9 Monel Alloy K500 5D Elbow
  • Monel K500 90 Degree Elbow In Kuwait
  • Alloy K500 3D Butt weld Elbow
  • UNS N05500 LR Elbow
Monel K500 Butt weld Tee
  • Monel® Alloy K500 Reducing Tee
  • Monel K500 Tee In Malaysia
  • ANSI B16.9 Monel K500 Buttweld Tee
  • 2.4375 Buttweld Tees
  • UNS N05500 Butt weld Tee
  • Alloy K500 Equal Tee In Indonesia
  • Monel K500 Unequal Tee
Monel K500 Butt weld Cross
  • ANSI B16.9 Monel Alloy K500 Buttweld Cross
  • Alloy K500 Equal Cross In Mexico
  • Monel Alloy K500 Unequal Cross
  • Monel K500 Cross In Philippines
  • 2.4375 Buttweld Cross
  • Monel K500 Reducing Cross
  • UNS N05500 Butt weld Cross
Monel K500 Concentric Reducer
  • Alloy K500 Concentric Reducer In Philippines
  • UNS N05500 Concentric Reducer
  • ANSI B16.9 Monel Alloy K500 Concentric Reducer
  • 2.4375 Concentric Reducer
  • Nickel Alloy K500 Concentric Reducer In Japan
Monel K500 Eccentric Reducer
  • UNS N05500 Eccentric Reducer
  • Nickel Alloy K500 Eccentric Reducer
  • 2.4375 Eccentric Reducer
  • ANSI B16.9 Monel Alloy K500 Eccentric Reducer
  • Alloy K500 Eccentric Reducer
Monel K500 Stub End
  • 2.4375 Short Stub End
  • UNS N05500 Butt weld Stub End
  • Alloy K500 Long Stub End In Spain
  • ANSI B16.9 Monel Alloy K500 Lap Joint Stub End
  • Monel K500 Short Stub End In Italy
Monel K500 Pipe End Cap
  • Alloy K500 Pipe Cap In Japan
  • ANSI B16.9 Monel Alloy K500 Pipe End Cap
  • UNS N05500 Butt weld Cap
  • 2.4375 End Pipe Cap
  • Monel K500 End Cap In Italy
Monel K500 Pipe Nipple
  • ANSI B16.9 Monel Alloy K500 Barrel Nipple
  • 2.4375 Swage Nipple
  • UNS N05500 Butt weld Nipple
  • Monel K500 Nipple In Mexico
  • Alloy K500 Pipe Nipple In Philippines
Monel K500 Pipe Bend
  • Monel K500 Long Radius Bend In Indonesia
  • ANSI B16.9 Monel Alloy K500 Bend
  • 2.4375 Hot Induction Bend
  • UNS N05500 Butt weld Bend
  • Alloy K500 Piggable Bend In Malaysia

Equivalent Grades of Monel K500 Buttweld Fittings

Pipe Fittings Dimensions

View Thickness Table Of Monel K500 Buttweld Fittings, We have Global sales network for Monel K500 LR Elbow, Wide Stockist Of Werkstoff No 2.4375 Seamless Fittings In India.

ASTM B366 Monel K500 Buttweld Fittings

STANDARD UNS WNR.
Monel K500 N05500 2.4375
Seamless/ Welded 100% Radiography Tested
Products Size
ASTM B366 Alloy K500 Elbow – Long Radius ASTM B366 Alloy K500 45° Elbow Sizes 1/2″ – 48″
ASTM B366 Alloy K500 Elbow – Short Radius ASTM B366 Alloy K500 Cross
ASTM B366 Alloy K500 3D Elbow ASTM B366 Alloy K500 5D Elbow
ASTM B366 Alloy K500 Stub End ASTM B366 Alloy K500 Pipe Bend
ASTM B366 Alloy K500 Fabricated Tee ASTM B366 Alloy K500 End Cap
ASTM B366 Alloy K500 Reducer ASTM B366 Alloy K500 Tee
ASTM B366 Alloy K500 Reducing Elbow ASTM B366 Alloy K500 Pipe Nipple
ASTM B366 Alloy K500 Reducing Cross ASTM B366 Alloy K500 Eccentric Reducer
ASTM B366 Alloy K500 Concentric Reducer ASTM B366 Alloy K500 Welded Fittings

Check available Sizes of ASME SB 366 Monel K500 Pipe Reducer, Ask For Ready Stock of UNS N05500 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 Monel K500 Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)
Outside
Diameter
45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)
Radius
(inches)
Center to Face
(inches)
Center to Face
(inches)
Center to Center
(inches)
Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 Monel K500 Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)
Outside
Diameter
Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)
Center to End
(inches)
Center to End
(inches)
Lap Diameter
(inches)
Long Length
(inches)
Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 1 1 3/8 3 2
3/4 26.7 1.050 1 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 Monel K500 Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size
Outside
Diameter
Reducers
Reduced from
(inches)
(mm) (inches) Reduced to
(inches)
Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

Monel K500 Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Monel K500 Pipe Fittings

  • Monel Alloy K500 Long Radius Bend Stockholder
  • Monel K500 Reducer In Indonesia
  • UNS N05500 Pipe Fittings
  • DIN 2.4375 Swage Nipple
  • Nickel Alloy K500 Pipe Fittings Manufacturer
  • Monel® Alloy K500 Lap Joint Stub End
  • Monel® Alloy K500 Butt weld Tee In Malaysia
  • ASTM B366 Monel K500 Stub End
  • ASTM B366 Monel K500 Pipe Fittings
  • ANSI B16.9 Monel K500 Short Stub End
  • ASTM B366 Monel K500 Buttweld Fittings
  • Nickel Alloy K500 End Cap Distributor
  • Monel Alloy K500 Eccentric Reducer In Mexico
  • Alloy K500 Reducing Nipple In Philippines
  • ASTM B366 Alloy K500 45 Degree Elbow
  • Monel K500 Pipe Bend In Japan
  • Alloy K500 1D Elbow/3D Elbow/5D Elbow
  • Monel K500 SR Elbow
  • Monel® Alloy K500 Elbow In Italy
  • DIN 2605 Monel K500 Elbow Exporter
  • Schedule 80 Monel K500 Grade Long Stub End
  • Monel® Alloy K500 Pipe Elbow
  • ASME B16.9 Monel K500 Buttweld Fittings
  • Monel K500 Welded Fittings In Spain
  • Monel JIS NCF K500 Mandrel Pipe Bend
  • 1/2” - 16” ASTM B366 Alloy K500 Butt weld Elbow
  • ASME SB366 Monel® Alloy K500 Lateral Tee
  • K500 Monel Buttweld Nipple
  • Alloy K500 Long Radius Elbow In Kuwait
  • Monel® Alloy K500 Equal Cross
  • Monel K500 Piggable Bends In Singapore
  • Sch 80 Monel K500 Pipe Fittings
  • ASME B16.9 Schedule 10 Monel® Alloy K500 Elbow
  • SCH 60 Monel® Alloy K500 Pipe Nipples
  • Monel Alloy K500 Two Joint Pipe Fittings
  • K500 Monel 180° LR Return Bends
  • Monel K500 Buttweld Fittings In Kuwait
  • Monel K500 Two Halve Butt weld Fittings
  • Alloy K500 Eccentric Reducer Manufacturer
  • Alloy K500 Barrel Nipple Supplier in Mumbai
  • 5" Nb Sch10s Monel K500 90° Short Radius Elbow
  • Monel K500 Butt Weld Pipe Fittings In Spain
  • ANSI B16.9 Monel K500 Pipe Cap
  • 15 NB SCH 10 Monel K500 90° Short Radius Elbow
  • Alloy K500 LR Elbow Stockist
  • 2.4375 Butt weld Fittings
  • Monel K500 Long Stub End In Italy
  • Monel K500 Seamless Fittings In Philippines

Monel K500 Butt weld Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

Monel K500 Pipe Fittings Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.44 g/cm3 1350 °C (2460 °F) Psi – 115000 , MPa – 790 Psi – 160000 , MPa – 1100 20 %

Export Destinations For Monel K500 Butt weld Pipe Fittings

industry
