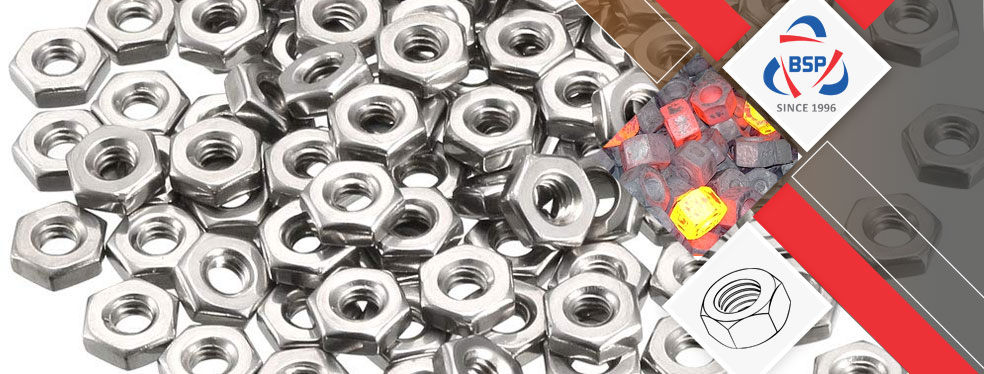

Monel 400 / K500 Hex Nuts

ASTM F467 Monel K500 Heavy Hex Nut, Alloy 400 Hex Nuts, Monel Alloy 400 Hex Nuts, Monel K500 Hex Head Nut, Monel 400 Hexagonal Nut Price in India.

Bagoda Steel is a renowned supplier and exporter of Monel 400 / K500 Hex Nuts, which offers a considerable decrease fee manner to combat put on and galling as compared to primarily based totally alloys. It has a higher fee gain than some other alloy to be had. Other materials require an extra quantity of warmth treating to elevate their hardness, wherein Monel UNS N04400 Hex Nuts is extremely good withinthe annealed condition. However, enjoy suggests that during a put on system, a galling or seizure failure takes place first, accompanied by means of having the aid of using dimensional loss because of put on, and ultimately corrosion. Galling and put on should be the primary issues of the layout engineer.

Industrial Product
Monel 400 / K500 Hex Nuts

Alloy 400 Finished Hex Nut Stockist, ASTM F467 Monel K500 Machine Hex Nut, 2.4360 Hex Nuts, Alloy K500 Hexagonal Nylon Lock Nut, UNS N04400 Hex Flange Nut, Monel 400 Industrial Hex Nut, Monel® Alloy K500 Hex Jam Nuts, Nickel Alloy 400 Long Hex Nuts Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Although the overall corrosion resistance isn't always pretty as appropriate, Monel WNR 2.4360 Hex Nuts does provide higher chloride pitting resistance, strain corrosion cracking resistance and crevice corrosion resistance in laboratory conditions. Corrosion assessments aren't typically accomplished by means ofits High Strength.Its uniform corrosion resistance is higher than stainless in maximum environments. Applications the usage of these Monel UNS N05500 Hex Nuts are valve stems, seats, and trim, fastening systems, screening, pins, bushings and curler bearings, pump shafts and rings. Other makes use of consist of put on plates, rails guides, and bridge pins.It is used in fastener galling, where it is able to common meeting and disassembly, permitting extra use of the fastener earlier than the threads are torn up, additionally enables to do away in company of corroded or frozen fasteners.

It is used in an automotive valves, where it can resist fueloline temperatures of upto 1500°F.It is used to make certain a higher healthy of components (nearer tolerance, non-lubricated) and longer lasting. Monel WNR 2.4375 Hex Nuts offers higher corrosion, galling-resistance, low temperature toughness, & excessive charpy values at sub-zero temps as compared to the steels typically used. Chloride pitting resistance is advanced to that of kind stainless, and so it offers extremely good excessive temperature oxidation resistance and occasional temperature impact.

Material Specification Chart of Monel 400 / K500 Hex Nuts

Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length 3 mm to 200 mm
Hex Nuts UNF, BSW, BSF, METRIC, UNC, or as required
Standard DIN : DIN 934, DIN 931, DIN 970, DIN 933
UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
ISO : JIS standards, ISO 4033, ISO 4032,
ANSI – American National Standards Institute
ASME B18.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Dimensions DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive Six-Lobe,Phillips,Phillips/Slot, Slotted etc
Surface Coating Ptfe Coated Nuts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating
Finishing Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide

Various Types Of Monel 400 / K500 Hex Nuts

Monel 400 / K500 Hex Jam Nut
Monel 400 / K500 Hex Jam Nut
  • Alloy K500 Hex Jam Nut
  • Nickel Alloy 400 Hex Jam Nut
  • 2.4360 Hex Jam Nuts
  • Monel 400 Heavy Hex Jam Nuts
  • UNS N05500 Hex Jam Nuts
Monel 400 / K500 Heavy Hex Nuts
Monel 400 / K500 Heavy Hex Nut
  • UNS N04400 Heavy Hex Nuts
  • Monel 400 Heavy Hex Nuts
  • 2.4375 Heavy Hex Nuts
  • Monel Alloy 400 Heavy Hex Nut
  • Nickel Alloy K500 Heavy Hex Nut
Monel 400 / K500 Hex Flange Nuts
Monel 400 / K500 Hex Flange Nut
  • Monel Alloy 400 Hex Flange Nut
  • UNS N05500 Hex Flange Nut
  • 2.4375 Hex Flange Nuts
  • Alloy K500 Hex Flange Nut
  • Monel K500 Flange Hex Nuts
Monel 400 / K500 Slotted Hex Nuts
Monel 400 / K500 Slotted Hex Nut
  • 2.4375 Beveled Slotted Hex Nut
  • Alloy 400 Slotted Hex Nut
  • UNS N04400 Slotted Hex Nuts
  • Nickel Alloy 400 Slotted Hex Nuts
  • Monel Alloy K500 Slotted Hex Nuts
Monel 400 / K500 Machine Hex Nut
Monel 400 / K500 Machine Hex Nut
  • Alloy K500 Machine Hex Nuts
  • UNS N05500 Machine Hex Nuts
  • 2.4360 Machine Hex Nuts
  • Nickel Alloy 400 Machine Hex Nut
  • Monel Alloy 400 Machine Hex Nut
Monel 400 / K500 Long Hex Nuts
Monel 400 / K500 Long Hex Nut
  • Nickel Alloy K500 Long Hex Nuts
  • Alloy K500 Coupling Hex Nuts
  • 2.4360 Hex Coupling Nuts
  • UNS N04400 Long Hex Nuts
  • Monel Alloy 400 Long Hex Nuts

Equivalent Grades of Monel 400 / K500 Hex Nuts

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe
Monel K500 2.4375 N05500 – – – – –
Hex Nuts Dimensions

View Size Table Of Monel 400 Hex Nuts, We have Global sales network for Monel K500 Heavy Hex Nuts, Wide Stockist Of Werkstoff No 2.4360 Hex Head Nuts, Industrial Hex Nuts In India.

Dimensions of Monel 400 / K500 Hex Nuts

Nominal
Size		 Basic
Major
Diameter
of Thread		 F G H H1 Maximum Runout of Bearing
Surface to Thread Axis, FIM
Width Across
Flats		 Width Across
Corners		 Thickness Hex
Nuts		 Thickness Jam
Nuts		 Hex Nuts Hex Jam
Nuts
Min. Max. Min. Max. Min. Max. Min. Max. Specified Proof
Load
Up to
150,000
psi		 150,000
psi and
Greater		 All
Strength
Levels
1/4 0.2500 0.428 0.438 0.488 0.505 0.212 0.226 0.150 0.163 0.015 0.010 0.015
5/16 0.3125 0.489 0.500 0.557 0.577 0.258 0.273 0.180 0.195 0.016 0.011 0.016
3/8 0.3750 0.551 0.563 0.628 0.650 0.320 0.337 0.210 0.227 0.017 0.012 0.017
7/16 0.4375 0.675 0.688 0.768 0.794 0.365 0.385 0.240 0.260 0.018 0.013 0.018
1/2 0.5000 0.736 0.750 0.840 0.866 0.427 0.448 0.302 0.323 0.019 0.014 0.019
9/16 0.5625 0.861 0.875 0.982 1.010 0.473 0.496 0.301 0.324 0.020 0.015 0.020
5/8 0.6250 0.922 0.938 1.051 1.083 0.535 0.559 0.363 0.387 0.021 0.016 0.021
3/4 0.7500 1.088 1.125 1.240 1.299 0.617 0.665 0.398 0.446 0.023 0.018 0.023
7/8 0.8750 1.269 1.312 1.447 1.516 0.724 0.776 0.458 0.510 0.025 0.020 0.025
1 1.0000 1.450 1.500 1.653 1.732 0.831 0.887 0.519 0.575 0.027 0.022 0.027
1-1/8 1.1250 1.631 1.688 1.859 1.949 0.939 0.999 0.579 0.639 0.030 0.025 0.030
1-1/4 1.2500 1.812 1.875 2.066 2.165 1.030 1.094 0.687 0.751 0.033 0.028 0.033
1-3/8 1.3750 1.994 2.062 2.273 2.382 1.138 1.206 0.747 0.815 0.036 0.031 0.036
1-1/2 1.5000 2.175 2.250 2.480 2.598 1.245 1.317 0.808 0.880 0.039 0.034 0.039
1-5/8 1.6250 2.35 2.43 2.679 2.805 1.364 1.416 0.868 0.944 0.044 0.038 0.044
1-3/4 1.7500 2.538 2.625 2.893 3.031 1.460 1.540 0.929 1.009 0.048 0.041 0.048
1-7/8 1.8750 2.722 2.813 3.103 3.247 1.567 1.651 0.989 1.073 0.051 0.044 0.051
2 2.0000 2.900 3.000 3.306 3.464 1.675 1.763 1.050 1.138 0.055 0.047 0.055
2-1/4 2.2500 3.263 3.375 3.719 3.897 1.890 1.986 1.155 1.267 0.061 0.052 0.061
2-1/2 2.5000 3.625 3.750 4.133 4.330 2.105 2.209 1.401 1.427 0.068 0.058 0.068
2-3/4 2.7500 3.998 4.125 4.546 4.763 2.319 2.431 1.522 1.556 0.074 0.064 0.074
3 3.0000 4.350 4.500 4.959 5.196 2.534 2.654 1.643 1.685 0.081 0.070 0.081
3-1/4 3.2500 4.713 4.875 5.373 5.629 2.749 2.877 1.748 1.814 0.087 0.075 0.087
3-1/2 3.5000 5.075 5.250 5.786 6.062 2.964 3.100 1.870 1.943 0.094 0.081 0.094
3-3/4 3.7500 5.438 5.625 6.199 6.495 3.178 3.322 1.990 2.072 0.100 0.087 0.100
4 4.0000 5.800 6.000 6.612 6.928 3.393 3.545 2.112 2.201 0.107 0.093 0.107

Dimensions of Monel 400 / K500 Heavy Hex Nuts & Heavy Hex Jam Nuts

Nominal Size Basic Major
Diameter
of Thread		 F G H H1 Maximum Runout of
Bearing Surface to Thread
Axis, FIM
Width Across Flats Width Across
Corners		 Thickness Heavy Hex
Nuts		 Thickness Heavy Hex
Jam Nuts		 Heavy Hex Nuts Heavy
Hex
Jam
Nuts
Specified Proof Load
Basic Min. Max. Min. Max. Basic Min. Max. Basic Min. Max. Up to
150,000
psi		 150,000
psi and
Greater		 All Strength
Levels
1/4 0.2500 1/2 0.488 0.500 0.556 0.577 15/64 0.218 0.250 11/64 0.156 0.188 0.017 0.011 0.017
5/16 0.3125 9/16 0.546 0.562 0.622 0.650 19/64 0.280 0.314 13/64 0.186 0.220 0.020 0.012 0.020
3/8 0.3750 11/16 0.669 0.688 0.763 0.794 23/64 0.341 0.377 15/64 0.216 0.252 0.021 0.014 0.021
7/16 0.4375 3/4 0.728 0.750 0.830 0.866 27/64 0.403 0.441 17/64 0.247 0.285 0.022 0.015 0.022
1/2 0.5000 7/8 0.850 0.875 0.969 1.010 31/64 0.464 0.504 19/64 0.277 0.317 0.023 0.016 0.023
9/16 0.5625 15/16 0.909 0.938 1.037 1.083 35/64 0.526 0.568 21/64 0.307 0.349 0.024 0.017 0.024
5/16 0.6250 1-1/16 1.031 1.062 1.175 1.227 39/64 0.587 0.631 23/64 0.337 0.381 0.025 0.018 0.025
3/4 0.7500 1-1/4 1.212 1.250 1.382 1.443 47/64 0.710 0.758 27/64 0.398 0.446 0.027 0.020 0.027
7/8 0.8750 1-7/16 1.394 1.438 1.589 1.660 55/64 0.833 0.885 31/64 0.458 0.510 0.029 0.022 0.029
1 1.0000 1-5/8 1.575 1.625 1.796 1.876 63/64 0.956 1.012 35/64 0.519 0.575 0.031 0.024 0.031
1-1/8 1.1250 1-13/16 1.756 1.812 2.002 2.093 1-7/64 1.079 1.139 39/64 0.579 0.639 0.033 0.027 0.033
1-1/4 1.2500 2 1.938 2.000 2.209 2.309 1-7/32 1.187 1.251 23/32 0.687 0.751 0.035 0.030 0.035
1-3/8 1.3750 2-3/16 2.119 2.188 2.416 2.526 1-11/32 1.310 1.378 25/32 0.747 0.815 0.038 0.033 0.038
1-1/2 1.5000 2-3/8 2.300 2.375 2.622 2.742 1-15/32 1.433 1.505 27/32 0.808 0.880 0.041 0.036 0.041
1-5/8 1.6250 2-9/16 2.481 2.562 2.828 2.959 1-19/32 1.556 1.632 29/32 0.868 0.944 0.044 0.038 0.044
1-3/4 1.7500 2-3/4 2.662 2.750 3.035 3.175 1-23/32 1.679 1.759 31/32 0.929 1.009 0.048 0.041 0.048
1-7/8 1.8750 2-15/16 2.844 2.938 3.242 3.392 1-27/32 1.802 1.886 1-1/32 0.989 1.073 0.051 0.044 0.051
2 2.0000 3-1/8 3.025 3.125 3.449 3.608 1-31/32 1.925 2.013 1-3/32 1.050 1.138 0.055 0.047 0.055
2-1/4 2.2500 3-1/2 3.388 3.500 3.862 4.041 2-13/64 2.155 2.251 1-13/64 1.155 1.251 0.061 0.052 0.061
2-1/2 2.5000 3-7/8 3.750 3.875 4.275 4.474 2-29/64 2.401 2.505 1-29/64 1.401 1.505 0.068 0.058 0.068
2-3/4 2.7500 4-1/4 4.112 4.250 4.688 4.907 2-45/64 2.647 2.759 1-37/64 1.522 1.634 0.074 0.064 0.074
3 3.0000 4-5/8 4.475 4.625 5.102 5.340 2-61/64 2.893 3.013 1-45/64 1.643 1.763 0.081 0.070 0.081
3-1/4 3.2500 5 4.838 5.000 5.515 5.774 3-3/16 3.124 3.252 1-13/16 1.748 1.876 0.087 0.075 0.087
3-1/4 3.5000 5-3/8 5.200 5.375 5.928 6.207 3-7/16 3.370 3.506 1-15/16 1.870 2.006 0.094 0.081 0.094
3-3/4 3.7500 5-3/4 5.562 5.750 6.341 6.640 3-11/16 3.616 3.760 2-1/16 1.990 2.134 0.100 0.087 0.100
4 4.0000 6-1/4 5.925 6.125 6.755 7.073 3-15/16 3.862 4.014 2-3/16 2.112 2.264 0.107 0.093 0.107

Ready Stock Monel 400 / K500 Hex Nuts

  • Monel 400 Industrial Hex Nuts
  • Nickel Alloy K500 Heavy Hex Nuts Distributor
  • Nickel Alloy 400 Heavy Hex Nuts
  • Monel 400 Coupling Nuts
  • Alloy 400 Nylon Insert Lock Nuts
  • Monel K500 Hex Nuts Manufacturer
  • Monel 400 Hex Nut Manufacturer
  • ASTM F467 Alloy K500 Hex Round Nut
  • Nickel Alloy K500 Long Hex Nut
  • Nickel Alloy 400 Hexagon Nuts
  • ASME SF467 Monel 400 Hexagon Nut Supplier in Mumbai
  • Nickel Alloy K500 Slotted Hex Nuts
  • Monel K500 Hexagonal Nylon Lock Nut
  • 2.4375 Thin Hex Nuts
  • Monel 400 Industrial Hex Nuts Exporter
  • Monel K500 Hex Nuts
  • UNS N05500 Hex Nuts
  • Monel® Alloy 400 Slotted Hex Nuts
  • Monel K500 Hex Machine Nut Stockist
  • Monel 400 Finished Hex Nuts
  • Monel Alloy 400 Hexagonal Nylon Lock Nut
  • ASME SF467 Heavy Hex Nuts
  • DIN 2.4360 Hex Nuts
  • Nickel Alloy 400 Semi-Finished Hex Nuts
  • Monel® Alloy 400 Self Locking Hex Nuts
  • Monel K500 Flanged Hex Nuts Stockholder
  • Monel 400 Machine Hex Nuts
  • Alloy 400 Hex Flange Nut
  • Monel® Alloy 400 Heavy Hexagon Nuts
  • Monel K500 Hex Head Nut
  • Monel Alloy K500 Heavy Hex Jam Nuts
  • Alloy K500 Heavy Hex Nuts
  • Monel 400 Serrated Hex Flange Nut
  • Nickel Alloy K500 Hex Socket Nut
  • K500 Monel Alloy Hex Sleeve Nuts
  • Alloy 400 Hex Jam Nuts

Monel Alloy 400 / K500 Hex Nuts Chemical Composition

Grade C Mn Si S Cu Fe Ni
Monel 400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

Alloy 400 / K500 Hex Nuts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %
Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %
