LTCS A420 WPL3 Reducer In Italy, LTCS A420 WPL3 LR Elbow In Philippines, LTCS A420 Carbon Steel Stub End, LTCS A420 WPL3 Pipe Cap Stockist, LTCS A420 WPL6 Equal Tee Supplier in Mumbai, India.
The aggregate stainless shape and excessive nitrogen content material offer considerably higher strength degrees than different stainless-steel. Often a lighter gauge may be utilized, at the same time as retaining the same strength as a stainless-steel collection fabrication. The resultant weight financial savings in these ASTM A420 LTCS WPL6 Short Radius Elbow Pipe Fittings can dramatically lessen the material and fabrication fees of a component. Its super overall performance, caused call for in a much wider variety of product bureaucracy and the improvement of wrought product bureaucracy. The corrosion resistance and strength properties have caused its massive adoption in quite number industries.
It is frequently utilized in oil and fueloline applications encompass process, seawater, firewater and subsea pipework systems, with related risers, manifolds, stress vessels, valves and warmth exchangers. Applications in different industries encompass pollutants manage gadget including flue fueloline desulfurization gadget (FGD), etc. ASME SA 420 LTCS WPL3 Long Radius Elbow Pipe Fittings also are utilized in pulp and paper, energy generation, chemical, pharmaceutical, desalination, mining, metallurgical and marine industries. It promotes the improvement of a non-stop subscale, which in flip slows similarly oxide growth. We offer these pipe fittings which can be diagnosed for his or her remarkable overall performance and are made from qualitative raw material.
Material Specification Chart of LTCS A420 WPL3 / WPL6 Pipe Fittings
| Specifications | ASTM A420 / ASME SA420 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A420 Gr WPL Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A420 Gr WPL Buttweld Fitting |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
LTCS A420 WPL3 / WPL6 Pipe Fittings Manufacturing Standards
| ASTM A420/A420M | Wrought Austenitic SS Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM A420 – ASME SA420 | Standard Specification for Wrought Austenitic SS Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of ASTM A420 Gr WPL weld Pipe Fittings
- LTCS A420 WPL3 LR Elbow In Spain

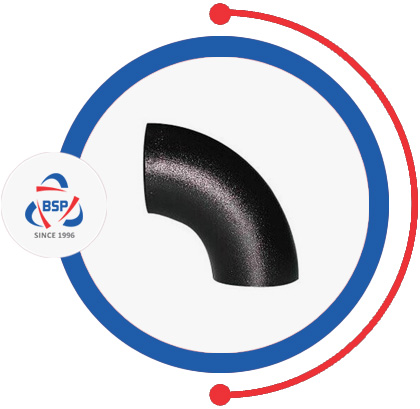

- LTCS A420 WPL6 45 Degree Elbow
- ASTM A420 LTCS A420 WPL3 Short Radius Elbow
- LTCS A420 Carbon Steel 180 Deg Elbow
- LTCS A420 WPL6 90 Degree Elbow In Kuwait
- ANSI B16.9 LTCS A420 Gr WPL 5D Elbow
- LTCS A420 WPL3 3D Butt weld Elbow
- LTCS A420 WPL3 3D Butt weld Elbow In Indonesia
- ASTM A420 LTCS A420 WPL3 Short Radius Elbow
- LTCS A420 Carbon Steel 180 Deg Elbow
- LTCS A420 WPL3 LR Elbow In Malaysia
- LTCS A420 WPL6 45 Degree Elbow
- ANSI B16.9 LTCS A420 Gr WPL 5D Elbow
- LTCS A420 WPL6 90 Degree Elbow
- LTCS A420 WPL3 Unequal Cross In Philippines

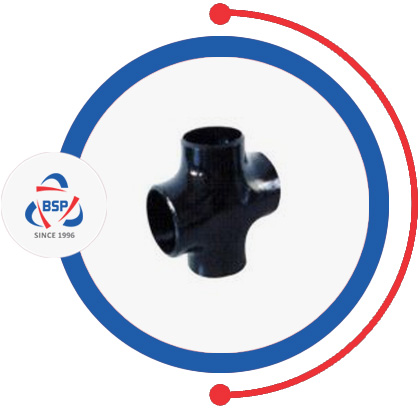

- ANSI B16.9 LTCS A420 WPL6 Buttweld Cross
- ASTM A420 LTCS A420 WPL6 Buttweld Cross
- LTCS A420 WPL3 Cross In Japan
- LTCS A420 Gr WPL Butt weld Cross
- LTCS A420 Carbon Steel Reducing Cross
- A420 LTCS A420 Carbon Steel Equal Cross

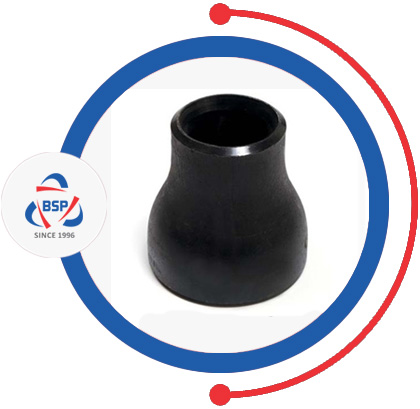

- ANSI B16.9 LTCS A420 WPL3 Concentric Reducer
- LTCS A420 Carbon Steel Concentric Reducer
- LTCS A420 WPL6 Butt weld Concentric Reducer In Italy
- ASTM A420 Carbon Steel Concentric Reducer In Spain
- ASTM A420 Gr WPL Concentric Reducer

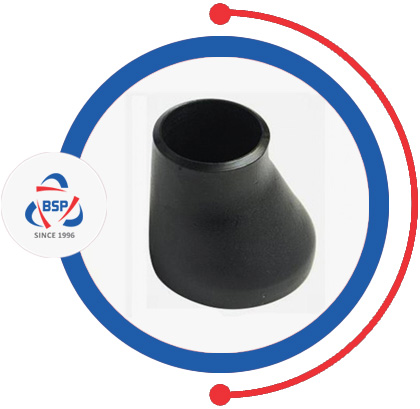

- LTCS A420 WPL6 Butt weld Eccentric Reducer In Philippines
- LTCS A420 Carbon Steel Eccentric Reducer In Singapore
- ASTM A420 Gr WPL Eccentric Reducer
- LTCS A420 WPL3 Eccentric Reducer
- ANSI B16.9 LTCS A420 WPL3 Eccentric Reducer
- ASTM A420 Gr WPL Butt weld Stub End
- ANSI B16.9 LTCS A420 Carbon Steel Lap Joint Stub End
- LTCS A420 Gr WPL Short Stub End In Japan
- ASTM A420 LTCS A420 WPL3 Short Stub End In Spain

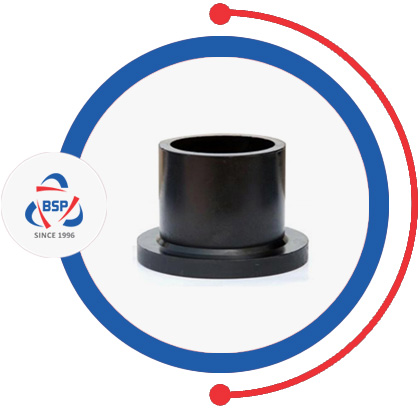

- LTCS A420 WPL6 Long Stub End

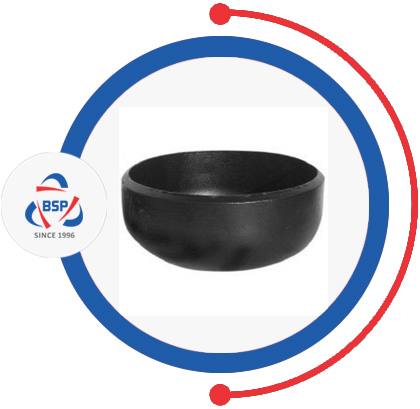

- ANSI B16.9 LTCS A420 WPL6 Pipe End Cap
- ASTM A420 Gr WPL Butt weld Cap
- LTCS A420 WPL3 Pipe Cap In Malaysia
- LTCS A420 Carbon Steel End Pipe Cap In Mexico
- LTCS A420 Gr WPL End Cap
- LTCS A420 WPL3 Pipe Nipple In Kuwait
- ASTM A420 Gr WPL Swage Nipple

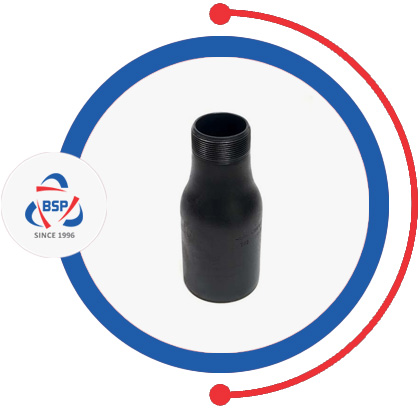

- LTCS A420 WPL6 Butt weld Nipple
- ANSI B16.9 LTCS A420 Gr WPL Barrel Nipple
- LTCS A420 Carbon Steel Nipple In Indonesia

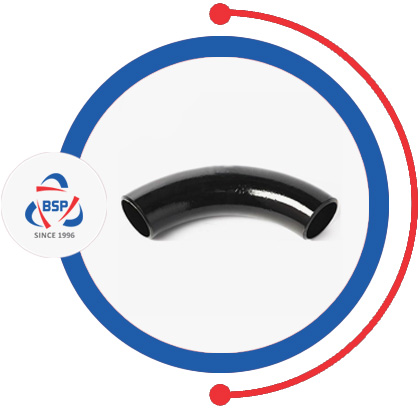

- ANSI B16.9 LTCS A420 WPL3 Bend
- ASTM A420 Gr WPL Butt weld Bend
- LTCS A420 WPL6 Long Radius Bend In Philippines
- LTCS A420 Carbon Steel WPL Hot Induction Bend
- LTCS A420 Gr WPL Piggable Bend In Italy
View Thickness Table Of LTCS A420 WPL3 Buttweld Fittings, We have Global sales network for LTCS A420 WPL6 LR Elbow, Wide Stockist Of Werkstoff No LTCS A420 Gr WPL Carbon Steel Seamless Fittings In India.
Check available Sizes of ASME SA 420 Carbon Steel Gr WPL Pipe Reducer, Ask For Ready Stock of LTCS A420 WPL3 / WPL6 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 LTCS A420 WPL3 / WPL6 Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 LTCS A420 WPL3 / WPL6 Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 LTCS A420 WPL3 / WPL6 Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
LTCS A420 WPL3 Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock LTCS A420 WPL3 / WPL6 Pipe Fittings
- LTCS A420 WPL6 Long Radius Elbow In Indonesia
- LTCS A420 WPL3 Welded Fittings
- SCH 60 LTCS A420 WPL6 Pipe Nipples
- 15 NB SCH 10 LTCS A420 WPL3 90° Short Radius Elbow
- LTCS A420 WPL3 Reducing Nipple In Malaysia
- Sch 80 LTCS A420 WPL3 Pipe Fittings
- LTCS A420 WPL3 1D Elbow/3D Elbow/5D Elbow In Mexico
- LTCS A420 WPL3 Piggable Bends In Philippines
- LTCS A420 WPL3 180° LR Return Bends
- ASME SA420 WPL TCS A420 WPL6 Lateral Tee
- LTCS A420 WPL3 SR Elbow In Japan
- LTCS A420 WPL6 Butt Weld Pipe Fittings In Spain
- LTCS A420 WPL3 Mandrel Pipe Bend In Italy
- LTCS A420 WPL6 Lap Joint Stub End
- ASTM A420 Carbon Steel Stub End
- Schedule 80 LTCS A420 WPL3 Grade Long Stub End
- LTCS A420 WPL3 Two Joint Pipe Fittings In Kuwait
- ASTM A420 Gr WPL Butt weld Fittings In Singapore
- DIN 2605 LTCS A420 WPL3 Elbow Exporter
- LTCS A420 WPL6 Long Stub End In Indonesia
- LTCS A420 WPL3 Reducer
- 1/2” - 16” ASTM A420 Gr WPL Butt weld Elbow
- LTCS A420 WPL6 Buttweld Nipple In Malaysia
- LTCS A420 WPL3 Buttweld Fittings In Mexico
- LTCS A420 WPL3 LR Elbow Stockist
- LTCS A420 WPL6 Pipe Fittings Manufacturer
- ASTM A420 Gr WPL 45 Degree Elbow
- ANSI B16.9 LTCS A420 WPL3 Short Stub End
- LTCS A420 WPL6 Pipe Fittings
- DIN ASTM A420 Gr WPL Swage Nipple In Philippines
- LTCS A420 WPL6 Eccentric Reducer
- ASTM LTCS A420 WPL6 Buttweld Fittings In Japan
- LTCS A420 WPL3 Two Halve Butt weld Fittings
- LTCS A420 WPL6 Seamless Fittings
- LTCS A420 WPL6 Pipe Elbow In Italy
- LTCS A420 WPL3 Barrel Nipple Supplier in Mumbai
- ANSI B16.9 LTCS A420 WPL3 Pipe Cap
- LTCS A420 WPL6 Equal Cross In Singapore
- ASME B16.9 LTCS A420 WPL3 Buttweld Fittings
- 5" Nb Sch10s LTCS A420 WPL3 90° Short Radius Elbow
- LTCS A420 WPL3 End Cap Distributor

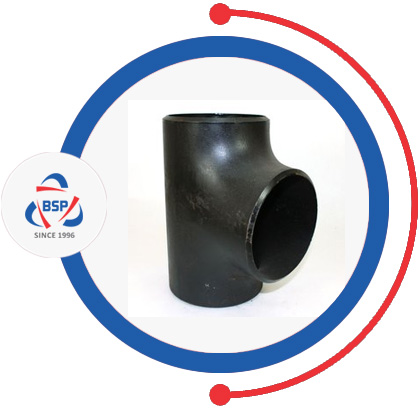

- LTCS A420 WPL6 Butt weld Tee
- LTCS A420 WPL3 Eccentric Reducer Manufacturer
- LTCS A420 WPL3 Long Radius Bend Stockholder
- LTCS A420 WPL6 Pipe Bend In Kuwait
- ASME B16.9 Schedule 10 LTCS A420 WPL6 Elbow
- LTCS A420 WPL6 Elbow
- ASTM A420 WPL3 Pipe Fittings
LTCS A420 WPL3 / WPL6 Butt weld Fittings Chemical Composition
| Grade | C | Mn | P | S | Si |
|---|---|---|---|---|---|
| ASTM A420 WPL3/WPL6 Fittings | 0.3 | 0.60-1.35 | 0.035 | 0.04 | 0.15-0.30 |
LTCS A420 WPL6 Pipe Fittings Mechanical Properties
| Tensile Requirements | Tensile Strength min, ksi [MPa] |
Yield Strength min, ksi [MPa] |
|---|---|---|
| ASTM A420 WPL3 / WPL6 Fittings | 60-85[415-585] | 35[240] |
