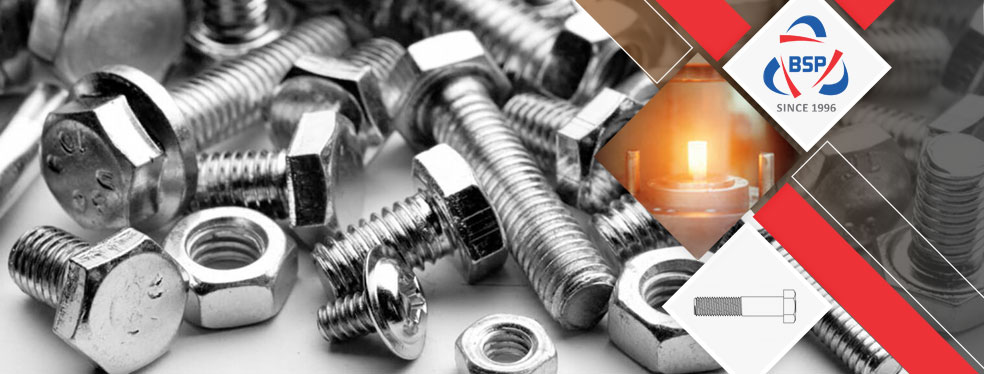

Incoloy 825 Fasteners

Alloy 825 Nuts, Incoloy 825 Bolts In Singapore, ASTM B425 Incoloy 825 Washers, Incoloy Alloy 825 Fasteners, Incoloy® Alloy 825 Stud Bolts Price in India.

Bagoda Steel is a popular manufacturer and exporter of Incoloy Alloy 825 Fasteners, which may be forged, warm-disillusioned and effect extruded. It is utilized in Pollution manipulate stack liners, ducts, dampers, scrubbers, stack-fueloline reheaters, lovers and fan housings; Flue fueloline desulfurization systems; etc. Although the alloy has a tendency to work-harden, you may have it efficiently spun, deep-drawn, press formed or punched. All of the not unusual place techniques of welding may be used, even though the oxyacetylene and submerged arc tactics aren't endorsed whilst the fabricated object is to be used in corrosion provider. Incoloy Alloy UNS N08825 Fasteners are used as matching composition filler material for welding alloy wrought and cast products, for numerous welding applications together in company of the different nickel-chromium-molybdenum alloys and stainless steels, and for weld overlay or cladding of steels.

Industrial Product
Incoloy 825 fasteners

Incoloy 825 Flat Washers In Italy, Nickel Alloy 825 Threaded Rod, Incoloy 825 Hex Bolts In Malaysia, 2.4858 Nuts, Incoloy® Alloy 825 Carriage Bolts, Alloy 825 Anchor Bolts, Alloy 825 Screws, UNS N08825 Allen Cap Screw Stockist Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It is proof against sea water and steam at excessive temperatures in addition to salt and caustic solutions. Incoloy Alloy WNR 2.4858 Fasteners is a strong solution alloy that could handiest be hardened by means of having the aid of using cold working. This nickel alloy famous traits like suitable corrosion resistance, suitable weldability and excessive strength. A low corrosion price in swiftly flowing brackish or seawater mixed in company of brilliant resistance to pressure-corrosion cracking in maximum freshwaters, and its resistance to a whole lot of corrosive situations caused its extensive use in marine applications and different non-oxidizing chloride solutions.

This nickel alloy is specially proof against hydrochloric and hydrofluoric acids whilst they're de-aerated. As could be anticipated from its excessive copper content material, it's far swiftly attacked by means of having the aid of using nitric acid and ammonia systems. Nickel Alloy 825 Fasteners has tremendous mechanical properties at sub-zero temperatures, may be utilized in temperatures as much as 1000° F, and its melting factor is 2370-2460° F. However, it's far low in strength within the annealed situation so, a whole lot of tempers can be used to growth the strength. It is proof against seawater and steam at excessive temperatures, and resistance to chloride precipitated pressure corrosion cracking.

Material Specification Chart of Incoloy 825 Fasteners

Standard ASTM B425, ASME SB425
Size M 02 to M 33
Length 3 mm to 200 mm
Threads: METRIC, BSW, BSF, UNC, UNF or as required
Standard: DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Stud Bolt length are defined in ASME B16.5 standard
  • Hex nuts are defined in ASME B18.2.2
  • ASME B18.5
  • BS en iso 3506

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Scope of Manufacturer
  • Up to M36 / 1-1/2” Dia, up to 1100mm lg
  • CNC Machined Fasteners, up to M100 / 4” Dia, up to 1500mm lg
Dia M6 to M64 (1/4" - 2.5")
Length 12 MM - 500 MM (Upto 20 Inch)
IS 1363, 1364
DIN 931, 933
ISO ISO 3506
Form of: Hex, Square, Round, Threading as per Gauge Etc.
Head Drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Finishing: Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET
Production Process M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element
Types Nuts, Bolts, Screws, Socket Screw, Sockets, Studs, Screw, Nut, Spring Washers, Hex Set Screw, Socket Hexagon Head Screw, Cap Screw, Wing Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Studs, Anchors, Hex Nut,Marine Anchors, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Anchor Bolt, U- Bolts, J Bolts, T-Head Bolts, Mushroom Head Square Neck Bolts, Eye Bolt, Foundation Bolts, Structural Bolts

ANSI and/or ASME Standards (inch series)

ASME B18.1.1 Small Solid Rivets ASME B18.8.1 Clevis Pins and Cotter Pins
ASME B18.1.2 Large Rivets ASME B18.8.2 Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins
ASME B18.2.1 Square and Hex Bolts and Screws ASME B18.9 Plow Bolts
ASME B18.2.2 Square and Hex Nuts ASME B18.10 Track Bolts and Nuts
ASME B18.2.6 Fasteners for use in Structural Applications ASME B18.11 Miniature Screws
ASME B18.3 Socket Cap, Shoulder and Set Screws ASME B18.13 Screws and Washer Assemblies (Sems)
ASME B18.5 Round Head Bolts ASME B18.15 Forged Eyebolts
ASME B18.6.2 Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws ASME B18.17 Wing Nuts, Thumb Screws and Wing Screws
ASME B18.6.3 Machine Screws and Machine Screws Nuts ASME B18.21.1 Lock Washers
ASME B18.6.4 Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws ASME B18.22.1 Plain Washers
ASME B18.7 General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps ASME B18.23.1 Beveled Washers

Various Types Of Incoloy 825 Fasteners

Incoloy 825 Bolts
Incoloy 825 Bolts
  • Incoloy 825 Bolts In Philippines
  • 2.4858 Heavy Hex Bolts
  • ASTM B425 Incoloy 825 Bolts
  • ASME SB425 Incoloy Alloy 825 Bolts
  • UNS N08825 Flange Bolts
  • Alloy 825 Hex Bolts In Mexico
Incoloy 825 Nuts
Incoloy 825 Nuts
  • ASTM B425 Incoloy 825 Nuts
  • 2.4858 Heavy Hex Nuts
  • UNS N08825 Nuts
  • ASME SB425 Incoloy Alloy 825 Nuts
  • Alloy 825 Hex Nuts In Japan
  • Incoloy 825 Wing Nuts In Italy
Incoloy 825 Screw
Incoloy 825 Screw
  • Alloy 825 Allen Cap Screw In Spain
  • UNS N08825 Socket Set Screws
  • 2.4858 Hex Cap Screws
  • Incoloy 825 Screw In Kuwait
  • ASME SB425 Incoloy Alloy 825 Screw
  • ASTM B425 Incoloy 825 Screw
Incoloy 825 Washers
Incoloy 825 Washers
  • Incoloy 825 Washers In Singapore
  • UNS N08825 Lock Washers
  • ASTM B425 Incoloy 825 Washers
  • Alloy 825 Flat Washer In Indonesia
  • 2.4858 Beveled Washers
  • ASME SB425 Incoloy Alloy 825 Washers
Incoloy 825 Threaded Rods
Incoloy 825 Threaded Rods
  • ASME SB425 Incoloy Alloy 825 Threaded Rods
  • Alloy 825 Threaded Rods In Japan
  • 2.4858 Threaded Rods
  • ASTM B425 Incoloy 825 Threaded Rods
  • Incoloy 825 Threaded Rods In Mexico
  • UNS N08825 Threaded Rods
Incoloy 825 Stud Bolts
Incoloy 825 Stud Bolts
  • UNS N08825 Stud Bolts
  • 2.4858 Stud Bolts
  • Alloy 825 Stud Bolts In Spain
  • ASME SB425 Incoloy Alloy 825 Stud
  • ASTM B425 Incoloy 825 Stud Bolts
  • Incoloy 825 Tie Rods In Mexico
Incoloy 825 Anchor Bolts
Incoloy 825 Anchor Bolts
  • ASTM B425 Incoloy 825 Anchor Bolts
  • ASME SB425 Incoloy 825 Self Tapping Anchor
  • Incoloy 825 Anchor Bolts In Philippines
  • UNS N08825 Concrete Anchors
  • Incoloy 825 Wedge Anchor Bolt In Italy
  • 2.4858 J Anchor Bolts

Equivalent Grades of Incoloy 825 Fasteners

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo
Fasteners Dimensions

View Size Table Of Incoloy 825 Fasteners, We have Global sales network for Incoloy 825 Stud Bolts, Wide Stockist Of Werkstoff No 2.4858 Nuts, Bolts, Washers In India.

Size Chart of Incoloy 825 Bolts

Nominal or Basic Product Diameter E F G H J LT (Thread Length) Y
Body Diameter Width Across Flats Width Across Corners Head Height Wrenching Height For Screw Lengths For Screw Lengths Transition Thread Length
1/4 0.25 0.25 0.245 7/16 0.438 0.428 0.505 0.488 5/32 0.163 0.150 0.106 0.750 1.000 0.250
5/16 0.3125 0.3125 0.3065 1/2 0.500 0.489 0.577 0.557 13/64 0.211 0.195 0.140 0.875 1.125 0.278
3/8 0.375 0.375 0.369 9/16 0.562 0.551 0.650 0.628 15/64 0.243 0.226 0.160 1.000 1.250 0.312
7/16 0.4375 0.4375 0.4305 5/8 0.625 0.612 0.722 0.698 9/32 0.291 0.272 0.195 1.125 1.375 0.357
1/2 0.5 0.5 0.493 3/4 0.750 0.736 0.866 0.840 5/16 0.323 0.302 0.215 1.250 1.500 0.385
9/16 0.5625 0.5625 0.5545 13/16 0.812 0.798 0.938 0.910 23/64 0.371 0.348 0.250 1.375 1.625 0.417
5/8 0.625 0.625 0.617 15/16 0.938 0.922 1.083 1.051 25/64 0.403 0.378 0.269 1.500 1.750 0.455
3/4 0.75 0.75 0.741 1-1/8 1.125 1.100 1.299 1.254 15/32 0.483 0.455 0.324 1.750 2.000 0.500
7/8 0.875 0.875 0.866 1-5/16 1.312 1.285 1.516 1.465 35/64 0.563 0.531 0.378 2.000 2.250 0.556
1 1 1 0.99 1-1/2 1.500 1.469 1.732 1.675 39/64 0.627 0.591 0.416 2.250 2.500 0.625
1-1/8 1.125 1.125 1.114 1-11/16 1.688 1.631 1.949 1.859 11/16 0.718 0.658 0.461 2.500 2.750 0.714
1-1/4 1.25 1.25 1.239 1-7/8 1.875 1.812 2.165 2.066 25/32 0.813 0.749 0.530 2.750 3.000 0.714
1-1/2 1.5 1.5 1.488 2-1/4 2.250 2.175 2.598 2.480 15/16 0.974 0.902 0.640 3.250 3.500 0.833

Check available Sizes of ASME SB 166 Incoloy 825 Stud Bolt, Ask For Ready Stock of UNS N08825 Fasteners in Mumbai, India.

BAGODA

Quick Contact

Incoloy 825 Washer Weight & Dimensions

Bolt Size A B C Weight (lbs.) Per 100 Pieces
ID OD Thickness
1/2 9/16 13/8 0.109 4
5/8 11/16 13/4 0.134 8
3/4 13/16 2 0.148 11
7/8 15/16 21/4 0.165 15
1 11/16 21/2 0.165 19
11/8 11/4 23/4 0.165 22
11/4 13/8 3 0.165 26
13/8 11/2 31/4 0.180 33
11/2 15/8 31/2 0.180 38
15/8 13/4 33/4 0.180 43
13/4 17/8 4 0.180 50
17/8 2 41/4 0.180 57
2 21/8 41/2 0.180 63
21/4 23/8 43/4 0.220 83
21/2 25/8 5 0.238 96
23/4 27/8 51/4 0.259 110
3 31/8 51/2 0.284 130

Incoloy 825 Stud Bolt Size Chart

Class 150 Flanges ASME B16.5 (Stud bolt sizes) Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face
0.06 in		 Ring Joint
1/2 3 1/2 2 3/8 5/8 4 1/2 2 1/4 –
3/4 3 7/8 2 3/4 5/8 4 1/2 2 1/2 –
1 4 1/4 3 1/8 5/8 4 1/2 2 1/2 3
1 1/4 4 5/8 3 1/2 5/8 4 1/2 2 3/4 3 1/4
1 1/2 5 3 7/8 5/8 4 1/2 2 3/4 3 1/4
2 6 4 3/4 3/4 4 5/8 3 1/4 3 3/4
2 1/2 7 5 1/2 3/4 4 5/8 3 1/2 4
3 7 1/2 6 3/4 4 5/8 3 1/2 4
3 1/2 8 1/2 7 3/4 8 5/8 3 1/2 4
4 9 7 1/2 3/4 8 5/8 3 1/2 4
5 10 8 1/2 7/8 8 3/4 3 3/4 4 1/4
6 11 9 1/2 7/8 8 3/4 4 4 1/2
8 13 1/2 11 3/4 7/8 8 3/4 4 1/4 4 3/4
10 16 14 3/4 1 12 7/8 4 1/2 5
12 19 17 1 12 7/8 4 3/4 5 1/4
14 21 18 3/4 1 1/8 12 1 5 1/4 5 3/4
16 23 1/2 21 1/4 1 1/8 16 1 5 1/4 5 3/4
18 25 22 3/4 1 1/4 16 1 1/8 5 3/4 6 1/4
20 27 1/2 25 1 1/4 20 1 1/8 6 1/4 6 3/4
24 32 29 1/2 1 1/4 20 1 1/4 6 3/4 7 1/4
Class 300 Flanges ASME B16.5 Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face
0.06 in		 Ring Joint
1/2 3 3/4 2 5/8 5/8 4 1/2 2 1/2 3
3/4 4 5/8 3 1/4 3/4 4 5/8 3 3 1/2
1 4 7/8 3 1/2 3/4 4 5/8 3 3 1/2
1 1/4 5 1/4 3 7/8 3/4 4 5/8 3 1/4 3 3/4
1 1/2 6 1/8 4 1/2 7/8 4 3/4 3 1/2 4
2 6 1/2 5 3/4 8 5/8 3 1/2 4
2 1/2 7 1/2 5 7/8 7/8 8 3/4 4 4 1/2
3 8 1/4 6 5/8 7/8 8 3/4 4 1/4 4 3/4
3 1/2 9 7 1/4 7/8 8 3/4 4 1/4 5
4 10 7 7/8 7/8 8 3/4 4 1/2 5
5 11 9 1/4 7/8 8 3/4 4 3/4 5 1/4
6 12 1/2 10 5/8 7/8 12 3/4 4 3/4 5 1/2
8 15 13 1 12 7/8 5 1/2 6
10 17 1/2 15 1/4 1 1/8 16 1 6 1/4 6 3/4
12 20 1/2 17 3/4 1 1/4 16 1 1/8 6 3/4 7 1/4
14 23 20 1/4 1 1/4 20 1 1/8 7 7 1/2
16 25 1/2 22 1/2 1 3/8 20 1 1/4 7 1/2 8
18 28 24 3/4 1 3/8 24 1 1/4 7 3/4 8 1/4
20 30 1/2 27 1 3/8 24 1 1/4 8 8 3/4
24 36 32 1 5/8 24 1 1/2 9 10

Ready Stock Incoloy 825 Fasteners

  • Nickel Alloy 825 Screws Distributor
  • ASTM B425 Incoloy 825 Nyloc Nuts
  • Alloy 825 T-Head Bolts In Indonesia
  • Alloy 825 Hexagonal Washer In Malaysia
  • Incoloy® Alloy 825 Hex Washers
  • Incoloy 825 Wing Nuts In Mexico
  • 825 Incoloy Hex Set Screw Manufacturer
  • 825 Incoloy Machine Bolt
  • Incoloy Alloy 825 Socket Cap Screw
  • Incoloy 825 Heavy Hex Nuts In Philippines
  • Incoloy 825 Fasteners In Japan
  • Alloy 825 Eye Bolts In Italy
  • Incoloy 825 Lock Nut
  • UNS N08825 Fasteners
  • Incoloy 825 Anchor Bolts
  • Incoloy 825 Coupling Nut In Spain
  • 825 Incoloy Customized Washer
  • Nickel Alloy 825 Hex Domed Cap Nuts
  • DIN 2.4858 Countersunk Washer
  • Alloy 825 Hex Head Bolt In Kuwait
  • 2.4858 Fasteners
  • JIS NCF 825 Stud Bolts
  • Incoloy 825 Machine Fasteners Exporter
  • Incoloy 825 Heavy Hex Bolts In Singapore
  • Alloy 825 Double Ended Stud
  • 825 Incoloy Structural Bolts
  • Incoloy® Alloy 825 Foundation Bolts Manufacturer
  • ASTM B425 Incoloy 825 Wing Nuts
  • Nickel Alloy 825 Concrete Screw
  • Incoloy 825 Flange Bolt In Indonesia
  • ASTM B425 Incoloy 825 Fasteners
  • Incoloy Alloy 825 Threaded Rod In Malaysia
  • ASME SB425 Incoloy 825 Fender Washer
  • Alloy 825 Elevator Bolt
  • Incoloy 825 Bolts In Mexico
  • 825 Incoloy Ogee Washer
  • Nickel Alloy 825 Split / Lock Washer In Philippines
  • Incoloy® Alloy 825 Allen Cap Screw
  • Incoloy Alloy 825 Stud Bolts In Japan
  • Incoloy 825 Hex Head Bolts
  • Incoloy Alloy 825 Bolts
  • ASTM B425 Incoloy 825 Flat Washers
  • Incoloy® Alloy 825 Tie Rods In Kuwait
  • 825 Incoloy Acorn Nuts
  • Alloy 825 Plain Washer Supplier in Mumbai
  • Incoloy 825 Dock Washer Stockholder
  • Incoloy 825 Tooth Lock Washer In Italy
  • Incoloy Alloy 825 Carriage Bolt Stockist
  • Incoloy 825 Self Locking Nuts
  • Incoloy Alloy® 825 Washers In Spain
  • Nickel Alloy 825 Hex Coupling Nut
  • Incoloy 825 Square Nuts In Singapore

Incoloy 825 Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Incoloy 825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50

Alloy 825 Fasteners Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Incoloy 825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %
