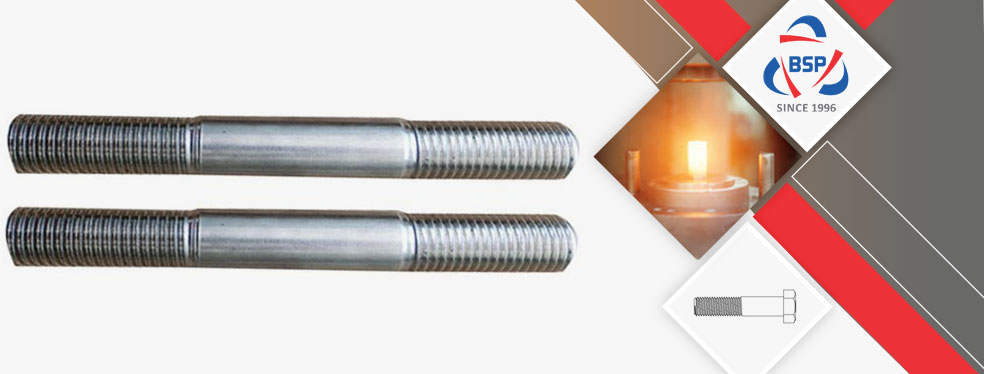

Duplex Steel S31803 Stud Bolt

DSS S32205 Stud Bolts, Duplex Steel S31803 Industrial Stud Bolts, ASTM A193 Duplex Grade S31803 Studs , Duplex Steel S32205 Studs, Duplex Stainless Steel S31803 Double End Stud BoltPrice in India.

Bagoda Steel is a renowned manufacturer and distributor of Duplex UNS S31803 Stud Bolts, which offers good excessive temperature strength. They are indicative handiest of the consequences received in such exams and must now no longer be taken into consideration as assured maximums or minimums. The well-known heat-remedy is at a temperature of 2150 Deg. F (1177 Deg. C) observed via way of means of fast cooling. Other heat-remedy temperatures additionally can be powerful for positive paperwork and situations. The properties indexed right here are common values primarily based totally on laboratory take a look at carried out via way of means of the manufacturer. Materials ought to be examined below real provider situations to decide their suitability for a specific purpose. Duplex Steel UNS S32205 Stud Bolts are primarily based totally on exams of an unattached heat.

Industrial Product
Duplex Steel S31803 Stud Bolts

Duplex Steel S32205 Tap End Stud Bolts, Duplex Steel S31803 Single End Stud Bolt, 1.4462 Tie Rods, Duplex Stainless Steel S31803 Stud Stockist, Duplex Grade S32205 Tie Rods, UNS S32205 Half Thread Stud Bolts, DSS S32205 Full Threaded Stud Bolt Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

It offers an excellent mechanical properties at each extraordinarily low and extraordinarily excessive temperatures. It has an outstanding resistance to pitting, crevice corrosion and inter-crystalline corrosion. It has an almost entire freedom from chloride caused pressure corrosion cracking. It provides high resistance to oxidation at expanded temperatures as much as 1050 Degree C. Duplex Steel 2205 Stud Bolts has good resistance to acids, which include nitric, phosphoric, sulphuric and hydrochloric, in addition to alkalis makes feasible the development of skinny structural components of excessive warmth transfer. It is exceptionally resistant in a huge variety of natural and mineral acids.

It is best for components wherein publicity to sea water and excessive mechanical stresses are required. It is used in oil and fuelling manufacturing wherein hydrogen sulphide and simple sulphur exist at temperature in extra of 150 Degree C. It is also used in Components uncovered to flue fueloline or in flue fueloline desulfurization plants. Alloy 2205 Stud Bolts is as well used in flare stacks on offshore oil platforms, and hydrocarbon processing from tar-sand and oil-shale healing projects. With base corrosion, temperature and wear-resistant alloys, they are categorised as mild to tough whilst machining. It is a material with incredible resistance to pitting, crevice and corrosion cracking.

Material Specification Chart of Duplex Steel S31803 Stud Bolt

Specification ASTM F468,  A193 / ASME SF468, SA193
Size M02 to M33, Custom Sizes
Length 3 mm to 200 mm
Stud Bolt UNF, BSW, BSF, METRIC, UNC, or as required
Standard DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Types Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Stud Bolts Six-Lobe, Phillips, Phillips/Slot, Slotted etc
Packing of Stud Bolts IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Ptfe Coated
Phosphate Coating
Teflon Coating
Zinc Coating
Hot Dipped Galvanizing Coating
Cadmium Coating
Xylon Coating

Various Types Of Duplex Steel S31803 Stud Bolt

Duplex Steel S31803 Double Ended Stud Bolt
Duplex Steel S31803 Double Ended Stud Bolt
  • UNS S32205 Double End Studs
  • ASTM A193 DSS S32205 Double Ended Stud Bolt
  • ASME SA193 Duplex Steel UNS S31803 Dual Threaded Stud
  • Duplex 2205 Double Ended Stud Bolt
  • 1.4462 Double End Stud
  • Duplex Stenless Steel S31803 Double Ended Wheel Stud
Duplex Steel S31803 Stud Bolt
Duplex Steel S31803 Stud Bolt
  • SAF 2205 Stud Bolts
  • UNS S31803 Stud Bolts
  • 1.4462 Stud Bolt
  • Duplex Steel UNS S31803 Stud Bolts
  • ASTM A193 Duplex Steel UNS S32205 Stud Bolts
  • ASME SA193 Duplex Stainless Steel S31803 Stud Bolts
Duplex Steel S31803 Stud
Duplex Steel S31803 Stud
  • ASTM A193 DSS S32205 Clinch Stud
  • Duplex 2205 Studs
  • UNS S31803 Dowel Studs
  • 1.4462 Stud
  • ASME SA193 Duplex Stainless Steel S32205 Stud
  • Duplex Steel UNS S31803 Weld Studs
Duplex Steel S31803 Flush Head Stud
Duplex Steel S31803 Flush Head Stud
  • ASTM A193 Duplex Stainless UNS S32205 Flush Head Self Clinching Studs
  • ASME SA193 Duplex Grade S32205 Self Clinch Flush Head Stud
  • Duplex Steel UNS S31803 Flush Head Stud
  • UNS S31803 Flush Head Clinch Studs
  • 1.4462 Flush Head Studs
  • SAF 2205 Self Clinching Stud
Duplex Steel S31803 Threaded Rods
Duplex Steel S31803 Threaded Rod
  • ASTM A193 Duplex Grade S32205 M5 Threaded Rod
  • Duplex 2205 Fully Threaded Rod
  • 1.4462 Threaded Rods
  • ASME SA193 Duplex Steel UNS S31803 Threaded Rods
  • Duplex Stainless Steel S31803 Threaded Rods
  • UNS S32205 Threaded Stud
Duplex Steel S31803 Single End Stud Bolt
Duplex Steel S31803 Single End Stud Bolt
  • ASTM A193 Duplex Grade S32205 Single Ended Stud Bolt
  • 1.4462 Single Ended Stud Bolt
  • Duplex Steel UNS S31803 Single End Studs
  • ASME SA193 SAF 2205 Single Ended Stud Bolt
  • Duplex Stainless Steel S31803 M6 Single End Stud
  • UNS S32205 Single Ended Threaded Stud

Equivalent Grades of Duplex Steel S31803 Stud Bolts

STANDARD WERKSTOFF NR. UNS
Duplex S31803 1.4462 S31803
Stud Bolts Dimensions

View Size Table Of Duplex Steel S31803 Stud Bolts, We have Global sales network for Duplex Stainless Steel S32205 Stud Bolts, Wide Stockist Of Werkstoff No 1.4462 Tap End Stud Bolts, Double End Stud Bolts In India.

Size Chart of Duplex Steel S31803 Stud Bolts

 Class 150 Flanges ASME B16.5 (Stud bolt sizes) Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 1/2 2 3/8 5/8 4 1/2 2 1/4 –
3/4 3 7/8 2 3/4 5/8 4 1/2 2 1/2 –
1 4 1/4 3 1/8 5/8 4 1/2 2 1/2 3
1 1/4 4 5/8 3 1/2 5/8 4 1/2 2 3/4 3 1/4
1 1/2 5 3 7/8 5/8 4 1/2 2 3/4 3 1/4
2 6 4 3/4 3/4 4 5/8 3 1/4 3 3/4
2 1/2 7 5 1/2 3/4 4 5/8 3 1/2 4
3 7 1/2 6 3/4 4 5/8 3 1/2 4
3 1/2 8 1/2 7 3/4 8 5/8 3 1/2 4
4 9 7 1/2 3/4 8 5/8 3 1/2 4
5 10 8 1/2 7/8 8 3/4 3 3/4 4 1/4
6 11 9 1/2 7/8 8 3/4 4 4 1/2
8 13 1/2 11 3/4 7/8 8 3/4 4 1/4 4 3/4
10 16 14 3/4 1 12 7/8 4 1/2 5
12 19 17 1 12 7/8 4 3/4 5 1/4
14 21 18 3/4 1 1/8 12 1 5 1/4 5 3/4
16 23 1/2 21 1/4 1 1/8 16 1 5 1/4 5 3/4
18 25 22 3/4 1 1/4 16 1 1/8 5 3/4 6 1/4
20 27 1/2 25 1 1/4 20 1 1/8 6 1/4 6 3/4
24 32 29 1/2 1 1/4 20 1 1/4 6 3/4 7 1/4
Class 300 Flanges ASME B16.5 Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 3/4 2 5/8 5/8 4 1/2 2 1/2 3
3/4 4 5/8 3 1/4 3/4 4 5/8 3 3 1/2
1 4 7/8 3 1/2 3/4 4 5/8 3 3 1/2
1 1/4 5 1/4 3 7/8 3/4 4 5/8 3 1/4 3 3/4
1 1/2 6 1/8 4 1/2 7/8 4 3/4 3 1/2 4
2 6 1/2 5 3/4 8 5/8 3 1/2 4
2 1/2 7 1/2 5 7/8 7/8 8 3/4 4 4 1/2
3 8 1/4 6 5/8 7/8 8 3/4 4 1/4 4 3/4
3 1/2 9 7 1/4 7/8 8 3/4 4 1/4 5
4 10 7 7/8 7/8 8 3/4 4 1/2 5
5 11 9 1/4 7/8 8 3/4 4 3/4 5 1/4
6 12 1/2 10 5/8 7/8 12 3/4 4 3/4 5 1/2
8 15 13 1 12 7/8 5 1/2 6
10 17 1/2 15 1/4 1 1/8 16 1 6 1/4 6 3/4
12 20 1/2 17 3/4 1 1/4 16 1 1/8 6 3/4 7 1/4
14 23 20 1/4 1 1/4 20 1 1/8 7 7 1/2
16 25 1/2 22 1/2 1 3/8 20 1 1/4 7 1/2 8
18 28 24 3/4 1 3/8 24 1 1/4 7 3/4 8 1/4
20 30 1/2 27 1 3/8 24 1 1/4 8 8 3/4
24 36 32 1 5/8 24 1 1/2 9 10

Check available Sizes of ASME SA193 Duplex Steel S32205 Stud Bolt, Ask For Ready Stock of UNS S31803 Stud Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Duplex Steel S31803 Stud Bolts

Diameter Diameter in mm Diameter in inch Nut Sizes
M12 12 0.4724 19
M10 10 0.3937 17
M14 14 0.5512 22
M18 18 0.7087 27
M16 16 0.6299 24
M20 20 0.7874 30
M24 24 0.9449 36
M22 22 0.8661 32
M27 27 1.063 41
M33 33 1.2992 50
M30 30 1.1811 46
M36 36 1.4173 55
M42 42 1.6535 65
M39 39 1.5354 60
M45 45 1.7717 70
M52 52 2.0472 80
M48 48 1.8898 75
M56 56 2.2047 85
M64 64 2.5197 95
M60 60 2.3622 90
M68 68 2.6772 100
M76 76 2.9921 110
M72 72 2.8346 105
M80 80 3.1496 115
M90 90 3.5433 130
M85 85 3.3464 120
M100 100 3.937 145
M160 160 6.2992 230
M125 125 4.9212 180
M110 110 4.3307 155
M140 140 5.5118 200

Duplex Steel S31803 Stud Bolt Torque Chart

Flange Size B16.5 Class 150 RF/ Ring Gaskets B16.5 Class 150 FF/ Full Face Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence Torque / Round (ft-lbs) Stud Bolts Tighten Sequence
1st 2nd Final Dwg/No. Bolt Size 1st 2nd Final Dwg*/No. Bolt Size
1/2″ 10 20 30 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
3/4″ 13 27 40 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1″ 15 30 50 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/4″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/2″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
2-1/2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3-1/2″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
4″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
5″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
8″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
10″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
12″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
14″ 147 294 490 12-bolt 1″ 147 294 490 12-bolt 1″
16″ 147 294 490 16-bolt 1″ 147 294 490 16-bolt 1″
18″ 213 426 710 16-bolt 1-1/8″ 213 426 710 16-bolt 1-1/8″
20″ 213 426 710 20-bolt 1-1/8″ 213 426 710 20-bolt 1-1/8″
24″ 300 600 1,000 20-bolt 1-1/4″ 300 600 1,000 20-bolt 1-1/4″

Flange Size B16.5 Class 300 RF/ Ring Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence*
1st 2nd Final Dwg/No. Stud Bolts Size
1/2″ 10 20 30 4-bolt 1/2″
3/4″ 15 30 50 4-bolt 5/8″
1″ 21 42 70 4-bolt 5/8″
1-1/4″ 30 60 100 4-bolt 5/8″
1-1/2″ 45 90 150 4-bolt 3/4″
2″ 33 66 110 8-bolt 5/8″
2-1/2″ 42 84 140 8-bolt 3/4″
3″ 60 120 200 8-bolt 3/4″
3-1/2″ 60 120 200 8-bolt 3/4″
4″ 60 120 200 8-bolt 3/4″
5″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 12-bolt 3/4″
8″ 95 190 320 12-bolt 7/8″
10″ 147 294 490 16-bolt 1″
12″ 213 426 710 16-bolt 1-1/8″
14″ 195 390 650 20-bolt 1-1/8″
16″ 273 546 910 20-bolt 1-1/4″
18″ 300 600 1,000 24-bolt 1-1/4″
20″ 300 600 1,000 24-bolt 1-1/4″
24″ 465 930 1,550 24-bolt 1-1/2″

Weight Chart Of Duplex Steel S31803 Stud Bolt

Weight Imperial
STUD BOLT LENGTH (in inches) 1/2 5/8 3/4 7/8 1 1 1/8 1 1/4 1.3/8 1 1/2 1.5/8 1.3/4 1 7/8
2.1/2 10.8
2.3/4 11.6 19.8
3.1/4 12.4 21 32.4
3.1/2 13.2 22.2 34.3 50
4 14 23.4 36.2 52.6 71.8
4.1/2 14.8 24.6 38.1 55.2 75.2 102
4.3/4 15.6 25.8 40 57.8 78.6 106 137
5 16.4 27 41.9 60.4 82 111 142 179
5.1/2 17.2 28.2 43.8 63 85.4 115 147 186 234
6 18 29.4 45.7 65.6 88.8 119 153 193 242 289
6.1/4 18.8 30.6 47.6 68.2 92.2 123 158 200 250 298 263
6.1/2 19.6 32.3 49.5 70.8 95.6 128 164 206 258 308 374 437
7 20.4 33.5 50.8 73.4 99 132 169 213 266 317 385 449
7.1/2 21.2 34.8 52.7 75.5 103 136 174 220 275 326 396 462
8 22 36.1 54.5 78 106 141 180 226 283 336 407 475
8.1/4   37.3 56.3 80.5 108 145 185 233 291 345 418 488
8.3/4   38.6 58.1 83.1 112 149 191 240 299 354 429 500
9   39.8 60 85.6 115 153 196 246 307 364 440 513
9.1/2   41.1 61.8 88.2 118 158 201 253 316 373 451 526
10     63.7 90.7 122 162 206 260 324 382 463 538
10/1.4       93.3 125 166 212 267 332 391 474 551
1.0.1/2         128 171 217 273 340 401 485 564
11         132 175 223 279 345 410 496 576
11.1/2         135 179 228 285 350 419 507 589
12         138 184 233 292 358 429 518 602
Weight Of Metric Studs Bolt
STUD BOLT LENGTH (in mm) M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39
60 5,6 8,1 12 15,6
70 6,1 8,9 13 16,9 23,7
80 6,6 9,6 14 18,2 25,4 32,5
90 7,1 10,3 15 19,6 27,1 34,5 45,5
100 7,6 11 16 21 28,8 36,7 47,2 54,2
110 8,1 11,7 17 22,2 30,4 38,7 48,3 58,2 80
120 8,6 12,4 18 23,6 32,1 40,7 50,9 60,2 84,7 107
130 9,1 13,2 19 24,9 33,7 42,8 53,4 63,2 88,6 111 141
140 9,6 14,2 20 26,2 35,4 44,9 55,9 66,2 92,4 116 147 185
150 10,1 14,9 20,8 27,5 36,9 46,9 58,5 69,2 96,3 121 153 192 237
160 10,6 15,6 21,8 29,1 38,6 49 61 72,2 100,1 126 159 199 245
170   16,4 22,8 30,4 40,2 51,1 63,5 75,2 104 130 165 206 253
180     23,8 31,8 41,9 52,3 66,1 78,1 108 135 171 213 261
190       33,1 43,5 54,4 68,4 81,1 112 140 176 219 269
200       34,5 45,2 56,2 71 84 116 144 182 226 278
210       35,8 46,8 58,5 73,5 88,4 120 149 188 233 286
220       37,1 48,4 60,6 76,1 91,4 124 154 194 240 294
230       38,5 50,1 62,6 78,6 94,4 127 159 201 247 302
240       39,8 51,7 64,7 81,2 97,4 130,9 164 208 253 310
250       41,1 53,4 66,8 83,7 100,4 134,8 172 214 260 319
260         55 68,8 86,3 103,4 138,6 177 220 267 327
270         56,6 70,9 88,8 106,4 142,5 182 224 274 335
280         58,3 73 91,4 109,4 146,3 187 230 281 343
290           75 93,9 112,4 150,1 192 236 291 360
300           77,1 96,5 115,4 154 196 241 298 368
320             101,6 121,3 161,7 206 253 312 380
340               127,3 169,4 215 265 326 395
360               133,3 177,1 224 276 340 411
380                 184,8 234 288 353 428
400                 192,5 243 299 367 444
420                   252 311 381 460
440                   262 322 394 477
460                   271 334 408 493
480                   281 345 422 509
500                   290 357 436 526

Ready Stock Duplex Steel S31803 Stud Bolts

  • DSS S32205 Threaded Rod
  • Duplex Stainless Steel S31803 Stud Bolts With Reduced Shank
  • Duplex 2205 Threaded Stud Bolt
  • Duplex Steel UNS S32205 Threaded Studs
  • Duplex Steel S32205 Stud Bolt
  • Duplex Grade S32205 Heavy Stud Bolt
  • DSS S32205 Tie Bars
  • Duplex Steel UNS S32205 Tie Rods
  • DIN 1.4462 Full Threaded Stud Bolt
  • Duplex Steel UNS S31803 Wheel Lug Stud Bolt
  • Duplex Steel S31803 Threaded Studs
  • UNS S32205 Stud Bolt
  • 1.4462 Continuous Thread Stud Bolt
  • JIS NCF 2205 Stud Bolts
  • DSS S31803 Threaded Rod Exporter
  • DSS S31803 Double Ended Stud
  • Duplex Steel UNS S32205 Stud Bolts
  • Duplex Grade S32205 Continuous Thread Stud Bolt
  • Duplex Steel UNS S31803 Partial Threaded Stud Bolt Stockholder
  • SAF 2205 Stud Bolt
  • Duplex Steel UNS S31803 Weld Studs
  • DSS S32205 Studs
  • Duplex Grade S31803 M16 Stud Bolt
  • Duplex Stainless Steel S31803 Industrial Stud Bolts
  • Duplex Stainless Steel S31803 Double Ended Stud Manufacturer
  • Duplex Grade S31803 Flush Head Studs Stockist
  • DSS S31803 High Pressure Stud Bolt
  • ASTM A193 Duplex Steel S31803 Double Ended Stud
  • ASTM A193 Duplex Steel UNS S32205 Double End Stud Bolts
  • ASTM A193 UNS S31803 Stud Bolts
  • DSS S31803 Drywall Stud
  • DSS S31803 Continuous Thread Stud Bolt
  • Duplex Steel UNS S31803 Full Threaded Stud Bolt Distributor
  • Duplex Grade S31803 Flush Head Studs
  • DSS S32205 Threaded Studs
  • ASTM A193 DSS S31803 Double Ended Stud
  • Duplex Steel UNS S32205 Threaded Stud Bolts
  • Duplex Stainless Steel S31803 Tap End Stud Bolts
  • Duplex Steel UNS S32205 Continuous Thread Stud Bolt
  • DSS S32205 Industrial Stud Bolts Supplier in Mumbai
  • ASME SA193 Duplex 2205 Studs
  • Duplex Steel UNS S32205 Double End Stud Bolts
  • Duplex Grade S32205 Tie Rods
  • DSS S31803 Single End Stud Bolt
  • Duplex Grade S31803 Metric Thread Stud Bolt Manufacturer
  • Duplex Steel UNS S32205 Half Thread Stud Bolt
  • DSS S31803 Tap End Stud Bolts
  • Duplex Grade S32205 Heavy Stud Bolt

Duplex Steel S31803 Stud Bolts Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Fe
S31803 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min

Duplex Steel S31803 Stud Bolts Mechanical Properties

Tensile Strength, ksi 0.2% Yield Strength, ksi Elongation, % Hardness [HRC]
90 min 65 min 25 min 293 max

Export Destinations For Duplex Steel S31803 Stud Bolts

industry
