Titanium Gr 5 Pipe Fittings, Titanium Alloy Gr 5 Elbow, Titanium Grade 5 Reducer Manufacturer

Titanium Gr 5 Equal Tee In Spain, UNS R56400 Pipe Fittings, Titanium Alloy Gr 5 Pipe Cap Stockist, Titanium Gr 5 Two Joint Pipe Fittings, 3.7165 Reducer, Ti Alloy Gr 5 LR Elbow In Mexico, Titanium Gr 5 Stub End, Ti Alloy Gr 5 Cross Supplier in Mumbai, India.

It is uncovered to more potent bases which include sodium hydroxide at excessive concentrations and excessive temperatures will in all likelihood enjoy a few etching and cracking, especially in company of solutions containing chlorides which include sodium hypochlorite. The tough and unfavourable situations regularly encountered while drilling for oil or fueloline imply that these Titanium WNR 3.7165 Unequal Tee Pipe Fittings is the perfect material to fabricate important components.

The mixture of strength, corrosive resistance and an cap-potential to resist the dangerous outcomes of pitting and crevice corrosion in Pipe Fittings cause a existence expectancy a long way in extra of that done with the aid of using general steels. We also are one of the distinguished sellers and stockiest for excessive great Pipe Fittings, that's the maximum broadly used metallic grade. This mixture of properties makes Ti 6Al/4V Lateral Tee Pipe Fittings perfect for a massive kind of chemical and marine in addition to aerospace and medical applications.

Material Specification Chart of Titanium Gr 5 Pipe Fittings

Specifications	ASTM B348 / ASME SB348
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size	Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48"
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Connection	Welding
Manufacturing Process	Push, Press, Forge, Cast, etc.
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Specialized Manufacturer of	90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

Titanium Gr 5 PIPE FITTINGS MANUFACTURING STANDARDS

ASTM B348/B348M	Piping Fittings
ASME B16.9	Factory-Made Wrought Fittings Buttwelding
MSS SP-43	Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 –	Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM B348 – ASME SB348	Standard Specification for Piping Fitting
ASME Standard	ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard	DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard	EN10253-2, EN10253-1
ASME B16.25	Buttwelding Ends
ASME B16.28	SR Elbows and Buttwelding Returns
API 590-605 ASME B16.9	‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of Titanium Gr 5 Butt weld Pipe Fittings

Titanium Gr 5 Butt weld Elbow

UNS R56400 LR Elbow
3.7165 Short Radius Elbow
Titanium Grade 5 3D Butt weld Elbow In Indonesia
Titanium Gr 5 90 Degree Elbow
ANSI B16.9 Titanium Alloy Gr 5 5D Elbow
Ti Alloy Gr 5 45 Degree Elbow In Malaysia
Ti Alloy Gr 2180 Deg Elbow

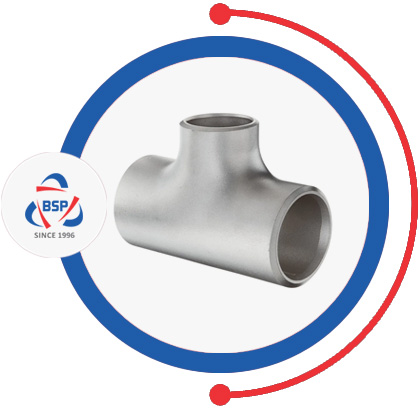

Titanium Gr 5 Butt weld Tee

3.7165 Buttweld Tees
Titanium Alloy Gr 5 Unequal Tee In Mexico
Titanium Grade 5 Equal Tee In Philippines
UNS R56400 Butt weld Tee
ANSI B16.9 Titanium Gr 5 Buttweld Tee
Ti Alloy Gr 5 Reducing Tee
Titanium Gr 5 Tee

Titanium Gr 5 Butt weld Cross

ANSI B16.9 Titanium Alloy Gr 5 Buttweld Cross
UNS R56400 Butt weld Cross
Titanium Gr 5 Reducing Cross
Titanium Alloy Gr 5 Unequal Cross In Japan
Titanium Grade 5 Equal Cross
Titanium Gr 5 Cross In Italy
3.7165 Buttweld Cross

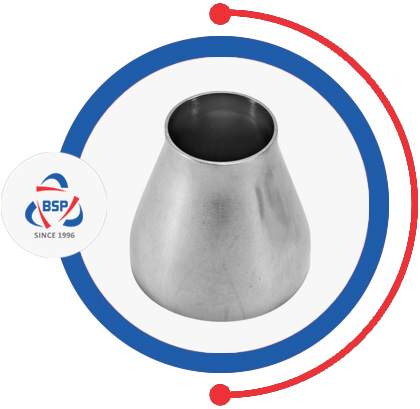

Titanium Gr 5 Concentric Reducer

UNS R56400 Concentric Reducer
3.7165 Concentric Reducer
Titanium Grade 5 Concentric Reducer In Spain
Ti Alloy Gr 5 Concentric Reducer In Kuwait
ANSI B16.9 Titanium Alloy Gr 5 Concentric Reducer

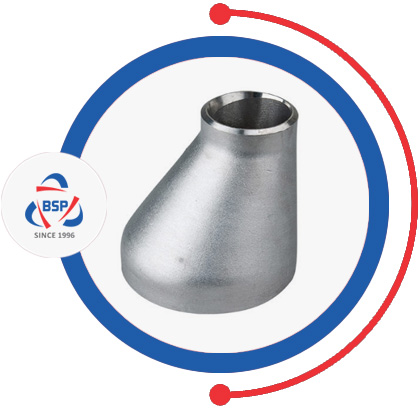

Titanium Gr 5 Eccentric Reducer

UNS R56400 Eccentric Reducer
Titanium Grade 5 Eccentric Reducer In Indonesia
Ti Alloy Gr 5 Eccentric Reducer In Singapore
3.7165 Eccentric Reducer
ANSI B16.9 Titanium Alloy Gr 5 Eccentric Reducer

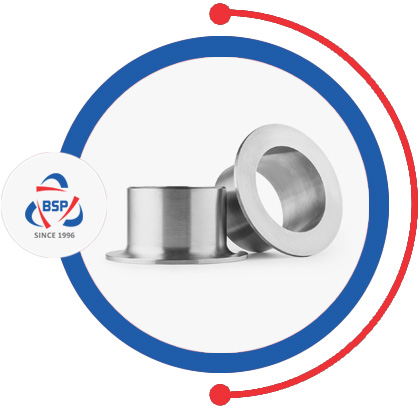

Titanium Gr 5 Stub End

3.7165 Short Stub End
Titanium Gr 5 Short Stub End In Malaysia
ANSI B16.9 Titanium Alloy Gr 5 Lap Joint Stub End
Titanium Grade 5 Long Stub End In Kuwait
UNS R56400 Butt weld Stub End

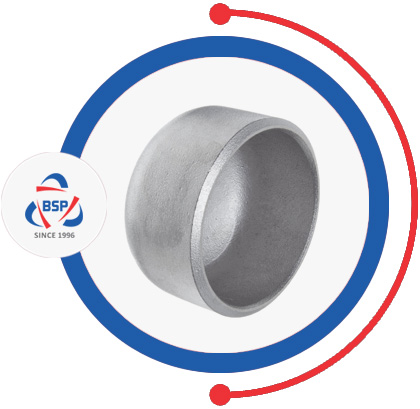

Titanium Gr 5 Pipe End Cap

Titanium Gr 5 End Cap In Mexico
3.7165 End Pipe Cap
ANSI B16.9 Titanium Alloy Gr 5 Pipe End Cap
UNS R56400 Butt weld Cap
Titanium Grade 5 Pipe Cap In Spain

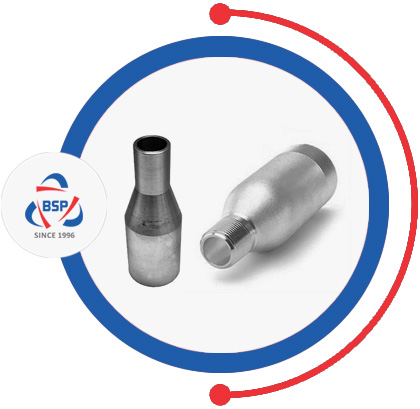

Titanium Gr 5 Pipe Nipple

3.7165 Swage Nipple
Titanium Gr 5 Nipple In Philippines
Titanium Grade 5 Pipe Nipple In Italy
ANSI B16.9 Titanium Alloy Gr 5 Barrel Nipple
UNS R56400 Butt weld Nipple

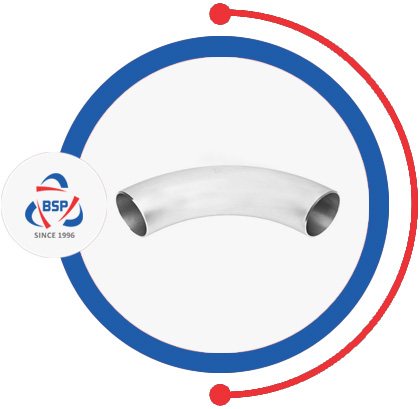

Titanium Gr 5 Pipe Bend

UNS R56400 Butt weld Bend
ANSI B16.9 Titanium Alloy Gr 5 Bend
Titanium Gr 5 Long Radius Bend In Japan
3.7165 Hot Induction Bend
Titanium Grade 5 Piggable Bend In Malaysia

Equivalent Grades of Titanium Gr 5 Buttweld Fittings

STANDARD	UNS	WERKSTOFF NR.
Titanium Gr.5	R56400	3.7165

View Thickness Table Of Titanium Gr 5 Buttweld Fittings, We have Global sales network for Titanium Gr 5 LR Elbow, Wide Stockist Of Werkstoff No 3.7165 Seamless Fittings In India.

ASTM B348 Titanium Gr 5 Buttweld Fittings

Seamless/ Welded 100% Radiography Tested
Products		Size
ASTM B348 Titanium Grade 5 Elbow – Long Radius	ASTM B348 Titanium Grade 5 45° Elbow	Sizes 1/2″ – 48″
ASTM B348 Titanium Grade 5 Elbow – Short Radius	ASTM B348 Titanium Grade 5 Cross
ASTM B348 Titanium Grade 5 3D Elbow	ASTM B348 Titanium Grade 5 5D Elbow
ASTM B348 Titanium Grade 5 Stub End	ASTM B348 Titanium Grade 5 Pipe Bend
ASTM B348 Titanium Grade 5 Fabricated Tee	ASTM B348 Titanium Grade 5 End Cap
ASTM B348 Titanium Grade 5 Reducer	ASTM B348 Titanium Grade 5 Tee
ASTM B348 Titanium Grade 5 Reducing Elbow	ASTM B348 Titanium Grade 5 Pipe Nipple
ASTM B348 Titanium Grade 5 Reducing Cross	ASTM B348 Titanium Grade 5 Eccentric Reducer
ASTM B348 Titanium Grade 5 Concentric Reducer	ASTM B348 Titanium Grade 5 Welded Fittings

Check available Sizes of ASME SB 366 Titanium Gr 5 Pipe Reducer, Ask For Ready Stock of UNS R56400 Stub End in Mumbai, India.

BAGODA

Quick Contact

Call Us

+91 22 - 66151721

Need Help? Send us Email

sales@bagodasteelproject.com

ASME B16.9 Titanium Gr 5 Short and Long Radius Elbows Dimensions

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

ASME B16.9 Titanium Gr 5 Tee & Cap Dimensions

Nominal Pipe Size (inches)	Outside Diameter		Caps	Straight Crosses	Straight Tees	Stub Ends
Nominal Pipe Size (inches)	(mm)	(inches)	Length (inches)	Center to End (inches)	Center to End (inches)	Lap Diameter (inches)	Long Length (inches)	Short Length (inches)
1	33.4	1.315	1 1/2	1 1/2	1 1/2	2	4	2
1/2	21.3	0.840	1	–	1	1 3/8	3	2
3/4	26.7	1.050	1	–	1 1/8	1 11/16	3	2
1 1/4	42.2	1.660	1 1/2	1 7/8	1 7/8	2 1/2	4	2
1 1/2	48.3	1.900	1 1/2	2 1/4	2 1/4	2 7/8	4	2
2	60.3	2.375	1 1/2	2 1/2	2 1/2	3 5/8	6	2 1/2
2 1/2	73.0	2.875	1 1/2	3	3	4 1/8	6	2 1/2
3	88.9	3.500	2	3 3/8	3 3/8	5	6	2 1/2
3 1/2	101.6	4.000	2 1/2	3 3/4	3 3/4	5 1/2	6	3
4	114.3	4.500	2 1/2	4 1/8	4 1/8	6 3/16	6	3
5	141.3	5.563	3	4 7/8	4 7/8	7 5/16	8	3
6	168.3	6.625	3 1/2	5 5/8	5 5/8	8 1/2	8	3 1/2
8	219.1	8.625	4	7	7	10 5/8	8	4
10	273.1	10.750	5	8 1/2	8 1/2	12 3/4	10	5
12	323.9	12.750	6	10	10	15	10	6

ASME B16.9 Titanium Gr 5 Concentric & Eccentric Reducer Dimensions

Nominal Pipe Size	Outside Diameter		Reducers
Reduced from (inches)	(mm)	(inches)	Reduced to (inches)	Concentric & Eccentric Length (inches)
1	33.4	1.315	3/8	2
			1/2	2
			3/4	2
1/2	21.3	0.840	1/4	1 1/2
1/2	21.3	0.840	3/8	1 1/2
3/4	26.7	1.050	3/8	2
3/4	26.7	1.050	1/2	2
1 1/4	42.2	1.660	1/2	2
			3/4	2
			1	2
1 1/2	48.3	1.900	1/2	2 1/2
			3/4	2 1/2
			1	2 1/2
			1 1/4	2 1/2
2	60.3	2.375	3/4	3
			1	3
			1 1/4	3
			1 1/2	3
2 1/2	73.0	2.875	1	3 1/2
			1 1/4	3 1/2
			1 1/2	3 1/2
			2	3 1/2
3	88.9	3.500	1	3 1/2
			1 1/2	3 1/2
			2	3 1/2
			2 1/2	3 1/2
3 1/2	101.6	4.000	1 1/4	4
			1 1/2	4
			2	4
			2 1/2	4
			3	4
4	114.3	4.500	1 1/2	4
			2	4
			2 1/2	4
			3	4
			3 1/2	4
5	141.3	5.563	2	5
			2 1/2	5
			3	5
			3 1/2	5
			4	5
6	168.3	6.625	2 1/2	5 1/2
			3	5 1/2
			3 1/2	5 1/2
			4	5 1/2
			5	5 1/2
8	219.1	8.625	3	6
			3 1/2	6
			4	6
			5	6
			6	6
10	273.1	10.750	4	7
			5	7
			6	7
			8	7
12	323.9	12.750	5	8
			6	8
			8	8
			10	8

Titanium Gr 5 Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.96	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31

Ready Stock Titanium Gr 5 Pipe Fittings

Titanium Gr 5 Piggable Bends In Indonesia
Titanium JIS NCF Gr 5 Mandrel Pipe Bend
ASTM B348 Titanium Grade 5 45 Degree Elbow
Titanium Alloy Gr 5 Two Joint Pipe Fittings In Malaysia
UNS R56400 Pipe Fittings
Titanium Gr 5 Seamless Fittings In Mexico
Titanium Gr 5 Buttweld Fittings In Philippines
Sch 80 Titanium Gr 5 Pipe Fittings
ASTM B348 Titanium Gr 5 Stub End
ASTM B348 Titanium Gr 5 Pipe Fittings
Schedule 80 Titanium Gr 5 Grade Long Stub End
ASME SB348 Ti Alloy Gr 5 Lateral Tee
SCH 60 Ti Alloy Gr 5 Pipe Nipples
1/2” - 16” ASTM B348 Titanium Grade 5 Butt weld Elbow
Titanium Grade 5 1D Elbow/3D Elbow/5D Elbow In Japan
DIN 3.7165 Swage Nipple
Ti Alloy Gr 5 Elbow In Italy
Titanium Alloy Gr 5 Long Radius Bend Stockholder
Nickel Titanium Grade 5 End Cap Distributor
5" Nb Sch10s Titanium Gr 5 90° Short Radius Elbow
DIN 5605 Titanium Gr 5 Elbow Exporter
Ti Alloy Gr 5 Lap Joint Stub End In Spain
Titanium Grade 5 Barrel Nipple Supplier in Mumbai
ANSI B16.9 Titanium Gr 5 Pipe Cap
Ti Alloy Gr 5 Buttweld Nipple In Kuwait
Titanium Grade 5 Reducing Nipple
3.7165 Butt weld Fittings
Titanium Gr 5 Reducer
Nickel Titanium Grade 5 Pipe Fittings Manufacturer
Ti Alloy Gr 5 Equal Cross In Singapore
ASME B16.9 Titanium Gr 5 Buttweld Fittings
Ti Alloy Gr 5 180° LR Return Bends
Titanium Gr 5 Two Halve Butt weld Fittings
Titanium Grade 5 Long Radius Elbow In Indonesia
ANSI B16.9 Titanium Gr 5 Short Stub End
ASME B16.9 Schedule 10 Ti Alloy Gr 5 Elbow
Titanium Grade 5 Eccentric Reducer Manufacturer
15 NB SCH 10 Titanium Gr 5 90° Short Radius Elbow
Titanium Gr 5 Welded Fittings In Malaysia
Titanium Gr 5 SR Elbow In Mexico
Titanium Gr 5 Butt Weld Pipe Fittings In Philippines
Titanium Alloy Gr 5 Eccentric Reducer In Japan
Ti Alloy Gr 5 Pipe Elbow In Italy
ASTM B348 Titanium Gr 5 Buttweld Fittings
Titanium Gr 5 Long Stub End In Spain
Titanium Gr 5 Pipe Bend In Kuwait
Titanium Grade 5 LR Elbow Stockist
Ti Alloy Gr 5 Butt weld Tee In Singapore

Titanium Gr 5 Butt weld Fittings Chemical Composition

Grade	N	C	H	Fe	O	Al	V
Ti Grade 5	0.05 max	0.10 max	0.01 max	0.40 max	0.20 max	5.50-6.75	3.50-4.50

Titanium Gr 5 Pipe Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr 5	4.43 g/cm3	1632 °C (2970 °F)	Psi – 138000 , MPa – 950	Psi – 128000 , MPa – 880	14 %

Titanium Gr 5 Pipe Fittings

ASTM B348 Titanium Gr 5 Buttweld Pipe Fittings, ANSI B16.9 Titanium Alloy Gr 5 Short Radius Elbow, Ti Alloy Gr 5 90 Deg. Elbow, Titanium Gr 5 Elbow In Italy, Ti Alloy Gr 5 Buttweld Fittings Price in India.
