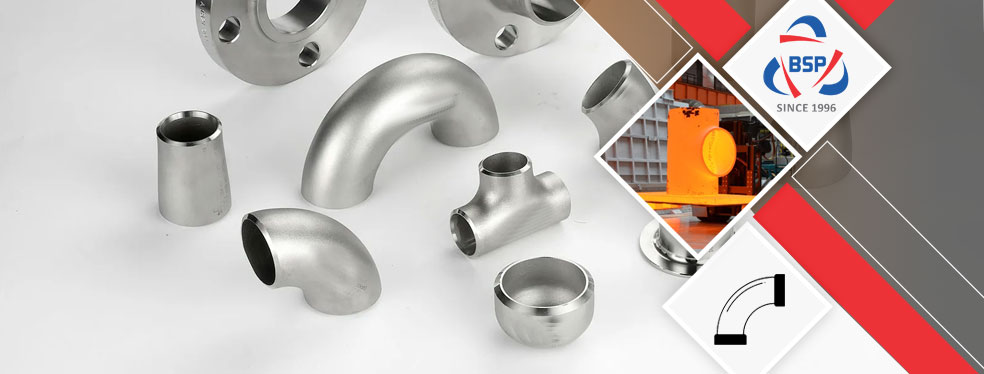

Nickel Alloy 201 Pipe Fittings

ANSI B16.9 Nickel Alloy 201 Short Radius Elbow, Alloy 201 90 Deg. Elbow Price in India.

Bagoda Steel is a well-known trader and stockist of Nickel 201 Pipe Fittings, which resists chloride environments and sulphide strain corrosion. Intuitively, its miles without difficulty general through consumers and architects with constrained enjoy with the various products. Each product shape and production technique of these pipe fittings has its personal inherent troubles and capability defects. The only manner to solidify liquid of these pipe fittings is to pour it into heavy, thick - walled iron ingot moulds, which stand on stout iron plates referred to as stools. We use the best first-class of raw material to produce these Nickel UNS N02201 End Cap Pipe Fittings, that is being certified. The makes use of these pipe fittings consist of fracture vital airframe systems and for offshore tubular. It has exquisite trendy corrosion resistance and advanced in maximum environments.

Industrial Product
Nickel Alloy 201 Pipe Fittings

Nickel 201 Equal Tee In Kuwait, UNS N02201 LR Elbow, DIN 2.4068 Reducer, Nickel 201 Stub End Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

They have proven right formability in a whole lot of fabrications, together with it's also kind of double the strength of fashionable austenitic steels. It is likewise proof against chloride strain corrosion cracking (SCC) at temperatures of as much as approximately a hundred and fifty Degree C. Even whilst the device has enough energy in these pipe fittings, allowance need to be made for better spring - returned due to the grade’s excessive strength. We also are one of the outstanding stockiest for excessive first-class of these Nickel WNR 2.4068 Dish Cap Pipe Fittings, wherein the excessive strength can pose troubles.

We endorse a most warm forming temperature among 2010 Degree and 2100 Degree F (1100 Degree to 1150 Degree C) in these pipe fittings. If the form of our products isn't compact, the rims can be substantially cooler than the bulk, and there's chance of cracking within the cooler regions. They are relatively greater hard to device than the collection of austenitic steels. Ni-Alloy 201 Cross Pipe Fittings additionally has exquisite trendy corrosion resistance to sulphuric acid and to chloride strain corrosion cracking. It is a nickel - molybdenum alloy with first rate resistance to pitting, corrosion, and pressure - corrosion cracking plus, thermal balance advanced to that of alloy.

Material Specification Chart of Nickel Alloy 201 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

Nickel Alloy 201 PIPE FITTINGS MANUFACTURING STANDARDS

ASTM B366/B366M Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM B366 – ASME SB366 Standard Specification for Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of Nickel Alloy 201 Butt weld Pipe Fittings

Nickel Alloy 201 Butt weld Elbow
Nickel Alloy 201 Butt weld Elbow
  • 2.4068 Short Radius Elbow
  • Nickel 201 90 Degree Elbow In Indonesia
  • ANSI B16.9 Nickel Alloy 201 5D Elbow
  • Nickel Alloy 201 180 Deg Elbow
  • UNS N02201 LR Elbow
  • Nickel 201 45 Degree Elbow In Malaysia
  • Alloy 201 3D Butt weld Elbow
Nickel Alloy 201 Butt weld Tee
Nickel Alloy 201 Butt weld Tee
  • 2.4068 Buttweld Tees
  • Nickel 201 Tee In Mexico
  • Nickel 201 Unequal Tee
  • Nickel Alloy 201 Reducing Tee In Philippines
  • Alloy 201 Equal Tee
  • UNS N02201 Butt weld Tee
  • ANSI B16.9 Nickel Alloy 201 Buttweld Tee
Nickel Alloy 201 Butt weld Cross
Nickel Alloy 201 Butt weld Cross
  • ANSI B16.9 Nickel Alloy 201 Buttweld Cross
  • Nickel 201 Cross In Japan
  • UNS N02201 Butt weld Cross
  • Nickel Alloy 201 Unequal Cross
  • Nickel 201 Reducing Cross In Italy
  • Alloy 201 Equal Cross
  • 2.4068 Buttweld Cross
Nickel Alloy 201 Concentric Reducer
Nickel Alloy 201 Concentric Reducer
  • UNS N02201 Concentric Reducer
  • 2.4068 Concentric Reducer
  • ANSI B16.9 Nickel 201 Concentric Reducer
  • Alloy 201 Concentric Reducer In Spain
  • Nickel Alloy 201 Concentric Reducer In Kuwait
Nickel Alloy 201 Eccentric Reducer
Nickel Alloy 201 Eccentric Reducer
  • 2.4068 Eccentric Reducer
  • Alloy 201 Eccentric Reducer
  • UNS N02201 Eccentric Reducer
  • Nickel 201 Eccentric Reducer
  • ANSI B16.9 Nickel Alloy 201 Eccentric Reducer
Nickel Alloy 201 Stub End
Nickel Alloy 201 Stub End
  • Nickel 201 Short Stub End In Indonesia
  • Alloy 201 Long Stub End In Singapore
  • UNS N02201 Butt weld Stub End
  • ANSI B16.9 Nickel Alloy 201 Lap Joint Stub End
  • 2.4068 Short Stub End
Nickel Alloy 201 Pipe End Cap
Nickel Alloy 201 Pipe End Cap
  • Alloy 201 Pipe Cap In Mexico
  • 2.4068 End Pipe Cap
  • UNS N02201 Butt weld Cap
  • Nickel 201 End Cap In Spain
  • ANSI B16.9 Nickel Alloy 201 Pipe End Cap
Nickel Alloy 201 Pipe Nipple
Nickel Alloy 201 Pipe Nipple
  • Alloy 201 Pipe Nipple In Kuwait
  • ANSI B16.9 Nickel Alloy 201 Barrel Nipple
  • UNS N02201 Butt weld Nipple
  • 2.4068 Swage Nipple
  • Nickel 201 Nipple In Singapore
Nickel Alloy 201 Pipe Bend
Nickel Alloy 201 Pipe Bend
  • UNS N02201 Butt weld Bend
  • 2.4068 Hot Induction Bend
  • Alloy 201 Piggable Bend In Kuwait
  • ANSI B16.9 Nickel Alloy 201 Bend
  • Nickel 201 Long Radius Bend In Malaysia

Equivalent Grades of Nickel Alloy 201 Buttweld Fittings

STANDARD UNS WNR. EN JIS GOST BS
Nickel 201 N02201 2.4068 LC-Ni 99 NW 2201 НП-2 NA 12
Pipe Fittings Dimensions

View Thickness Table Of Nickel 201 Buttweld Fittings, We have Global sales network for Nickel Alloy 201 LR Elbow, Wide Stockist Of Werkstoff No 2.4068 Seamless Fittings In India.

Check available Sizes of ASME SB 366 Nickel 201 Pipe Reducer, Ask For Ready Stock of UNS N02201 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 Nickel Alloy 201 Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 Nickel Alloy 201 Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 Nickel Alloy 201 Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

Nickel Alloy 201 Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
201 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
201x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
201x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Nickel Alloy 201 Pipe Fittings

  • 2.4068 Butt weld Fittings
  • Alloy 201 1D Elbow/3D Elbow/5D Elbow In Indonesia
  • Alloy 201 Long Radius Elbow In Malaysia
  • Nickel 201 Reducer In Mexico
  • Nickel Alloy 201 Eccentric Reducer In Philippines
  • 201 Nickel Buttweld Nipple In Japan
  • Schedule 80 Nickel 201 Grade Long Stub End
  • Alloy 201 Reducing Nipple In Italy
  • Nickel Alloy 201 Long Radius Bend Stockholder
  • 201 Nickel 180° LR Return Bends
  • ASTM B366 Nickel 201 Buttweld Fittings
  • DIN 2.4068 Swage Nipple
  • 5" Nb Sch10s Nickel 201 90° Short Radius Elbow
  • Nickel 201 Piggable Bends In Spain
  • UNS N02201 Welded Fittings
  • Alloy 201 Pipe Elbow In Singapore
  • UNS N02201 End Cap Distributor
  • Alloy 201 Mandrel Pipe Bend In Kuwait
  • ASTM B366 Nickel 201 Stub End
  • 1/2” - 16” ASTM B366 Alloy 201 Butt weld Elbow
  • Nickel 201 Butt Weld Pipe Fittings
  • Alloy 201 Lap Joint Stub End
  • Alloy 201 LR Elbow Stockist
  • Nickel 201 SR Elbow In Indonesia
  • SCH 60 Nickel Alloy 201 Pipe Nipples
  • ASTM B366 Nickel 201 Pipe Fittings
  • ASME B16.9 Schedule 10 Nickel Alloy 201 Elbow
  • Alloy 201 Barrel Nipple Supplier in Mumbai
  • ANSI B16.9 Nickel 201 Short Stub End
  • Nickel 201 Two Halve Butt weld Fittings
  • UNS N02201 Pipe Bend
  • ASME B16.9 Nickel 201 Buttweld Fittings
  • Nickel Alloy 201 Butt weld Tee
  • Nickel 201 Buttweld Fittings In Malaysia
  • Nickel Alloy 201 Elbow In Mexico
  • ASTM B366 Alloy 201 45 Degree Elbow
  • Sch 80 Nickel 201 Pipe Fittings
  • Nickel Alloy 201 Two Joint Pipe Fittings In Philippines
  • 15 NB SCH 10 Nickel 201 90° Short Radius Elbow
  • UNS N02201 Pipe Fittings
  • UNS N02201 Pipe Fittings Manufacturer
  • Nickel 201 Long Stub End
  • ASME SB366 Nickel Alloy 201 Lateral Tee
  • Alloy 201 Eccentric Reducer Manufacturer
  • DIN 2605 Nickel 201 Elbow Exporter
  • ANSI B16.9 Nickel 201 Pipe Cap
  • Nickel 201 Seamless Fittings In Japan
  • Nickel Alloy 201 Equal Cros In Philippiness

Nickel Alloy 201 Butt weld Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni
Nickel 201 0.02 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min

Nickel Alloy 201 Pipe Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 201 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %

Export Destinations For Nickel Alloy 201 Butt weld Pipe Fittings

industry
