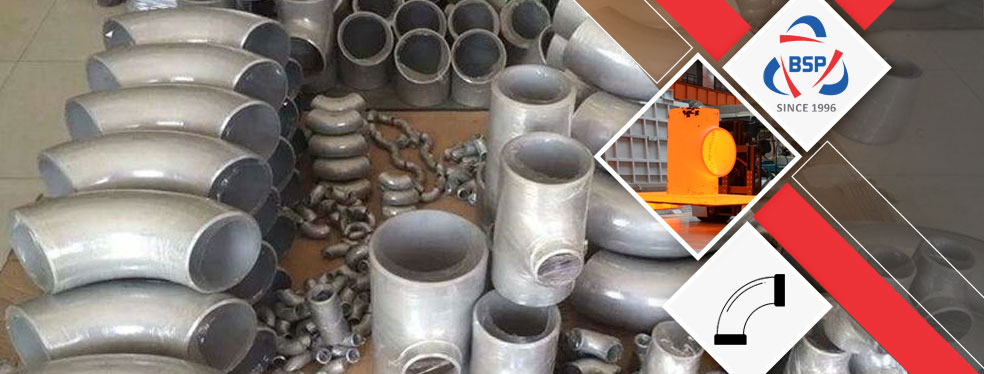

Incoloy 825 Pipe Fittings

Incoloy 825 Elbow In Singapore, Alloy 825 90 Deg. Elbow, ANSI B16.9 Incoloy Alloy 825 Short Radius Elbow Price in India.

Bagoda Steel is a well-known exporter and stockist of Incoloy Alloy 825 Pipe Fittings, which has suitable impact strength. It does not suffer from precipitation of brittle micro constituents, as properly nor below -50 Degree C for the purpose that of its ductile – to – brittle – transition. The complexity and variety of microstructure concerned in our Incoloy Alloy UNS N08825 Stub End Pipe Fittings make it as an alternative tough to quantitatively describe illness evolution because of irradiation. It is obtainable in custom designed styles and sizes to our clients. It is sued in chemicals by means of having different elements, wherein generally the alternative detail oxidizes iron and on occasion electrons are taken and on occasion. Applications in different industries consist of pollutants manage gadget which includes flue fueloline desulfurization gadget, pulp and paper, energy generation, chemical, pharmaceutical, desalination, mining, metallurgical and marine industries.

Industrial Product
Incoloy 825 Pipe Fittings

Incoloy 825 Equal Tee In Philippines, Nickel Alloy 825 Cross, UNS N08825 Stub End, Incoloy® Alloy 825 LR Elbow, DIN 2.4858 Reducer Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

We are one of the pioneer distributors and supplier for these excessive pleasant Pipe Fittings, that's the remaining detail to be produced earlier than the violent crumble of a supernova, scatters the iron into space. Compounds wherein these Incoloy Alloy WNR 2.4858 Short Stub End Pipe Fittings has electrons taken are referred to as ferrous compounds, wherein compounds wherein metal has electrons taken are referred to as ferric compounds. The compounds of these Pipe Fittings are susceptible decreasing agents, wherein the maximum not unusual place ferrous compound is ferrous sulphate.

Ferric compounds are oxidizing agents, wherein the maximum not unusual ferric compound is ferric oxide, the equal element as rust. One purpose why these Pipe Fittings rusts is due to the fact ferric oxide is an oxidizing agent. It oxidizes iron, rusting it even beneath paint, and this is why if there's a small scratch within the paint, the entirety can rust. It is broadly used as it combines top notch formability and moderate strength with advanced corrosion resistance. Nickel Alloy 825 Long Stub End Pipe Fittings is regularly utilized in oil and fueloline applications which consist of process, seawater, and firewater and subsea pipework systems, with related risers, manifolds, strain vessels, valves and warmth exchangers.

Material Specification Chart of Incoloy 825 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Connection Welding
Manufacturing Process Push, Press, Forge, Cast, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized Manufacturer of 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

Incoloy 825 PIPE FITTINGS MANUFACTURING STANDARDS

ASTM B366/B366M Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
MSS SP-43 Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 – Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM B366 – ASME SB366 Standard Specification for Piping Fitting
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.25 Buttwelding Ends
ASME B16.28 SR Elbows and Buttwelding Returns
API 590-605
ASME B16.9 		‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of Incoloy 825 Butt weld Pipe Fittings

Incoloy 825 Butt weld Elbow
Incoloy 825 Butt weld Elbow
  • Incoloy® Alloy 825 45 Degree Elbow In Indonesia
  • Nickel Alloy 825 180 Deg Elbow
  • Incoloy 825 90 Degree Elbow In Malaysia
  • UNS N08825 LR Elbow
  • ANSI B16.9 Incoloy Alloy 825 5D Elbow
  • Alloy 825 3D Butt weld Elbow
  • 2.4858 Short Radius Elbow
Incoloy 825 Butt weld Tee
Incoloy 825 Butt weld Tee
  • ANSI B16.9 Incoloy 825 Buttweld Tee
  • Incoloy 825 Tee In Mexico
  • 2.4858 Buttweld Tees
  • Incoloy 825 Unequal Tee In Philippines
  • UNS N08825 Butt weld Tee
  • Incoloy® Alloy 825 Reducing Tee
  • Alloy 825 Equal Tee
Incoloy 825 Butt weld Cross
Incoloy 825 Butt weld Cross
  • UNS N08825 Butt weld Cross
  • Alloy 825 Equal Cross
  • Incoloy 825 Cross In Japan
  • ANSI B16.9 Incoloy Alloy 825 Buttweld Cross
  • 2.4858 Buttweld Cross
  • Incoloy Alloy 825 Unequal Cross In Italy
  • Incoloy 825 Reducing Cross
Incoloy 825 Concentric Reducer
Incoloy 825 Concentric Reducer
  • Alloy 825 Concentric Reducer In Kuwait
  • ANSI B16.9 Incoloy Alloy 825 Concentric Reducer
  • 2.4858 Concentric Reducer
  • Nickel Alloy 825 Concentric Reducer In Spain
  • UNS N08825 Concentric Reducer
Incoloy 825 Eccentric Reducer
Incoloy 825 Eccentric Reducer
  • 2.4858 Eccentric Reducer
  • Nickel Alloy 825 Eccentric Reducer In Singapore
  • ANSI B16.9 Incoloy Alloy 825 Eccentric Reducer
  • UNS N08825 Eccentric Reducer
  • Alloy 825 Eccentric Reducer In Indonesia
Incoloy 825 Stub End
Incoloy 825 Stub End
  • UNS N08825 Butt weld Stub End
  • Alloy 825 Long Stub End In Malaysia
  • ANSI B16.9 Incoloy Alloy 825 Lap Joint Stub End
  • 2.4858 Short Stub End
  • Incoloy 825 Short Stub End In Kuwait
Incoloy 825 Pipe End Cap
Incoloy 825 Pipe End Cap
  • Incoloy 825 End Cap In Mexico
  • Alloy 825 Pipe Cap In Spain
  • ANSI B16.9 Incoloy Alloy 825 Pipe End Cap
  • UNS N08825 Butt weld Cap
  • 2.4858 End Pipe Cap
Incoloy 825 Pipe Nipple
Incoloy 825 Pipe Nipple
  • 2.4858 Swage Nipple
  • ANSI B16.9 Incoloy Alloy 825 Barrel Nipple
  • UNS N08825 Butt weld Nipple
  • Incoloy 825 Nipple In Philippines
  • Alloy 825 Pipe Nipple In Italy
Incoloy 825 Pipe Bend
Incoloy 825 Pipe Bend
  • Alloy 825 Piggable Bend In Indonesia
  • UNS N08825 Butt weld Bend
  • Incoloy 825 Long Radius Bend In Japan
  • ANSI B16.9 Incoloy Alloy 825 Bend
  • 2.4858 Hot Induction Bend

Equivalent Grades of Incoloy 825 Buttweld Fittings

STANDARD UNS WNR. AFNOR EN JIS BS GOST OR
Incoloy 825 N08825 2.4858 NC22DNB4M NiCr22Mo9Nb NCF 825 NA 21 ЭП703 ЭИ602
Pipe Fittings Dimensions

View Thickness Table Of Incoloy 825 Buttweld Fittings, We have Global sales network for Incoloy 825 LR Elbow, Wide Stockist Of Werkstoff No 2.4858 Seamless Fittings In India.

Check available Sizes of ASME SB 366 Incoloy 825 Pipe Reducer, Ask For Ready Stock of UNS N08825 Stub End in Mumbai, India.

BAGODA

Quick Contact

ASME B16.9 Incoloy 825 Short and Long Radius Elbows Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter 		45°Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Radius
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

ASME B16.9 Incoloy 825 Tee & Cap Dimensions

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Caps Straight Crosses Straight Tees Stub Ends
(mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1/2 21.3 0.840 1 – 1 1 3/8 3 2
3/4 26.7 1.050 1 – 1 1/8 1 11/16 3 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

ASME B16.9 Incoloy 825 Concentric & Eccentric Reducer Dimensions

Nominal
Pipe
Size		 Outside
Diameter 		Reducers
Reduced from
(inches)		 (mm) (inches) Reduced to
(inches) 		Concentric & Eccentric Length
(inches)
1 33.4 1.315 3/8 2
1/2 2
3/4 2
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2 2
1 1/4 42.2 1.660 1/2 2
3/4 2
1 2
1 1/2 48.3 1.900 1/2 2 1/2
3/4 2 1/2
1 2 1/2
1 1/4 2 1/2
2 60.3 2.375 3/4 3
1 3
1 1/4 3
1 1/2 3
2 1/2 73.0 2.875 1 3 1/2
1 1/4 3 1/2
1 1/2 3 1/2
2 3 1/2
3 88.9 3.500 1 3 1/2
1 1/2 3 1/2
2 3 1/2
2 1/2 3 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2 4
2 4
2 1/2 4
3 4
4 114.3 4.500 1 1/2 4
2 4
2 1/2 4
3 4
3 1/2 4
5 141.3 5.563 2 5
2 1/2 5
3 5
3 1/2 5
4 5
6 168.3 6.625 2 1/2 5 1/2
3 5 1/2
3 1/2 5 1/2
4 5 1/2
5 5 1/2
8 219.1 8.625 3 6
3 1/2 6
4 6
5 6
6 6
10 273.1 10.750 4 7
5 7
6 7
8 7
12 323.9 12.750 5 8
6 8
8 8
10 8

Incoloy 825 Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.96 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Ready Stock Incoloy 825 Pipe Fittings

  • Incoloy Alloy 825 Long Radius Bend Stockholder
  • Alloy 825 Long Radius Elbow In Indonesia
  • Incoloy Alloy 825 Two Joint Pipe Fittings In Malaysia
  • ASME SB366 Incoloy® Alloy 825 Lateral Tee
  • Schedule 80 Incoloy 825 Grade Long Stub End
  • 825 Incoloy Buttweld Nipple
  • Alloy 825 Reducing Nipple In Mexico
  • Incoloy® Alloy 825 Lap Joint Stub End In Philippines
  • ASTM B366 Incoloy 825 Stub End
  • ANSI B16.9 Incoloy 825 Pipe Cap
  • Incoloy 825 SR Elbow In Japan
  • ASME B16.9 Inconel 825 Buttweld Fittings
  • Alloy 825 Eccentric Reducer Manufacturer
  • DIN 2605 Incoloy 825 Elbow Exporter
  • ASTM B366 Incoloy 825 Pipe Fittings
  • Inconel 825 Long Stub End In Italy
  • Incoloy JIS NCF 825 Mandrel Pipe Bend
  • SCH 60 Incoloy® Alloy 825 Pipe Nipples
  • Incoloy 825 Pipe Bend In Spain
  • Nickel Alloy 825 Pipe Fittings Manufacturer
  • 1/2” - 16” ASTM B366 Alloy 825 Butt weld Elbow
  • Incoloy 825 Butt Weld Pipe Fittings In Kuwait
  • DIN 2.4858 Swage Nipple
  • Incoloy 825 Two Halve Butt weld Fittings
  • Inconel Alloy 825 Eccentric Reducer In Singapore
  • Incoloy® Alloy 825 Pipe Elbow
  • 825 Incoloy 180° LR Return Bends
  • Sch 80 Incoloy 825 Pipe Fittings
  • Incoloy® Alloy 825 Elbow In Indonesia
  • 5" Nb Sch10s Incoloy 825 90° Short Radius Elbow
  • 2.4858 Butt weld Fittings
  • Nickel Alloy 825 End Cap Distributor
  • ASME B16.9 Schedule 10 Inconel® Alloy 825 Elbow
  • Incoloy 825 Buttweld Fittings In Malaysia
  • Alloy 825 1D Elbow/3D Elbow/5D Elbow
  • ANSI B16.9 Incoloy 825 Short Stub End
  • Incoloy 825 Reducer
  • Alloy 825 Barrel Nipple Supplier in Mumbai
  • Incoloy® Alloy 825 Butt weld Tee In Mexico
  • Incoloy 825 Piggable Bends In Philippines
  • Incoloy 825 Seamless Fittings In Japan
  • Alloy 825 LR Elbow Stockist
  • ASTM B366 Alloy 825 45 Degree Elbow
  • Incoloy 825 Welded Fittings In Italy
  • Incoloy® Alloy 825 Equal Cross In Spain
  • 15 NB SCH 10 Incoloy 825 90° Short Radius Elbow
  • UNS N08825 Pipe Fittings
  • ASTM B366 Incoloy 825 Buttweld Fittings

Incoloy 825 Butt weld Fittings Chemical Composition

Grade C Mn Si S Al Ti Fe Ni Cr
Incoloy 825 0.10 max 0.50 max 0.50 max 0.015 max 0.40 max 0.40 max 5.0 max 58.0 min 20.0 – 23.0

Incoloy 825 Pipe Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa -930 Psi – 75,000 , MPa – 517 42.5 %

Export Destinations For Incoloy 825 Butt weld Pipe Fittings

industry
