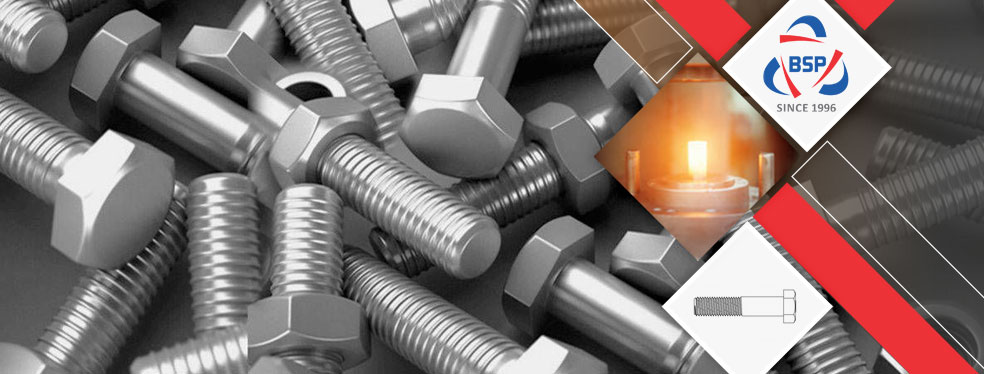

Hastelloy C276 Fasteners, Alloy C276 Bolts, Hastelloy Alloy C276 Nuts Manufacturer

Hastelloy® Alloy C276 Carriage Bolts Stockist, Hastelloy C276 Flat Washers In Kuwait, 2.4819 Nuts, UNS N10276 Allen Cap Screw, Grade C276 Hastelloy Alloy Hex Bolts, Hastelloy C276 Screws In Malaysia, NiCr21Mo14W Hastelloy Anchor Bolts, C276 Hastelloy Alloy Threaded Rod Supplier in Mumbai, India.

It is utilized in Food processing equipment; Marine and offshore engineering; Salt production; Caustic dealing with equipment; etc. Hastelloy Alloy WNR 2.4819 Fasteners is also used in manufacturing and dealing with of sodium hydroxide, in particular at temperatures above 300° F; Reactors and vessels wherein fluorine is generated and reacted with hydrocarbons. When working temperatures are anticipated to exceed 600° F, carbon content material turns into critical. The decrease carbon content material makes the material proof against graphitization and consequently much less problem to embrittlement. Care must be taken while selecting the anneal temperature and time at temperature for this may significantly have an impact on the mechanical properties and shape of the material.

Applications wherein it is able to be used encompass chemical processing and storage, artificial fiber production, and procedures wherein sodium hydroxide and fluorine is used. Other applications encompass aerospace and protection in addition to meals processing. Nickel Alloy C276 Fasteners has first rate resistance to caustic alkalis at numerous temperatures and concentrations. All warm working and cold working practices may be applied while shaping this alloy. Hot working temperatures must be among 1200° F and 2250° F with heavy forming to be completed at temperatures above 1600° F. Annealing must be completed at a temperature among 1300° F and 1600° F.

Material Specification Chart of Hastelloy C276 Fasteners

Standard	ASTM B574, ASME SB574
Size	M 02 to M 33
Length	3 mm to 200 mm
Threads:	METRIC, BSW, BSF, UNC, UNF or as required
Standard:	DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute ANSI B 18.2.4 2M ANSI B 28.2.4 1M Stud Bolt length are defined in ASME B16.5 standard Hex nuts are defined in ASME B18.2.2 ASME B18.5 BS en iso 3506 DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Scope of Manufacturer	Up to M36 / 1-1/2” Dia, up to 1100mm lg CNC Machined Fasteners, up to M100 / 4” Dia, up to 1500mm lg
Dia	M6 to M64 (1/4" - 2.5")
Length	12 MM - 500 MM (Upto 20 Inch)
IS	1363, 1364
DIN	931, 933
ISO	ISO 3506
Form of:	Hex, Square, Round, Threading as per Gauge Etc.
Head Drive:	Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate:	Manufacturer Test Certificate as per EN 10204 / 3.1
Finishing:	Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET
Production Process	M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element
Types	Nuts, Bolts, Screws, Socket Screw, Sockets, Studs, Screw, Nut, Spring Washers, Hex Set Screw, Socket Hexagon Head Screw, Cap Screw, Wing Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Studs, Anchors, Hex Nut,Marine Anchors, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Anchor Bolt, U- Bolts, J Bolts, T-Head Bolts, Mushroom Head Square Neck Bolts, Eye Bolt, Foundation Bolts, Structural Bolts

ANSI and/or ASME Standards (inch series)

ASME B18.1.1	Small Solid Rivets	ASME B18.8.1	Clevis Pins and Cotter Pins
ASME B18.1.2	Large Rivets	ASME B18.8.2	Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins
ASME B18.2.1	Square and Hex Bolts and Screws	ASME B18.9	Plow Bolts
ASME B18.2.2	Square and Hex Nuts	ASME B18.10	Track Bolts and Nuts
ASME B18.2.6	Fasteners for use in Structural Applications	ASME B18.11	Miniature Screws
ASME B18.3	Socket Cap, Shoulder and Set Screws	ASME B18.13	Screws and Washer Assemblies (Sems)
ASME B18.5	Round Head Bolts	ASME B18.15	Forged Eyebolts
ASME B18.6.2	Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws	ASME B18.17	Wing Nuts, Thumb Screws and Wing Screws
ASME B18.6.3	Machine Screws and Machine Screws Nuts	ASME B18.21.1	Lock Washers
ASME B18.6.4	Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws	ASME B18.22.1	Plain Washers
ASME B18.7	General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps	ASME B18.23.1	Beveled Washers

Various Types Of Hastelloy C276 Fasteners

Hastelloy C276 Bolts

ASME SB574 NiCr21Mo14W Hastelloy Bolts
ASTM B574 Nickel Alloy C276 Bolts
Hastelloy C276 Bolts In Indonesia
Alloy C276 Hex Bolts In Malaysia
2.4819 Heavy Hex Bolts
UNS N10276 Flange Bolts

Hastelloy C276 Nuts

ASTM B574 Grade C276 Hastelloy Alloy Nuts
Alloy C276 Hex Nuts In Philippines
ASME SB574 Hastelloy® Alloy C276 Nuts
Hastelloy C276 Wing Nuts In Mexico
2.4819 Heavy Hex Nuts
UNS N10276 Nuts

Hastelloy C276 Screw

ASTM B574 Nickel Alloy C276 Screw
2.4819 Hex Cap Screws
ASME SB574 Hastelloy Alloy C276 Screw
Alloy C276 Allen Cap Screw In Japan
UNS N10276 Socket Set Screws
Hastelloy C276 Screw In Italy

Hastelloy C276 Washers

Hastelloy® Alloy C276 Washers In Spain
ASTM B574 Hastelloy C276 Washers
ASME SB574 C276 Hastelloy Alloy Washers
UNS N10276 Lock Washers
Alloy C276 Flat Washer In Kuwait
2.4819 Beveled Washers

Hastelloy C276 Threaded Rods

UNS N10276 Threaded Rods
ASTM B574 C276 Hastelloy Alloy Threaded Rods
ASME SB574 Hastelloy Alloy C276 Threaded Rods
Alloy C276 Threaded Rods In Singapore
Hastelloy C276 Threaded Rods In Indonesia
2.4819 Threaded Rods

Hastelloy C276 Stud Bolts

Alloy C276 Stud Bolts In Malaysia
2.4819 Stud Bolts In Kuwait
ASTM B574 Hastelloy C276 Stud Bolts
UNS N10276 Stud Bolts
NiCr21Mo14W Hastelloy Tie Rods
ASME SB574 Grade C276 Hastelloy Alloy Stud

Hastelloy C276 Anchor Bolts

ASME SB574 Hastelloy® Alloy C276 Self Tapping Anchor
ASTM B574 C276 Hastelloy Alloy Anchor Bolts
Hastelloy C276 Anchor Bolts In Japan
UNS N10276 Concrete Anchors
Nickel Alloy C276 Wedge Anchor Bolt In Italy
2.4819 J Anchor Bolts

Equivalent Grades of Hastelloy C276 Fasteners

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	OR	EN
Hastelloy C276	2.4819	N10276	–	–	NW 0276	–	NiCr21Mo14W

View Size Table Of Hastelloy C276 Fasteners, We have Global sales network for Hastelloy Alloy C276 Stud Bolts, Wide Stockist Of Werkstoff No 2.4819 Nuts, Bolts, Washers In India.

Size Chart of Hastelloy C276 Bolts

Nominal or Basic Product Diameter		E		F			G		H			J	LT (Thread Length)		Y
Nominal or Basic Product Diameter		Body Diameter		Width Across Flats			Width Across Corners		Head Height			Wrenching Height	For Screw Lengths	For Screw Lengths	Transition Thread Length
1/4	0.25	0.25	0.245	7/16	0.438	0.428	0.505	0.488	5/32	0.163	0.150	0.106	0.750	1.000	0.250
5/16	0.3125	0.3125	0.3065	1/2	0.500	0.489	0.577	0.557	13/64	0.211	0.195	0.140	0.875	1.125	0.278
3/8	0.375	0.375	0.369	9/16	0.562	0.551	0.650	0.628	15/64	0.243	0.226	0.160	1.000	1.250	0.312
7/16	0.4375	0.4375	0.4305	5/8	0.625	0.612	0.722	0.698	9/32	0.291	0.272	0.195	1.125	1.375	0.357
1/2	0.5	0.5	0.493	3/4	0.750	0.736	0.866	0.840	5/16	0.323	0.302	0.215	1.250	1.500	0.385
9/16	0.5625	0.5625	0.5545	13/16	0.812	0.798	0.938	0.910	23/64	0.371	0.348	0.250	1.375	1.625	0.417
5/8	0.625	0.625	0.617	15/16	0.938	0.922	1.083	1.051	25/64	0.403	0.378	0.269	1.500	1.750	0.455
3/4	0.75	0.75	0.741	1-1/8	1.125	1.100	1.299	1.254	15/32	0.483	0.455	0.324	1.750	2.000	0.500
7/8	0.875	0.875	0.866	1-5/16	1.312	1.285	1.516	1.465	35/64	0.563	0.531	0.378	2.000	2.250	0.556
1	1	1	0.99	1-1/2	1.500	1.469	1.732	1.675	39/64	0.627	0.591	0.416	2.250	2.500	0.625
1-1/8	1.125	1.125	1.114	1-11/16	1.688	1.631	1.949	1.859	11/16	0.718	0.658	0.461	2.500	2.750	0.714
1-1/4	1.25	1.25	1.239	1-7/8	1.875	1.812	2.165	2.066	25/32	0.813	0.749	0.530	2.750	3.000	0.714
1-1/2	1.5	1.5	1.488	2-1/4	2.250	2.175	2.598	2.480	15/16	0.974	0.902	0.640	3.250	3.500	0.833

Check available Sizes of ASME SB 574 Hastelloy C276 Stud Bolt, Ask For Ready Stock of UNS N10276 Fasteners in Mumbai, India.

BAGODA

Quick Contact

Call Us

+91 22 - 66151721

Need Help? Send us Email

sales@bagodasteelproject.com

Hastelloy C276 Washer Weight & Dimensions

Bolt Size	A	B	C	Weight (lbs.) Per 100 Pieces
Bolt Size	ID	OD	Thickness	Weight (lbs.) Per 100 Pieces
1/2	9/16	13/8	0.109	4
5/8	11/16	13/4	0.134	8
3/4	13/16	2	0.148	11
7/8	15/16	21/4	0.165	15
1	11/16	21/2	0.165	19
11/8	11/4	23/4	0.165	22
11/4	13/8	3	0.165	26
13/8	11/2	31/4	0.180	33
11/2	15/8	31/2	0.180	38
15/8	13/4	33/4	0.180	43
13/4	17/8	4	0.180	50
17/8	2	41/4	0.180	57
2	21/8	41/2	0.180	63
21/4	23/8	43/4	0.220	83
21/2	25/8	5	0.238	96
23/4	27/8	51/4	0.259	110
3	31/8	51/2	0.284	130

Hastelloy C276 Stud Bolt Size Chart

Class 150 Flanges ASME B16.5 (Stud bolt sizes)						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 1/2	2 3/8	5/8	4	1/2	2 1/4	–
3/4	3 7/8	2 3/4	5/8	4	1/2	2 1/2	–
1	4 1/4	3 1/8	5/8	4	1/2	2 1/2	3
1 1/4	4 5/8	3 1/2	5/8	4	1/2	2 3/4	3 1/4
1 1/2	5	3 7/8	5/8	4	1/2	2 3/4	3 1/4
2	6	4 3/4	3/4	4	5/8	3 1/4	3 3/4
2 1/2	7	5 1/2	3/4	4	5/8	3 1/2	4
3	7 1/2	6	3/4	4	5/8	3 1/2	4
3 1/2	8 1/2	7	3/4	8	5/8	3 1/2	4
4	9	7 1/2	3/4	8	5/8	3 1/2	4
5	10	8 1/2	7/8	8	3/4	3 3/4	4 1/4
6	11	9 1/2	7/8	8	3/4	4	4 1/2
8	13 1/2	11 3/4	7/8	8	3/4	4 1/4	4 3/4
10	16	14 3/4	1	12	7/8	4 1/2	5
12	19	17	1	12	7/8	4 3/4	5 1/4
14	21	18 3/4	1 1/8	12	1	5 1/4	5 3/4
16	23 1/2	21 1/4	1 1/8	16	1	5 1/4	5 3/4
18	25	22 3/4	1 1/4	16	1 1/8	5 3/4	6 1/4
20	27 1/2	25	1 1/4	20	1 1/8	6 1/4	6 3/4
24	32	29 1/2	1 1/4	20	1 1/4	6 3/4	7 1/4
Class 300 Flanges ASME B16.5						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 3/4	2 5/8	5/8	4	1/2	2 1/2	3
3/4	4 5/8	3 1/4	3/4	4	5/8	3	3 1/2
1	4 7/8	3 1/2	3/4	4	5/8	3	3 1/2
1 1/4	5 1/4	3 7/8	3/4	4	5/8	3 1/4	3 3/4
1 1/2	6 1/8	4 1/2	7/8	4	3/4	3 1/2	4
2	6 1/2	5	3/4	8	5/8	3 1/2	4
2 1/2	7 1/2	5 7/8	7/8	8	3/4	4	4 1/2
3	8 1/4	6 5/8	7/8	8	3/4	4 1/4	4 3/4
3 1/2	9	7 1/4	7/8	8	3/4	4 1/4	5
4	10	7 7/8	7/8	8	3/4	4 1/2	5
5	11	9 1/4	7/8	8	3/4	4 3/4	5 1/4
6	12 1/2	10 5/8	7/8	12	3/4	4 3/4	5 1/2
8	15	13	1	12	7/8	5 1/2	6
10	17 1/2	15 1/4	1 1/8	16	1	6 1/4	6 3/4
12	20 1/2	17 3/4	1 1/4	16	1 1/8	6 3/4	7 1/4
14	23	20 1/4	1 1/4	20	1 1/8	7	7 1/2
16	25 1/2	22 1/2	1 3/8	20	1 1/4	7 1/2	8
18	28	24 3/4	1 3/8	24	1 1/4	7 3/4	8 1/4
20	30 1/2	27	1 3/8	24	1 1/4	8	8 3/4
24	36	32	1 5/8	24	1 1/2	9	10

Ready Stock Hastelloy C276 Fasteners

Alloy C276 Machine Bolt In Indonesia
Hastelloy C276 Flange Bolt In Malaysia
Hastelloy C276 Coupling Nut In Mexico
Hastelloy C276 Hex Set Screw Manufacturer
Nickel Alloy C276 Concrete Screw In Philippines
Alloy C276 Elevator Bolt
Grade C276 Hastelloy Alloy Ogee Washer
Hastelloy C276 Heavy Hex Bolts In Japan
Hastelloy C276 Double Ended Stud
ASTM B574 Hastelloy Alloy C276 Fasteners
Hastelloy® Alloy C276 T-Head Bolts In Italy
NiCr21Mo14W Hastelloy Self Locking Nuts
NiCr21Mo14W Hastelloy Structural Bolts
Alloy C276 Hex Head Bolt In Spain
Nickel Alloy C276 Hexagonal Washer
C276 Hastelloy Alloy Hex Washers
Hastelloy Alloy C276 Foundation Bolts Manufacturer
Hastelloy C276 Machine Fasteners Exporter
Nickel Alloy C276 Split / Lock Washer
Hastelloy Alloy C276 Dock Washer Stockholder
Alloy C276 Eye Bolts In Kuwait
Hastelloy Alloy C276 Wing Nuts
Hastelloy C276 Allen Cap Screw
Hastelloy Alloy C276 Stud Bolts In Singapore
Grade C276 Hastelloy Alloy Tooth Lock Washer
Hastelloy C276 Heavy Hex Nuts In Indonesia
ASME SB574 Hastelloy C276 Fender Washer
DIN 2.4819 Countersunk Washer
Nickel Alloy C276 Screws Distributor
Hastelloy C276 Customized Washer In Malaysia
Hastelloy C276 Square Nuts
Hastelloy® Alloy C276 Washers In Mexico
Grade C276 Hastelloy Alloy Bolts
Hastelloy C276 Lock Nut In Philippines
Hastelloy C276 Acorn Nuts In Japan
ASTM B574 Hastelloy C276 Nyloc Nuts
Nickel Alloy C276 Hex Domed Cap Nuts
Nickel Alloy C276 Hex Coupling Nut
Hastelloy® Alloy C276 Bolts
Alloy C276 Fasteners In Italy
Alloy C276 Anchor Bolts In Singapore
Hastelloy C276 Hex Head Bolts In Spain
Alloy C276 Tie Rods
Hastelloy C276 Carriage Bolt Stockist
Nickel Alloy C276 Plain Washer Supplier in Mumbai
ASTM B574 C276 Hastelloy Alloy Flat Washers
JIS NW 0276 Stud Bolts
Hastelloy Alloy C276 Socket Cap Screw In Kuwait
2.4819 Fasteners
C276 Hastelloy Alloy Threaded Rod
UNS N10276 Fasteners
ASTM B574 Hastelloy C276 Wing Nuts

Hastelloy C276 Chemical Composition

Grade	Ni	C	Cr	Co	Fe	Mn	Mo	P	Si	S	W	V
Hastelloy C276	Bal	0.010 max	20 – 22.5	2.5 max	2 – 6	0.50 max	12.5 – 14.5	0.02 max	0.08 max	0.02 max	2.5 – 3.5	0.35 max

Hastelloy C276 Fasteners Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

Hastelloy C276 Fasteners

Hastelloy® Alloy C276 Stud Bolts, Alloy C276 Nuts, Hastelloy C276 Fasteners In Japan, ASTM B574 Hastelloy C276 Washers, Hastelloy Alloy C276 Bolts Price in India.
