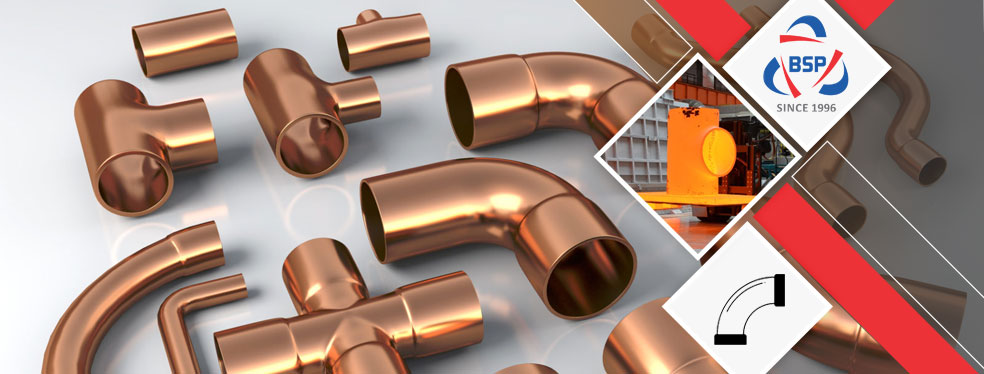

Copper Nickel 90/10 Pipe Fittings, Cupro Nickel 90/10 Elbow, Cu-Ni 90/10 Reducer Manufacturer

UNS C70600 Pipe Fittings, CuNi 90/10 LR Elbow, Copper Nickel 90/10 Equal Tee, 2.0872 Reducer, Cupro Nickel 90/10 Pipe Cap Stockist, Copper Nickel 90/10 Stub End In Singapore, Copper Nickel 90/10 Two Joint Pipe Fittings, Cu-Ni 90/10 Cross Supplier in Mumbai, India.

We also are a main producer and provider of our products product of nitrogen which makes certain to provide the resistance strength in competition to corrosion and warmth whilst supplying excessive tensile strength. Used for numerous commercial purposes, Copper Nickel UNS C70600 45-Degree Elbow Pipe Fittings may be procured from dependable producers and are supplied to the customers in numerous sizes, thicknesses, shapes, grades and weights as in keeping with their requirements. It is frequently used for meals and surgical appliances. Typical applications include: Food coaching device in particular in chloride environments. While it isn't absolutely rust - proof, it's far greater corrosion-resistant than different not unusual place of steels.

In many marine environments, it does show off floor corrosion, generally seen as brown staining, that's in particular related to crevices and hard floor finish. Copper Nickel WNR 2.0872 90-Degree Elbow Pipe Fittings is difficulty to pitting and crevice corrosion in heat chloride environments, and to strain corrosion cracking above approximately 122 Degree F (50 Degree C). It resists atmospheric corrosion, as properly as, reasonably oxidizing and decreasing environments. It is pretty recognized for its excellent resistance to erosion and corrosion in seawater, alongside excellent fabrication and welding properties. It also can be solution dealt with and to improve strength. Meanwhile, they're additionally being supplied in extraordinary styles and sizes to our customers.

Material Specification Chart of Copper Nickel 90/10 Pipe Fittings

Specifications	ASTM B348 / ASME SB348
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size	Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48"
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Connection	Welding
Manufacturing Process	Push, Press, Forge, Cast, etc.
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Specialized Manufacturer of	90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

Copper Nickel 90/10 PIPE FITTINGS MANUFACTURING STANDARDS

ASTM B348/B348M	Piping Fittings
ASME B16.9	Factory-Made Wrought Fittings Buttwelding
MSS SP-43	Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications
BS3799 –	Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry
ASTM B348 – ASME SB348	Standard Specification for Piping Fitting
ASME Standard	ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard	DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard	EN10253-2, EN10253-1
ASME B16.25	Buttwelding Ends
ASME B16.28	SR Elbows and Buttwelding Returns
API 590-605 ASME B16.9	‘Factory-Made Wrought Butt-welding Fittings’

Various Types Of Copper Nickel 90/10 Butt weld Pipe Fittings

Copper Nickel 90/10 Butt weld Elbow

2.0872 Short Radius Elbow
Cu-Ni 90/10 3D Butt weld Elbow In Indonesia
ANSI B16.9 Cupro Nickel 90/10 5D Elbow
UNS C70600 LR Elbow
Copper Nickel 90/10 90 Degree Elbow
CuNi 90/10 180 Deg Elbow In Singapore
CuNi 90/10 45 Degree Elbow

Copper Nickel 90/10 Butt weld Tee

2.0872 Buttweld Tees
Copper Nickel 90/10 Unequal Tee In Malaysia
Copper Nickel 90/10 Tee
CuNi 90/10 Reducing Tee
UNS C70600 Butt weld Tee
Cu-Ni 90/10 Equal Tee In Kuwait
ANSI B16.9 Copper Nickel 90/10 Buttweld Tee

Copper Nickel 90/10 Butt weld Cross

CuNi 90/10 Cross
2.0872 Buttweld Cross
UNS C70600 Butt weld Cross
ANSI B16.9 Cupro Nickel 90/10 Buttweld Cross
Cupro Nickel 90/10 Unequal Cross In Mexico
Cu-Ni 90/10 Equal Cross In Spain
Copper Nickel 90/10 Reducing Cross

Copper Nickel 90/10 Concentric Reducer

2.0872 Concentric Reducer
UNS C70600 Concentric Reducer
CuNi 90/10 Concentric Reducer In Philippines
ANSI B16.9 Cupro Nickel 90/10 Concentric Reducer
Cu-Ni 90/10 Concentric Reducer In Italy

Copper Nickel 90/10 Eccentric Reducer

90/10 CuNi Eccentric Reducer
UNS C70600 Eccentric Reducer
2.0872 Eccentric Reducer
ANSI B16.9 Cupro Nickel 90/10 Eccentric Reducer
Cu-Ni 90/10 Eccentric Reducer In Japan

Copper Nickel 90/10 Stub End

ANSI B16.9 Cupro Nickel 90/10 Lap Joint Stub End
UNS C70600 Butt weld Stub End
2.0872 Short Stub End
Cu-Ni 90/10 Long Stub End In Indonesia
Copper Nickel 90/10 Short Stub End In Malaysia

Copper Nickel 90/10 Pipe End Cap

Cu-Ni 90/10 Pipe Cap In Mexico
2.0872 End Pipe Cap
ANSI B16.9 Cupro Nickel 90/10 Pipe End Cap
UNS C70600 Butt weld Cap
Copper Nickel 90/10 End Cap In Philippines

Copper Nickel 90/10 Pipe Nipple

2.0872 Swage Nipple
Cu-Ni 90/10 Pipe Nipple In Japan
UNS C70600 Butt weld Nipple
Copper Nickel 90/10 Nipple In Italy
ANSI B16.9 Cupro Nickel 90/10 Barrel Nipple

Copper Nickel 90/10 Pipe Bend

Copper Nickel 90/10 Long Radius Bend In Spain
ANSI B16.9 Cupro Nickel 90/10 Bend
UNS C70600 Butt weld Bend
Cu-Ni 90/10 Piggable Bend In Kuwait
2.0872 Hot Induction Bend

Equivalent Grades of Copper Nickel 90/10 Buttweld Fittings

STANDARD	UNS	WERKSTOFF NR.
Copper nickel 90/10	C70600	2.0872

View Thickness Table Of Copper Nickel 90/10 Buttweld Fittings, We have Global sales network for Copper Nickel 90/10 LR Elbow, Wide Stockist Of Werkstoff No 2.0872 Seamless Fittings In India.

ASTM B348 Copper Nickel 90/10 Buttweld Fittings

Seamless/ Welded 100% Radiography Tested
Products		Size
ASTM B348 Copper Nickel 90/10 Elbow – Long Radius	ASTM B348 Copper Nickel 90/10 45° Elbow	Sizes 1/2″ – 48″
ASTM B348 Copper Nickel 90/10 Elbow – Short Radius	ASTM B348 Copper Nickel 90/10 Cross
ASTM B348 Copper Nickel 90/10 3D Elbow	ASTM B348 Copper Nickel 90/10 5D Elbow
ASTM B348 Copper Nickel 90/10 Stub End	ASTM B348 Copper Nickel 90/10 Pipe Bend
ASTM B348 Copper Nickel 90/10 Fabricated Tee	ASTM B348 Copper Nickel 90/10 End Cap
ASTM B348 Copper Nickel 90/10 Reducer	ASTM B348 Copper Nickel 90/10 Tee
ASTM B348 Copper Nickel 90/10 Reducing Elbow	ASTM B348 Copper Nickel 90/10 Pipe Nipple
ASTM B348 Copper Nickel 90/10 Reducing Cross	ASTM B348 Copper Nickel 90/10 Eccentric Reducer
ASTM B348 Copper Nickel 90/10 Concentric Reducer	ASTM B348 Copper Nickel 90/10 Welded Fittings

Check available Sizes of ASME SB 348 Copper Nickel 90/10 Pipe Reducer, Ask For Ready Stock of UNS C70600 Stub End in Mumbai, India.

BAGODA

Quick Contact

Call Us

+91 22 - 66151721

Need Help? Send us Email

sales@bagodasteelproject.com

ASME B16.9 Copper Nickel 90/10 Short and Long Radius Elbows Dimensions

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

ASME B16.9 Copper Nickel 90/10 Tee & Cap Dimensions

Nominal Pipe Size (inches)	Outside Diameter		Caps	Straight Crosses	Straight Tees	Stub Ends
Nominal Pipe Size (inches)	(mm)	(inches)	Length (inches)	Center to End (inches)	Center to End (inches)	Lap Diameter (inches)	Long Length (inches)	Short Length (inches)
1	33.4	1.315	1 1/2	1 1/2	1 1/2	2	4	2
1/2	21.3	0.840	1	–	1	1 3/8	3	2
3/4	26.7	1.050	1	–	1 1/8	1 11/16	3	2
1 1/4	42.2	1.660	1 1/2	1 7/8	1 7/8	2 1/2	4	2
1 1/2	48.3	1.900	1 1/2	2 1/4	2 1/4	2 7/8	4	2
2	60.3	2.375	1 1/2	2 1/2	2 1/2	3 5/8	6	2 1/2
2 1/2	73.0	2.875	1 1/2	3	3	4 1/8	6	2 1/2
3	88.9	3.500	2	3 3/8	3 3/8	5	6	2 1/2
3 1/2	101.6	4.000	2 1/2	3 3/4	3 3/4	5 1/2	6	3
4	114.3	4.500	2 1/2	4 1/8	4 1/8	6 3/16	6	3
5	141.3	5.563	3	4 7/8	4 7/8	7 5/16	8	3
6	168.3	6.625	3 1/2	5 5/8	5 5/8	8 1/2	8	3 1/2
8	219.1	8.625	4	7	7	10 5/8	8	4
10	273.1	10.750	5	8 1/2	8 1/2	12 3/4	10	5
12	323.9	12.750	6	10	10	15	10	6

ASME B16.9 Copper Nickel 90/10 Concentric & Eccentric Reducer Dimensions

Nominal Pipe Size	Outside Diameter		Reducers
Reduced from (inches)	(mm)	(inches)	Reduced to (inches)	Concentric & Eccentric Length (inches)
1	33.4	1.315	3/8	2
			1/2	2
			3/4	2
1/2	21.3	0.840	1/4	1 1/2
1/2	21.3	0.840	3/8	1 1/2
3/4	26.7	1.050	3/8	2
3/4	26.7	1.050	1/2	2
1 1/4	42.2	1.660	1/2	2
			3/4	2
			1	2
1 1/2	48.3	1.900	1/2	2 1/2
			3/4	2 1/2
			1	2 1/2
			1 1/4	2 1/2
2	60.3	2.375	3/4	3
			1	3
			1 1/4	3
			1 1/2	3
2 1/2	73.0	2.875	1	3 1/2
			1 1/4	3 1/2
			1 1/2	3 1/2
			2	3 1/2
3	88.9	3.500	1	3 1/2
			1 1/2	3 1/2
			2	3 1/2
			2 1/2	3 1/2
3 1/2	101.6	4.000	1 1/4	4
			1 1/2	4
			2	4
			2 1/2	4
			3	4
4	114.3	4.500	1 1/2	4
			2	4
			2 1/2	4
			3	4
			3 1/2	4
5	141.3	5.563	2	5
			2 1/2	5
			3	5
			3 1/2	5
			4	5
6	168.3	6.625	2 1/2	5 1/2
			3	5 1/2
			3 1/2	5 1/2
			4	5 1/2
			5	5 1/2
8	219.1	8.625	3	6
			3 1/2	6
			4	6
			5	6
			6	6
10	273.1	10.750	4	7
			5	7
			6	7
			8	7
12	323.9	12.750	5	8
			6	8
			8	8
			10	8

Copper Nickel 90/10 Buttweld Fittings Weights(Kg)

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.96	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31

Ready Stock Copper Nickel 90/10 Pipe Fittings

Inconel JIS NCF 90/10 Mandrel Pipe Bend
Schedule 80 Copper Nickel 90/10 Grade Long Stub End
Sch 80 Copper Nickel 90/10 Pipe Fittings
Cupro Nickel 90/30 Barrel Nipple Supplier in Mumbai
ASME SB348 CuNi 90/10 Lateral Tee
Cupro Nickel 90/10 Long Radius Bend Stockholder
Copper Nickel 90/10 Piggable Bends In Indonesia
Copper Nickel 90/10 Reducer In Malaysia
Copper Nickel 90/10 Welded Fittings In Mexico
SCH 60 CuNi 90/10 Pipe Nipples
Cu-Ni 90/10 Long Radius Elbow
Copper Nickel 90/10 Buttweld Fittings In Philippines
ASTM B348 Copper Nickel 90/10 Buttweld Fittings
Cu-Ni 90/10 Eccentric Reducer Manufacturer
15 NB SCH 10 Copper Nickel 90/10 90° Short Radius Elbow
90/10 Cu-Ni Buttweld Nipple
ASTM B348 Cu-Ni 90/10 45 Degree Elbow
Cu-Ni 90/10 Reducing Nipple In Japan
ASME B16.9 Copper Nickel 90/10 Buttweld Fittings
ASME B16.9 Schedule 10 CuNi 90/10 Elbow
Copper Nickel 90/10 Butt Weld Pipe Fittings In Italy
DIN 2.0872 Swage Nipple
Copper Nickel 90/10 SR Elbow In Spain
Copper Nickel 90/10 Seamless Fittings In Kuwait
CuNi 90/10 Elbow
ASTM B348 Copper Nickel 90/10 Stub End
Cupro Nickel 90/30 1D Elbow/3D Elbow/5D Elbow In Singapore
2.0872 Butt weld Fittings
CuNi 90/10 Pipe Elbow In Indonesia
ANSI B16.9 Copper Nickel 90/10 Pipe Cap
Copper Nickel 90/10 Pipe Bend In Malaysia
90/10 Copper Nickel End Cap Distributor
90/10 Cu-Ni 180° LR Return Bends
DIN 2605 Copper Nickel 90/10 Elbow Exporter
90/10 Copper Nickel Pipe Fittings Manufacturer
ANSI B16.9 Copper Nickel 90/10 Short Stub End
CuNi 90/10 Lap Joint Stub End In Mexico
1/2” - 16” ASTM B348 Cu-Ni 90/10 Butt weld Elbow
ASTM B348 Copper Nickel 90/10 Pipe Fittings
UNS C70600 Pipe Fittings
Copper Nickel 90/10 Long Stub End In Philippines
Copper Nickel 90/10 Two Halve Butt weld Fittings
Cu-Ni 90/10 LR Elbow Stockist
CuNi 90/10 Butt weld Tee In Japan
Cupro Nickel 90/10 Two Joint Pipe Fittings
Cupro Nickel 90/10 Eccentric Reducer In Italy
5" Nb Sch10s Copper Nickel 90/10 90° Short Radius Elbow
CuNi 90/10 Equal Cross In Spain

Copper Nickel 90/10 Butt weld Fittings Chemical Composition

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cu-Ni 90-10	88.6 min	1.0 max	.05 max	9-11 max	1.8 max	1 max

Copper Nickel 90/10 Pipe Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Copper Nickel 90-10	0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

Copper Nickel 90/10 Pipe Fittings

Cu-Ni 90/10 90 Deg. Elbow, Copper Nickel 90/10 Buttweld Fittings In Malaysia, ASTM B348 Copper Nickel 90/10 Buttweld Pipe Fittings, ANSI B16.9 Cupro Nickel 90/10 Short Radius Elbow, Copper Nickel 90/10 Elbow Price in India.
