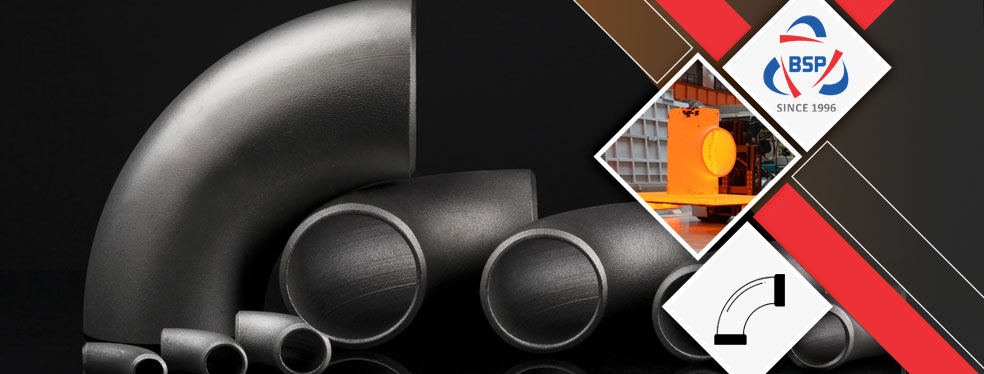

A234 WP5 Stub End, ASTM A234 WP5 Equal Tee, A234 WP5 LR Elbow In Malaysia, Cr-Mo WP5 Reducer, ASTM A234 WP5 Cross Supplier in Mumbai, India.
The construct chamber is stored at an improved temperature for the duration of the complete construct, and as a result comes out of the technique in a certainly elderly condition. This biocompatible pipe fittings is likewise properly appropriate for scientific implants. Alloy Steel ASTM A234 WP5 45-Degree Elbow Pipe Fittings has corrosion resistant in oxidizing and in mildly lowering environments, and true formability. They are very corrosion resistant in fairly oxidizing and mildly lowering environments. We maintain great knowledge in manufacturing, exporting, buying and selling and offering an extensive variety of these pipe fittings that have true sturdiness and are effectively weldable. They have fairly corrosion resistant in oxidizing and mildly lowering environments, together with chlorides.
It incorporates aluminium as an alloying detail is probably to be drastically lighter than one containing a considerable quantity of tin. Our presented pipe fittings are particularly processed through the use of most effective quality material with the contemporary technology and commercial familiar norms. They are majorly utilized in turbine airframe and engine square-parts, collectively with the use in surgical implants. ASME SA 234 Alloy Steel WP5 90-Degree Elbow Pipe Fittings possesses wonderful weldability and fabricality, and is the maximum corrosion resistance of all alloys. In strength generation, they're utilized in steam turbine condensers, oil coolers, auxiliary cooling structures and excessive strain pre-warmers at nuclear and fossil gas strength plants.
Material Specification Chart of Alloy Steel A234 WP5 Pipe Fittings
| Specifications | ASTM A234/ ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Fittings : 1/2" - 10" Welded Fittings : 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Connection | Welding |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 90 Deg. Elbows, 45 Deg. Elbow, Tee, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
Alloy Steel A234 WP5 Pipe Fittings Manufacturing Standards
| ASTM A234/A234M | Alloy Steel Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| MSS SP-43 | Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
| BS3799 – | Specification for pipe fittings, Socket-welding and threaded/screwed fitting for the petroleum industry |
| ASTM A234 – ASME SA234 | Standard Specification for Wrought Austenitic SS Piping Fitting |
| ASME Standard | ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel SR Elbows and Buttwelding Returns |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Butt-welding Fittings’ |
Various Types Of Cr-Mo WP5 Butt weld Pipe Fittings
- Alloy Steel A234 WP5 90 Degree Elbow
- Cr-Mo WP5 45 Degree Elbow In Mexico
- Alloy Steel A234 WP5 180 Deg Elbow
- ASTM A234 CRMO WP5 LR Elbow
- Chrome Moly WP5 Short Radius Elbow In Philippines
- Cr-Mo WP5 3D Butt weld Elbow
- ANSI B16.9 Chromium Molybdenum WP5 5D Elbow
- Alloy Steel A234 WP5 Tee In Japan
- Cr-Mo WP5 Equal Tee
- Alloy Steel A234 WP5 Unequal Tee In Italy
- Chromium Molybdenum WP5 Butt weld Tee
- Chrome Moly WP5 Buttweld Tees
- WP5 Alloy Steel Reducing Tee
- ANSI B16.9 Alloy Steel A234 WP5 Buttweld Tee
- Alloy Steel A234 WP5 Cross In Spain
- Cr-Mo WP5 Equal Cross
- Chrome Moly WP5 Unequal Cross In Kuwait
- Alloy Steel A234 Butt weld Cross
- Chromium Molybdenum WP5 Buttweld Cross
- Alloy Steel WP5 Reducing Cross
- ANSI B16.9 Alloy Steel A234 WP5 Buttweld Cross
- AS WP5 Concentric Reducer
- Cr-Mo WP5 Concentric Reducer
- Chrome Moly WP5 Butt weld Concentric Reducer In Singapore
- CrMo A234 WP5 Concentric Reducer In Indonesia
- ANSI B16.9 Chromium Molybdenum WP5 Concentric Reducer
- AS A234 WP5 Eccentric Reducer
- Cr-Mo WP5 Eccentric Reducer In Indonesia
- WP5 Alloy Steel Butt weld Eccentric Reducer
- Alloy Steel WP5 Eccentric Reducer In Philippines
- ANSI B16.9 Alloy Steel A234 WP5 Eccentric Reducer
- Alloy Steel A234 WP5 Short Stub End
- Cr-Mo WP5 Long Stub End In Singapore
- WP5 Alloy Steel Butt weld Stub End In Italy
- Chromium Molybdenum WP5 Short Stub End
- ANSI B16.9 Alloy Steel A234 WP5 Lap Joint Stub End
- Alloy Steel A234 WP5 End Cap
- Cr-Mo WP5 Pipe Cap In Spain
- Alloy Steel A234 WP5 Butt weld Cap
- Chrome Moly WP5 End Pipe Cap In Malaysia
- ANSI B16.9 Chromium Molybdenum WP5 Pipe End Cap
- Alloy Steel A234 WP5 Nipple
- Cr-Mo WP5 Pipe Nipple In Mexico
- Chrome Moly WP5 Butt weld Nipple
- Cr-Mo WP5 Swage Nipple In Philippines
- ANSI B16.9 Chromium Molybdenum WP5 Barrel Nipple
- Alloy Steel A234 WP5 Long Radius Bend In Malaysia
- Cr-Mo WP5 Piggable Bend
- ASTM A234 CRMO WP5 Butt weld Bend
- Chrome Moly WP5 Hot Induction Bend In Spain
- ANSI B16.9 Alloy Steel A234 WP5 Bend
View Thickness Table Of Cr-Mo WP5 Buttweld Fittings, We have Global sales network for Alloy Steel A234 WP5 LR Elbow, Wide Stockist Of Alloy Steel A234 WP5 Seamless Fittings In India.
Check available Sizes of ASME SA 234 WP5 Pipe Reducer, Ask For Ready Stock of Alloy Steel WP5 Stub End in Mumbai, India.
BAGODA
Quick Contact
ASME B16.9 Alloy Steel WP5 Short and Long Radius Elbows Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
ASME B16.9 Alloy Steel A234 WP5 Tee & Cap Dimensions
| Nominal Pipe Size (inches) |
Outside Diameter |
Caps | Straight Crosses | Straight Tees | Stub Ends | |||
| (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
|
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1/2 | 21.3 | 0.840 | 1 | – | 1 | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | – | 1 1/8 | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
ASME B16.9 Alloy Steel WP5 Concentric & Eccentric Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter | Reducers | ||
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) | Concentric & Eccentric Length (inches) |
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
A234 WP5 Alloy Steel Buttweld Fittings Weights(Kg)
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Ready Stock Alloy Steel A234 WP5 Pipe Fittings
- A234 WP5 Alloy Steel Lap Joint Stub End
- Chrome Moly WP5 Pipe Fittings In Indonesia
- A234 WP5 Alloy Steel Elbow In Malaysia
- ASTM A234 Alloy Steel WP5 Pipe Fittings
- Sch 80 Alloy Steel WP5 Pipe Fittings
- Cr-Mo WP5 End Cap Distributor
- ASME SA234 WP5 Alloy Steel Lateral Tee
- Cr-Mo WP5 Barrel Nipple Supplier in Mumbai
- A234 WP5 Alloy Steel Pipe Elbow
- Alloy Steel A234 WP5 Buttweld Fittings In Mexico
- Alloy Steel WP5 Swage Nipple In Philippines
- Schedule 80 Cr-Mo WP5 Grade Long Stub End
- Chromium Molybdenum WP5 SR Elbow In Japan
- A234 WP5 Alloy Steel Equal Cross In Italy
- Cr-Mo WP5 1D Elbow/3D Elbow/5D Elbow
- Cr-Mo WP5 Eccentric Reducer
- Alloy Steel WP5 Seamless Fittings
- ASTM A234 CRMO WP5 45 Degree Elbow
- Cr-Mo WP5 Eccentric Reducer Manufacturer
- Alloy Steel A234 WP5 Welded Fittings In Kuwait
- ASME B16.9 Alloy Steel A234 WP5 Buttweld Fittings
- Alloy Steel A234 WP5 Long Stub End In Spain
- Alloy Steel A234 WP5 Reducer
- Cr-Mo WP5 Reducing Nipple
- DIN 2605 Alloy Steel WP5 Elbow Exporter
- SCH 60 WP5 Alloy Steel Pipe Nipples
- ASME B16.9 Schedule 10 A234 WP5 Alloy Steel Elbow
- Cr-Mo WP5 Two Joint Pipe Fittings In Singapore
- Alloy Steel A234 WP5 Butt Weld Pipe Fittings
- ANSI B16.9 Alloy Steel WP5 Short Stub End
- 5" Nb Sch10s CrMo WP5 90° Short Radius Elbow
- A234 WP5 Alloy Steel Pipe Fittings Manufacturer
- Alloy Steel WP5 Two Halve Butt weld Fittings In Kuwait
- ASTM A234 CRMO WP5 Buttweld Fittings
- Cr-Mo WP5 LR Elbow Stockist
- Chrome Moly WP5 Butt weld Fittings In Spain
- Chromium Molybdenum WP5 180° LR Return Bends
- Cr-Mo WP5 Long Radius Elbow
- Alloy Steel A234 WP5 Piggable Bends
- 15 NB SCH 10 CrMo WP5 90° Short Radius Elbow
- ANSI B16.9 Alloy Steel A234 WP5 Pipe Cap
- Alloy Steel WP5 Long Radius Bend Stockholder
- A234 WP5 Alloy Steel Butt weld Tee In Italy
- A234 WP5 Alloy Steel Buttweld Nipple In Japan
- ASTM A234 CRMO WP5 Stub End In Philippines
- 1/2” - 16” ASTM A234 CRMO WP5 Butt weld Elbow
- Alloy Steel A234 WP5 Pipe Bend In Mexico
- Alloy Steel WP5 Mandrel Pipe Bend In Malaysia
Alloy Steel A234 WP5 Butt weld Fittings Chemical Composition
| Grade | C | Mn | Si | S | P | Cr | Mo |
|---|---|---|---|---|---|---|---|
| A234 WP5 | ≤0.15 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 |
A234 WP5 Alloy Steel Pipe Fittings Mechanical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
|---|---|---|---|
| A234 WP5 | 415 – 585 | ≥205 | ≥20 |
